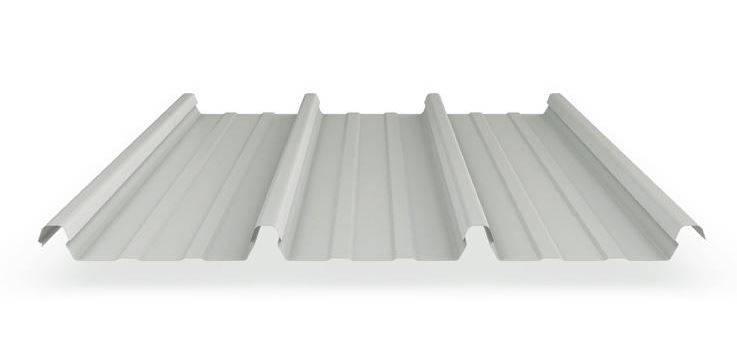

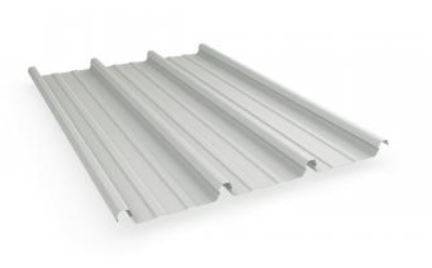

LYSAGHT KLIP-LOK 700 CLASSIC® (COLORBOND® Steel & ZINCALUME® Steel)

Name: LYSAGHT KLIP-LOK 700 CLASSIC® (COLORBOND® Steel & ZINCALUME® Steel)
Brand: Lysaght
SKU: 25QMtNDDd7RfXfPmgTR1gh

Verified by manufacturer over a year ago

ZINCALUME®

Lysaght

A concealed fixed roofing and walling profile with strong, bold rib rising from wide, fluted pans.

Jump to:

+61 1800 800 789 Website

Application

Suitable application for prestige commercial residential and other architectural projects.
Applicable for roofing and wall installation.
Can be used with LOK-KLIP® end and expansion joint system.

AUSTRALIAN STANDARDS

Published load capacity data is derived from testing in accordance with:

AS 4040.0 – 1992
AS 4040.1 – 1992
AS 4040.2 – 1992
AS 4040.3:2018

Published Limit state capacities are suitable to determine structural adequacy and serviceability in accordance with:

AS/NZS 1170.0:2002 Structural design actions, Part 0: General principles –
AS/NZS 1170.1:2002 (Reconfirmed 2016) Structural design actions, Part 1: Permanent, imposed and other actions –
AS/NZS 1170.2:2011 (Reconfirmed 2016) Structural design actions, Part 2: Wind actions –
AS/NZS 1170.3:2011 (Reconfirmed 2016) Structural design actions, Part 3: Snow and ice actions.

Published installation guidelines align with AS 1562.1:2018 Design and Installation of sheet and wall cladding

Lysaght steel products comply with:

AS 1397-2011 Continuous hot-dip metallic coated steel sheet and strip - Coatings of zinc and zinc alloyed with aluminium and magnesium –
AS/NZS 2728:2013 Prefinished/prepainted sheet metal products for interior/exterior building applications - Performance requirements –
AS 1397-2011 which defines the coating types and classes and steel grades for hot dip metallic coated steel.

Description

Klip-Lok 700 Classic® is a roof and walling profile with a strong rib making a bold statement rising from flat pans with longitudinal fluting offering long, straight line with an uninterrupted clean finish. Some of its significant features include:

Strong ribs for excellent spanning capacity.
Clips permit thermal expansion of long, straight runs.
Concealed fixing system offering supreme water-tightness.
Minimum roof slope at 1°.

Only available in WA & SA.

General information

Material	COLORBOND® Steel. ZINCALUME® Steel.
Size	700 mm (cover width).
Warranty description	- Manufacturer guidance Covered by BlueScope material performance warranties.

Uniclass	Pr_25_71_51_89 Steel profiled sheetPrimary
SpecPack	07600 Metal Roofing, Siding and Roof Plumbing
SpeedSpec	07610 Roofing and Roof Plumbing 07462 Cladding External Walls
NATSPEC National Classification System	0431 Cladding - Combined 0436 Cladding – Profiled and Seamed Sheet Metal 0421 Roofing - Combined 0423 Roofing – Profiled Sheet Metal

Specification data - Steel profiled sheet

Standards	To AS 1397:2011 and AS/NZS 2728:2013.
Grade	G550.
Coating class	AM125.
Base Metal thickness (BMT)	0.42. 0.48.
Profile	-
Form	Bold rib, flat pan with overlap and underlap edge profile.
Height	40 mm.
Cover width	700 mm. Guidance for specification option: Width tolerance: +4 mm, -4 mm.
Colour	- Manufacturer guidance Available in unpainted steel range. Check with the manufacturer.
Finish	Zincalume® steel.
Solar absorptance value (maximum)	- Manufacturer guidance Solar absorptance values vary depending on the COLORBOND® steel colour of choice. To check with the manufacturer.

Length	- Manufacturer guidance Length tolerance: + 0mm, – 15mm. Sheets are supplied custom cut to length to suit project requirements. Transportation limits apply. Check with the local manufacturer for availability.

Sustainability data

Country of material origin	Australia
Country of product manufacture	Australia
Recyclability	Fully recyclable.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	20 %
