Neo-Roman™ Non-Cyclonic (COLORBOND® Steel)
Verified by manufacturer over a year ago
COLORBOND® Steel
COLORBOND® Steel

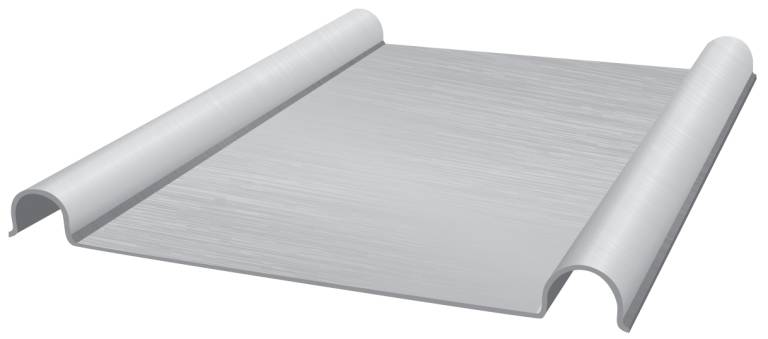

Steel roofing and walling profile designed after the ancient Roman roofing tiles.
Application

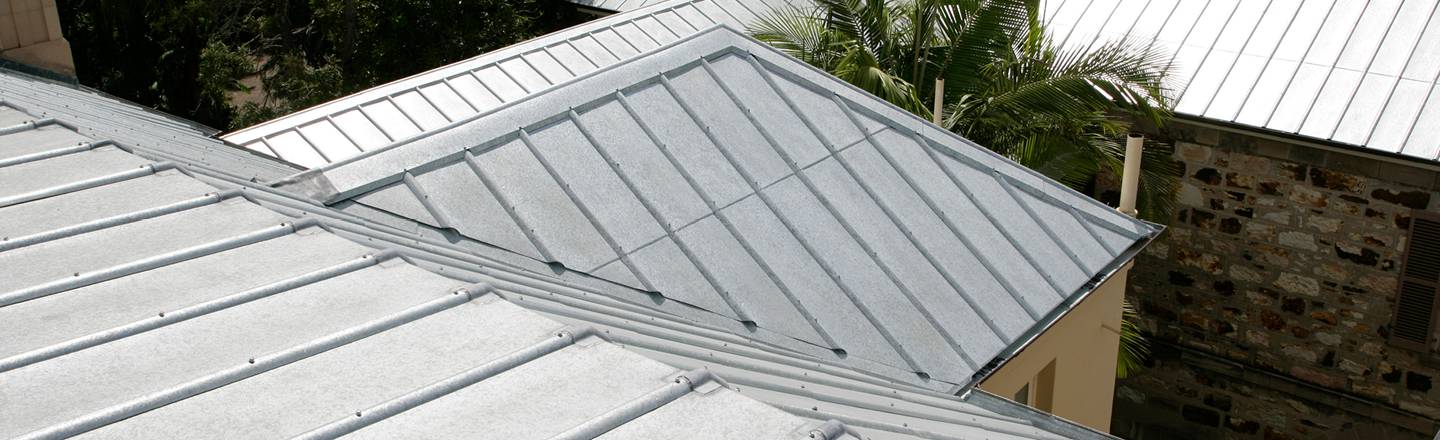

Suitable for roofing and walling applications.
AUSTRALIAN STANDARDS
Published load capacity data is derived from testing in accordance with:
- AS 4040.0:1992.
- AS 4040.1:1992.
- AS 4040.2:1992.
- AS 4040.3:2018.
Published Limit state capacities are suitable to determine structural adequacy and serviceability in accordance with:
- AS/NZS 1170.0:2002 Structural design actions, Part 0: General principles.
- AS/NZS 1170.1:2002 (Reconfirmed 2016) Structural design actions, Part 1: Permanent, imposed and other actions.
- AS/NZS 1170.2:2011 (Reconfirmed 2016) Structural design actions, Part 2: Wind actions.
- AS/NZS 1170.3:2011 (Reconfirmed 2016) Structural design actions, Part 3: Snow and ice actions.
Published installation guidelines align with AS 1562.1:2018 Design and Installation of sheet and wall cladding.
Fielders steel products comply with:
- AS 1397:2011 Continuous hot-dip metallic coated steel sheet and strip - Coatings of zinc and zinc alloyed with aluminium and magnesium.
- AS/NZS 2728:2013 Prefinished/prepainted sheet metal products for interior/exterior building applications - Performance requirements.
- AS 1397:2011 which defines the coating types and classes and steel grades for hot dip metallic coated steel.
Description
Neo-Roman™ utilizes the ancient Roman roofing profile to create aesthetically pleasing and functional roofing solutions. Some of its features include:
- Aesthetic and functional.
- Available in a wide range of materials.
- Available in single or double rib.
- Can be installed to a minimum pitch of 5°.
- Suitable for installation on ply substrate.
General information
Material | Steel. |
Shape | Rectangle |
Warranty description | Manufacturer guidanceCovered by BlueScope material warranties, subject to project assessment and terms and conditions. |
Uniclass | |
SpeedSpec | 07610 Roofing and Roof Plumbing 07462 Cladding External Walls |
NATSPEC National Classification System | 0436 Cladding – Profiled and Seamed Sheet Metal 0423 Roofing – Profiled Sheet Metal |
SpecPack | 07600 Metal Roofing, Siding and Roof Plumbing |
Specification data - Carbon steel sheets
Standards | To AS 1397, AS/NZS 1365 and AS/NZS 2728.Guidance for specification option: Installation of the cladding should be in accordance with AS 1562.1 and HB 39. |
Structural grade | G300. |
Coating | |
Class | AM100. |
Size | |
Length | Manufacturer guidanceSheets are supplied custom cut to length to suit project requirements. Transportation limits apply. Available in varying lengths, with the maximum sheet length being 4000 mm. Provide manufacturing tolerance of ±7 mm. |
Width | 275 mm.475 mm.Guidance for specification option: Recommended for walling applications only. Manufacturer guidanceRefers to profile width and coverage. Provide manufacturing tolerance of ±4 mm. |
Thickness | 0.55 mm.Guidance for specification option: Total Coated Thickness of 0.60 mm. 0.75 mm.Guidance for specification option: Total Coated Thickness of 0.80 mm. Manufacturer guidanceRefers to Base Metal Thickness or BMT. Indicated Total Coated Thickness (TCT) is based on standard COLORBOND®, single-sided material. |
Finish | |
Applied | Painted. |
Colour | Basalt. Classic Cream. Cottage Green. Cove. Deep Ocean. |
Material/ Finish | COLORBOND® steel. |
Profile | Double Rib. Guidance for specification option: Available on request, minimum quantities apply. Single Rib. Manufacturer guidanceRib is 25 mm high. |
Thermal expansion | 2.9 mm average per 5.0 m. Manufacturer guidanceComputed at 50° C change. |
Frame or support | Plywood. Guidance for specification option: For roofing, plywood should be 19 mm F11 Structural CD grade, to be supported at 600 mm centres maximum. For walling, use 15 mm F11 Structural CD grade plywood. Affix with 14g-10 x 50 mm Hex Head Type 17 screws spaced at 600 mm centres maximum. Steel Batten (for walling applications only). Guidance for specification option: A ply substrate is not needed if the 275 mm cover is utilised. However, batten spacing should not exceed 600 mm. Install with Neo-Roman™ Bracket. Affix with 14g-10 x 50 mm Hex Head Type 17 screws spaced at 600 mm centres maximum. Combine with 4.8 mm rivets installed at both sides. Manufacturer guidanceRefers to recommended substrate and fasteners if product is to be installed without insulation. |
Insulation | Manufacturer guidanceWhen insulation thickness up to 50 mm are installed, screws may need to be increased in number depending on insulation thickness and density. When insulation is required, Fielders® recommends the use of a thermal spacer. |
Installation | Pierced-fixed (Double Rib profile). Bracket (Single Rib profile). Guidance for specification option: Bracket is 24 mm W x 15 mm H, made from 1.00 mm BMT Galvanised steel. |
Sustainability data
Country of material origin | Australia |
Country of product manufacture | Australia |
Recyclability | 100% Recyclable. |
