TOPSPAN® 96
Verified by manufacturer over a year ago
96mm Steel roof purlin or wall girt. Available in QLD.
Application
Suitable for residential and rural market applications. Other applications include:
- Sheds.
- Residential garages and awnings.
Available in QLD.
Description

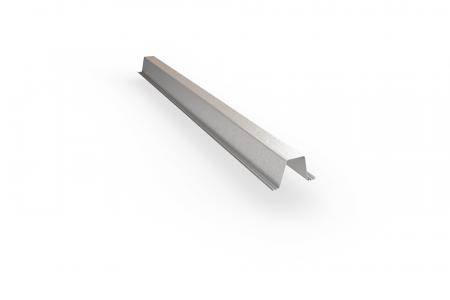

TOPSPAN® 96 is a 96 mm deep profile used as a roof purlin or wall girt. It is commonly used in lieu of the traditional Cee and Zed purlins and is conveniently sized to be between the TOPSPAN® 61 and TOPSPAN® 120. Some of its features include:
- Two longitudinal stiffeners or grooves at bottom flanges for improved performance.
- High strength, lightweight and will not shrink, warp or twist.
- Can be mounted directly onto rafters or against columns without the use of cleats or bolts.
General information
Finish | ZINCALUME® steel |
Material | Steel. Manufacturer guidanceZINCALUME® steel. |
Width | 117 mm |
Height | 96 mm |
Warranty description | Manufacturer guidanceCovered by BlueScope material warranties. Terms and limitations apply. |
Uniclass | |
NATSPEC National Classification System | 0342 Light Steel Framing |
SpecPack | 05400 Cold-Formed Metal Framing |
SpeedSpec | 05400 Cold Formed Metal Framing |
Specification data - Metal furring channels
Material | ZINCALUME® steel. |
Section | Top hat. |
Size | 117 mm (width) x 96 mm (height). |
Finish | Aluminium-coated to AS 1397. |
Corrosion resistance | AM125. Manufacturer guidanceRefers to coating class for corrosion protection. |
Grade | G550. Manufacturer guidanceRefers to steel grade. |
Thickness | 0.75 mm. Guidance for specification option: TS9675. 1.00 mm. Guidance for specification option: TS9610. 1.20 mm. Guidance for specification option: TS9612. |
Length | Manufacturer guidanceIndicate batten length. |
Support fasteners | 1.0 mm (G550) steel support, M6.5-12 x 30 hex head. 1.2 mm (G500) steel support, No. 14-10 x 25 hex head. 1.5 mm (G450) steel support, No. 14-10 x 25 hex head. 1.9 mm (G450) steel support, No. 14-10 x 25 hex head. Hardwood, M5.5-11 x 40 BATTENZIPS. |
Sustainability data
Country of product manufacture | Australia |
