Evelyn Grace Academy, Brixton, London

OVERVIEW

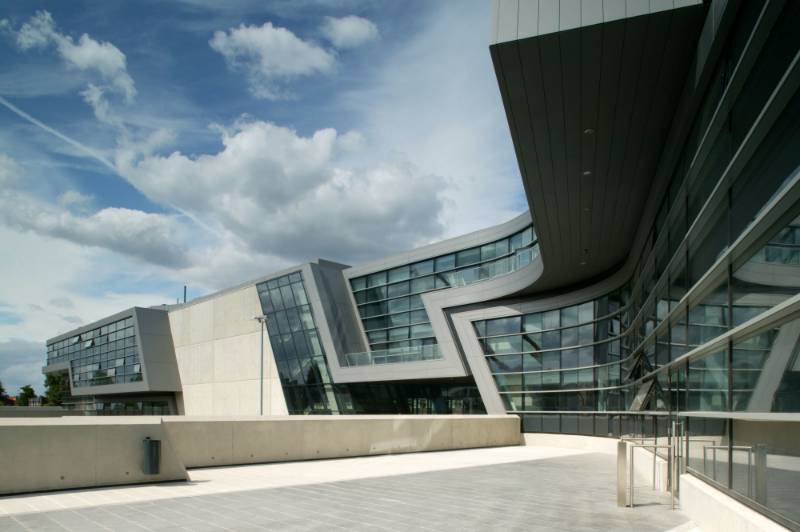

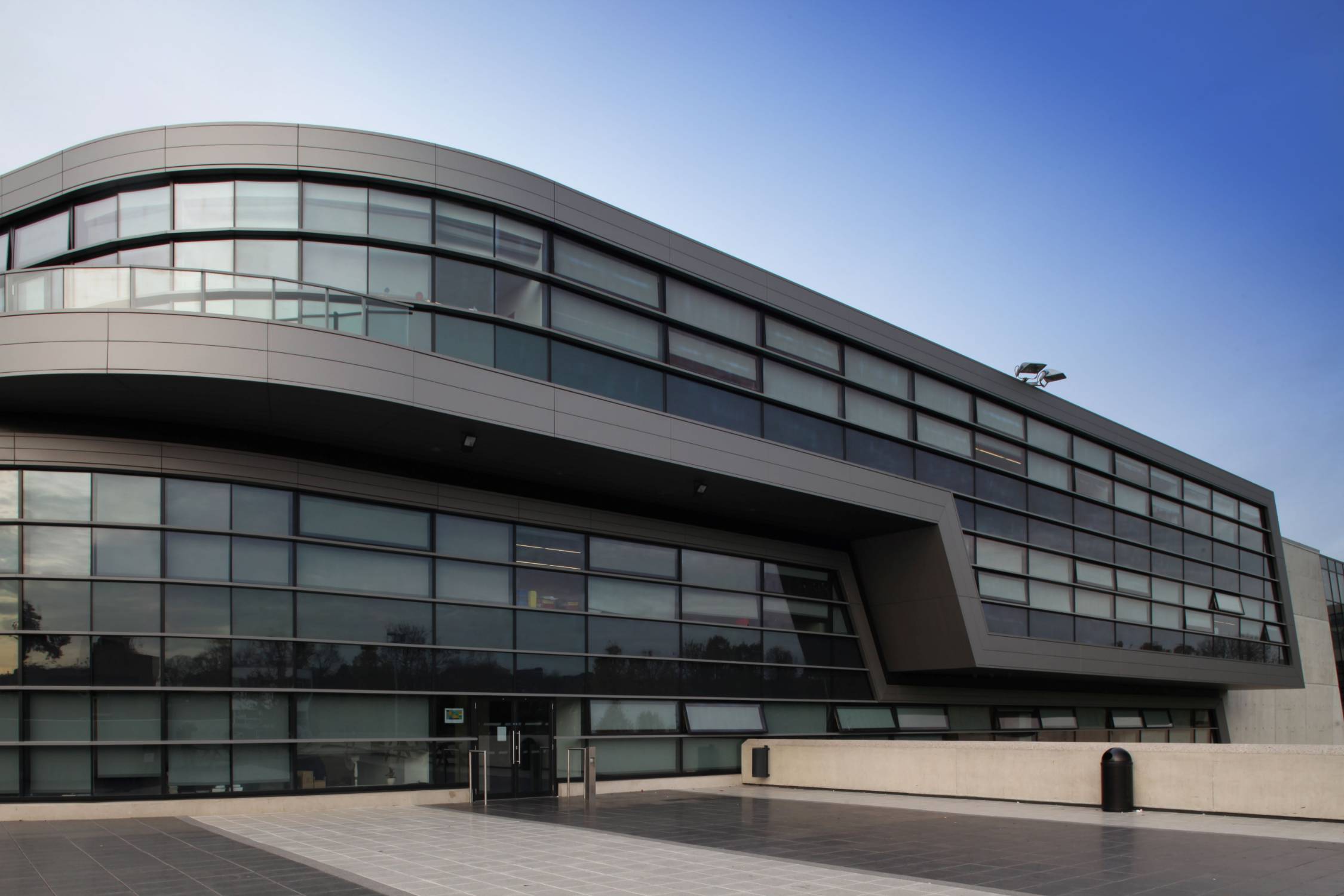

RIBA STIRLING PRIZE WINNER, Evelyn Grace Academy in Brixton South London, benefits from the flowing façade integrating seamlessly with Sotech's Optima IPC Cladding.


The external facades of the academy, designed by award wining architect Zaha Hadid, feature flying angles and oblique lines and, to maximise external space the building bridges, a full-length running track. The internal design generates natural patterns of division within highly functional spaces to create four small schools within the whole, each with its own identity


In addition to partnering with the specialist contractor McMullen to identify the optimum solution for the fixing components, a scaled mock-up incorporating the Sotech Optima IPC interlocking plank system, finished to the specification required, was built on site incorporating two sections of the building integrated into the glazed curtain wall. This level of detailing provided the contractor and the architect with the reassurance that the rainscreen system, and the specified colour and finish, would meet the performance and design requirements of the project.


The Optima IPC system has been independently tested by Vinci, including both horizontal and vertical planks in the material and finish specified for the Evelyn Grace Academy together with a number of other finishes including copper, aluminium and zinc. Achieving 2Kn serviceable load, the system successfully met the rigorous test requirements.


The specification of the highly engineered Optima IPC for the £37.5 million Academy resulted in the bespoke manufacture of each panel, many incorporating complicated angles and tapered corners in two directions, each with a 5mm shadowgap and secret fix joint. Curved soffits and cills completed the package, which totalled in excess of 1500sqm of Optima IPC.


Products featured in this case study

View all products (8)
Optima IPC Interlocking Wall-Plank

Optima IPC Interlocking Wall-Plank

More inspiration from Sotech Ltd

View inspiration

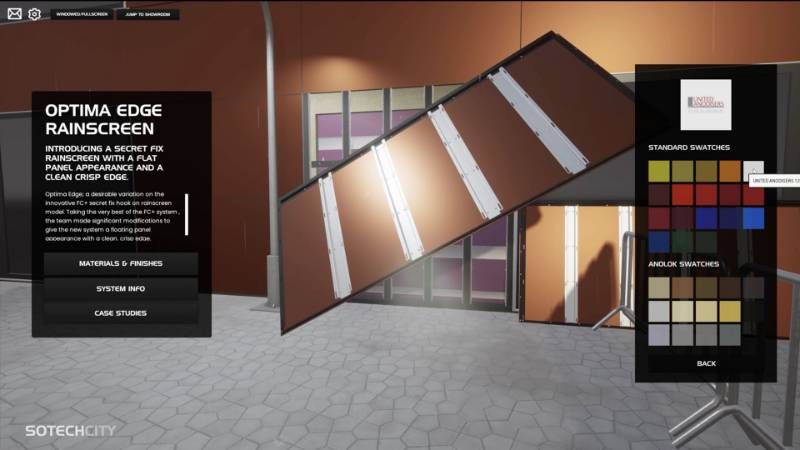

Sotech City, A virtual World for Architects and Designers

Sotech City, A virtual World for Architects and Designers

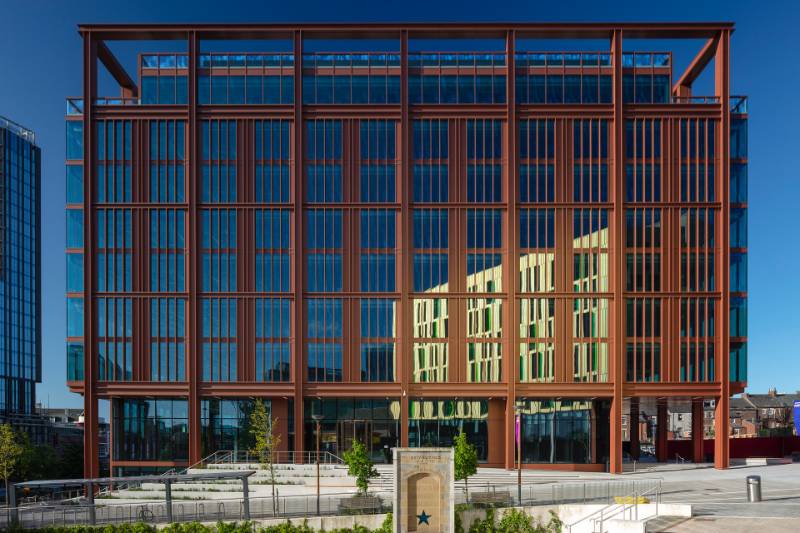

The Lumin, Newcastle

The Lumin, Newcastle

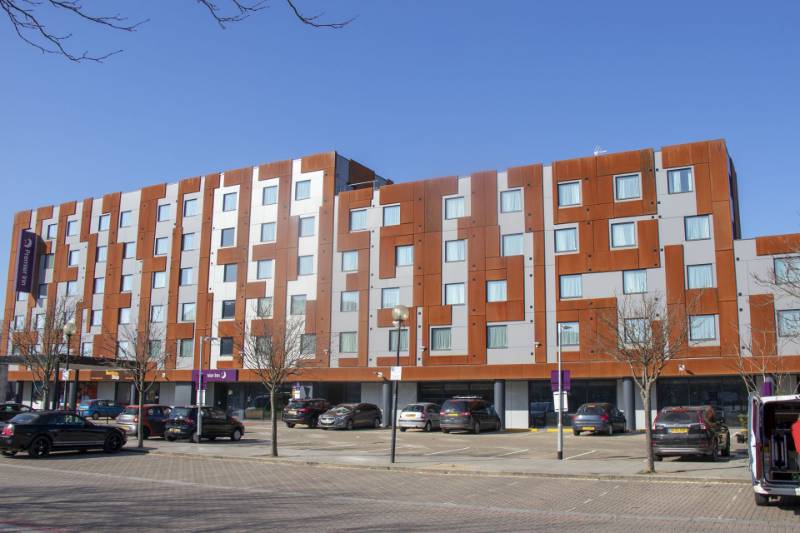

Premier Inn, Milton Keynes
