Cylinders and buffer vessels - BIM objects
Find and specify cylinders and buffer vessels from top manufacturers with NBS Source. Browse 5 free BIM objects and Revit families that are ready to use on your projects. Classification Pr_60_50_20.
Can't find what you're looking for?
Recently verified
Showing 1-5 of 5

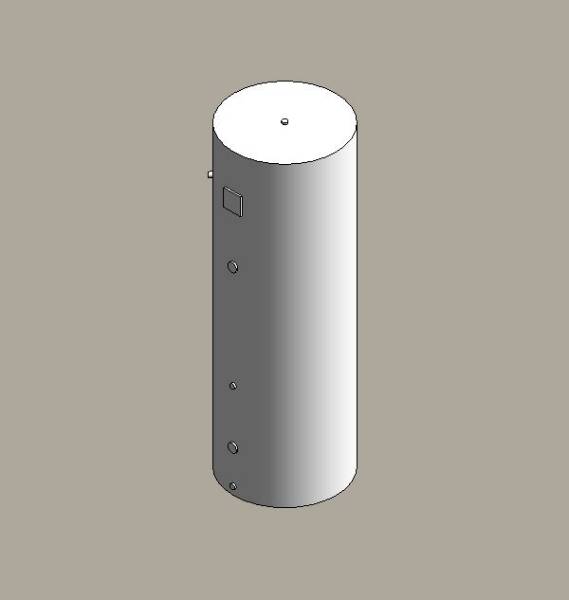

Indirectly heated unvented hot water storage
Verified 10 months ago
NBS
Indirectly heated, unvented hot water storage unit with parametric values for height, cylinder diameter, connection sizes and clearance zones to facilitate installation and maintenance.

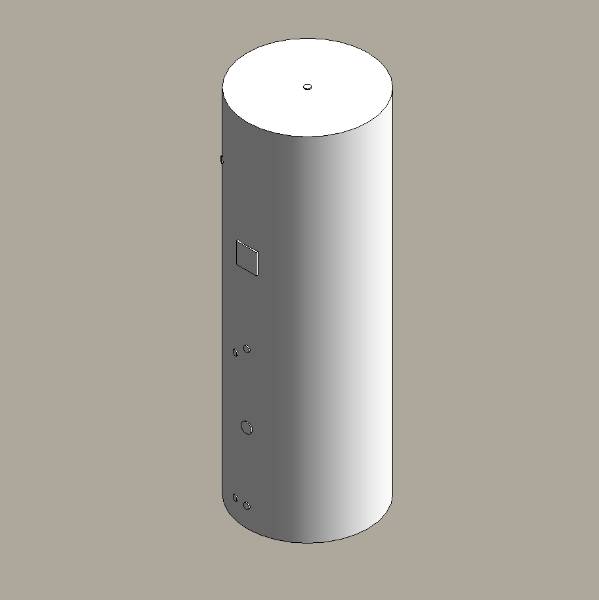

Dual coil hot water storage cylinder
Verified 10 months ago
NBS
Dual coil hot water storage cylinder, with parametric values for height, diameter, connections and clearance zones to facilitate installation and maintenance.

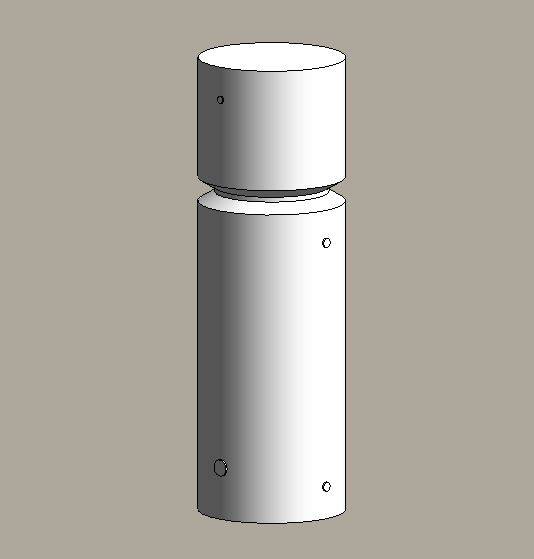

Direct insulated combination units
Verified 10 months ago
NBS
Direct insulated combination unit with parametric values for pipework connections, diameter, height of cold water storage cistern and hot water store, and clearance zones to facilitate installation and maintenance.
Double feed indirect insulated combination units
Verified 10 months ago
NBS
Double feed, indirect insulated combination unit with parametric values for pipework connections, diameter, and height of cold water storage cistern and hot water store and clearance zones to facilitate installation and maintenance.
Direct hot water storage cylinders
Verified 10 months ago
NBS
Direct hot water storage cylinder with parametric values for pipework connections, cylinder height and diameter, and clearance zones to facilitate installation and maintenance.
Showing 1-5 of 5
