Structural products - BIM objects
Structural products includes a range of products providing structural support such as beams, columns, lintels, structs, props, etc. Browse BIM objects and Revit families for Structural products below.
Can't find what you're looking for?
Recently verified
Showing 325-344 of 344
Cellcore HX B
Verified 7 months ago
Cordek Ltd
Collapsible void former for use under reinforced concrete ground beams and pile caps. The product has a number of variables including panel width, depth and loading characteristics.

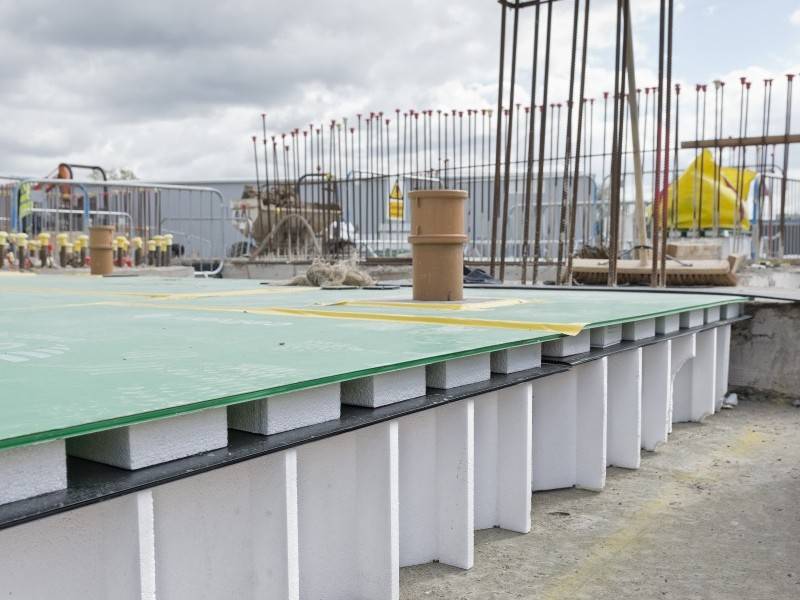

Cellvent HX
Verified 7 months ago
Cordek Ltd
Collapsible void former with passive venting capabilities for use under reinforced concrete floor slabs. The product has a number of variables including depth and loading characteristics.
Cellcore HX S
Verified 7 months ago
Cordek Ltd
Collapsible void former for use under reinforced concrete floor slabs. The product has a number of variables including panel depth and loading characteristics.
DecoFrame Kit Blade Canopy - Floating Ceiling Suspension Kit
Verified 7 months ago
Zentia
Floating ceiling suspension kit.
GDECK GT12 EPS - Thermal Floor System
Verified 8 months ago
Moulded Foams
Expanded polystyrene (EPS) thermally efficient sustainable flooring system.
GDECK GT15 EPS - Thermal Floor System
Verified 8 months ago
Moulded Foams
Expanded polystyrene (EPS) thermally efficient sustainable flooring system.
GDECK GT11 EPS - Thermal Floor System
Verified 8 months ago
Moulded Foams
Expanded polystyrene (EPS) thermally efficient sustainable flooring system.
GDECK GT09 EPS - Thermal Floor System
Verified 8 months ago
Moulded Foams
Expanded polystyrene (EPS) sustainable flooring system.
Ancon SDB Frame Cramp - 2D Detail
Verified 8 months ago
Leviat
Stainless steel wall tie for connecting masonry to in-situ structures.
Ancon Two-Part Tie - 2D Detail
Verified 8 months ago
Leviat
Two-part wall tie.
Ancon Shearfix Stud Rail
Verified 8 months ago
Leviat
Double-headed steel studs, welded to flat steel rails, positioned around a column head/ base.

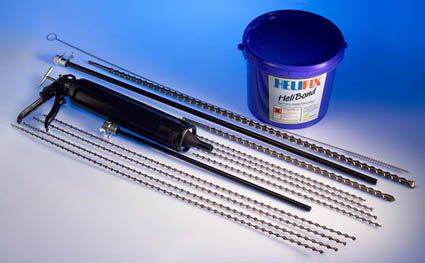

Helifix CemTie
Verified 8 months ago
Leviat
A fully grouted system using helical, stainless steel ties injected into predrilled clearance holes.

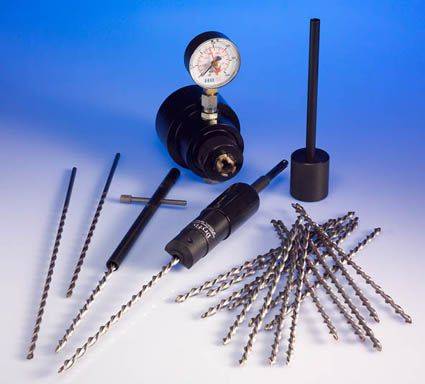

Helifix DryFix
Verified 8 months ago
Leviat
A dry mechanical, pinning and remedial tying system, using helical, stainless steel, self-tapping ties.
Helifix TurboTie
Verified 8 months ago
Leviat
New build cavity wall tie for Aircrete masonry construction.
Ancon Teplo2 Wall Tie - 2D Detail
Verified 8 months ago
Leviat
Low thermal conductivity, basalt fibre, general purpose Type 2 TeploTie wall tie.
Ancon SPB Frame Cramp - 2D Detail
Verified 8 months ago
Leviat
A plain-ended tie for connecting masonry to in-situ structures.
Carboplate - Pultruded Carbon Fibre Plates
Verified 8 months ago
Mapei (UK) Ltd
Pultruded carbon fibre plates pre-impregnated in epoxy-based resin, protected by a double film of plastic.
S4 - Lintels - Fire-rated Lintels
Verified over a year ago
Naylor Concrete Products Ltd
Pre-stressed lintels ensuring optimum performance and 30 minutes fire rating as standard.
R6 - Lintels
Verified over a year ago
Naylor Concrete Products Ltd
Pre-stressed lintels ensuring optimum performance and 30 minutes fire rating as standard.
Fire R2 [60 minutes] - Lintels
Verified over a year ago
Naylor Concrete Products Ltd
Pre-stressed lintels ensuring optimum performance with enhanced fire resistance.
Showing 325-344 of 344
