Gypsum board wall lining systems
Find and specify gypsum board wall lining systems from top manufacturers with NBS Source. Browse 182 products that are ready to use on your projects. Classification Ss_25_25_45_35.
Can't find what you're looking for?
Industry averages:BETA
Recently verified
Showing 1-36 of 182
ReductoClip Independent Wall System
Verified 12 hours ago
Soundproofing Store
Wall soundproofing system. A slim, high performing soundproofing solution, designed to pass Part E Building Regulations in domestic and commercial buildings.
ReductoClip Direct To Stud Wall System
Verified 12 hours ago
Soundproofing Store
Stud wall soundproofing system. For internal stud partition walls. Designed to pass Part E Building Regulations.
ReductoClip Direct To Masonry Wall System
Verified 12 hours ago
Soundproofing Store
Wall soundproofing system. A slim, high performing direct to wall system. Designed to pass Part E Building Regulations in domestic and commercial settings.
GypLyner Independent - B216005 (B) (EN)
Verified 17 days ago
British Gypsum

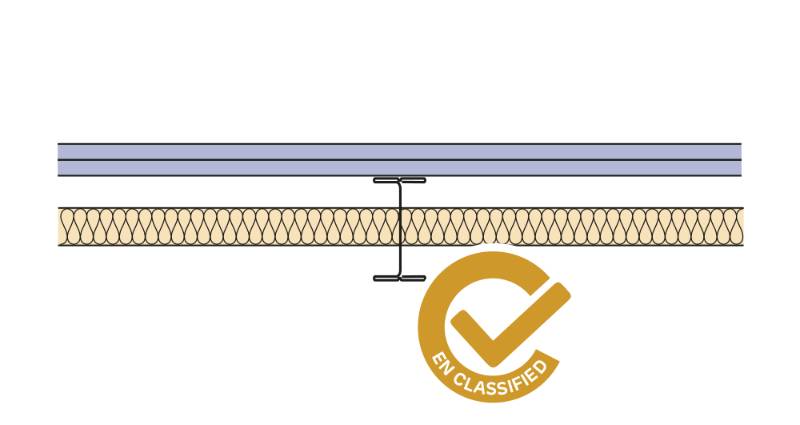

Two layers of Gyproc SoundBloc 12.5mm to one side of Gypframe 60 I 50 ‘I’ Stud framework with 50mm Isover Steel Frame Infill Batts between studs forming an independent lining to structural steel columns, in association with external steel cladding (0.6mm). For heights up to 3000mm.
GypLyner Independent - B216004 (F) (EN)
Verified 17 days ago
British Gypsum
Two layers of Gyproc WallBoard 15mm to one side of Gypframe 146 I 80 ‘I’ Stud framework with 50mm Isover Steel Frame Infill Batts between studs forming an independent lining to structural steel columns, in association with external steel cladding (0.6mm). For heights up to 4000mm.
GypLyner Independent - GIWL 92 I 90 PIR (A) (EN)
Verified 17 days ago
British Gypsum
One layer of Gyproc ThermaLine PIR 38mm to one side of Gypframe 92 I 90 ‘I’ Stud framework forming an independent lining to masonry background. For heights up to 4200mm.
GypLyner Independent - B216028 (B) (EN)
Verified 17 days ago
British Gypsum
Two layers of Gyproc FireLine 15mm to one side of Gypframe 60 I 50 ‘I’ Stud framework with 50mm Isover Steel Frame Infill Batts between studs forming an independent lining to structural steel columns, in association with external steel cladding (0.6mm). For heights up to 3300mm.
GypLyner Single - B226010 (EN)
Verified 17 days ago
British Gypsum
103mm solid brick wall of density 1700 kg/m³ with 13mm plaster each side and Gypframe GL1 Lining Channel framework fixed to both sides to give 35mm cavities with 25mm Isover Acoustic Partition Roll (APR 1200) in the cavities clad with one layer of Gyproc SoundBloc 12.5mm.
GypLyner Independent - B216005 (D) (EN)
Verified 17 days ago
British Gypsum
Two layers of Gyproc SoundBloc 12.5mm to one side of Gypframe 70 I 70 ‘I’ Stud framework with 50mm Isover Steel Frame Infill Batts between studs forming an independent lining to structural steel columns, in association with external steel cladding (0.6mm). For heights up to 4000mm.
DriLyner Dab - TL-PIR (E) (EN)
Verified 17 days ago
British Gypsum

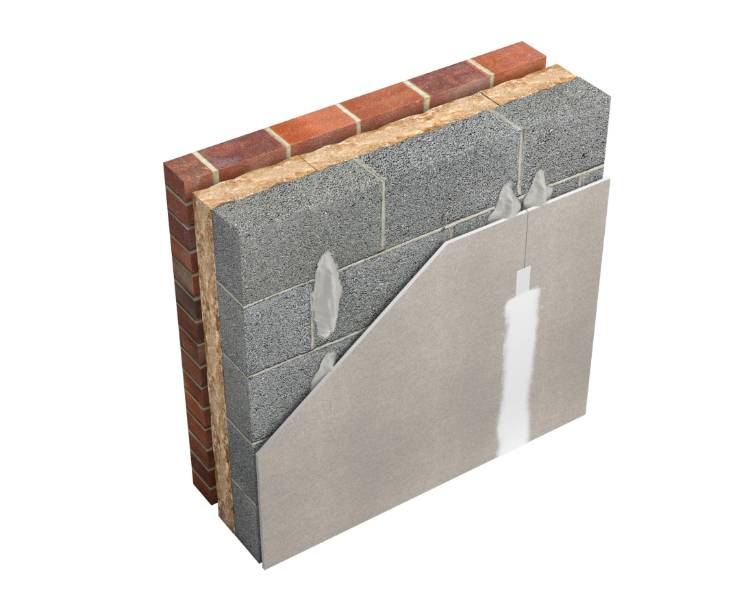

One layer of Gyproc ThermaLine PIR 93mm on Gyproc DriWall Adhesive dabs (10mm nominal cavity) on solid masonry background
GypLyner Single - B226005 (EN)
Verified 17 days ago
British Gypsum
100mm solid block wall of density 1700 kg/m³ with 13mm plaster each side and Gypframe GL1 Lining Channel framework fixed to one side to give 85mm cavity with 50mm Isover Acoustic Partition Roll (APR 1200) in the cavity clad with two layers of Gyproc SoundBloc 12.5mm.

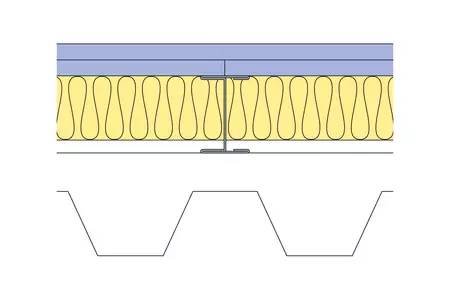

GypLyner Independent - B216006 (C) (EN)
Verified 17 days ago
British Gypsum
Two layers of Gyproc SoundBloc 15mm to one side of Gypframe 60 I 70 ‘I’ Stud framework with 50mm Isover Steel Frame Infill Batts between studs forming an independent lining to structural steel columns, in association with external steel cladding (0.6mm). For heights up to 3900mm.
DriLyner Dab - TL-PLUS (D) (EN)
Verified 17 days ago
British Gypsum
One layer of Gyproc ThermaLine Plus 48mm on Gyproc DriWall Adhesive dabs (10mm nominal cavity) on solid masonry background
GypLyner Independent - B216004 (B) (EN)
Verified 17 days ago
British Gypsum
Two layers of Gyproc WallBoard 15mm to one side of Gypframe 60 I 50 ‘I’ Stud framework with 50mm Isover Steel Frame Infill Batts between studs forming an independent lining to structural steel columns, in association with external steel cladding (0.6mm). For heights up to 3300mm.
GypLyner Single - TL-Universal (B) (EN)
Verified 17 days ago
British Gypsum

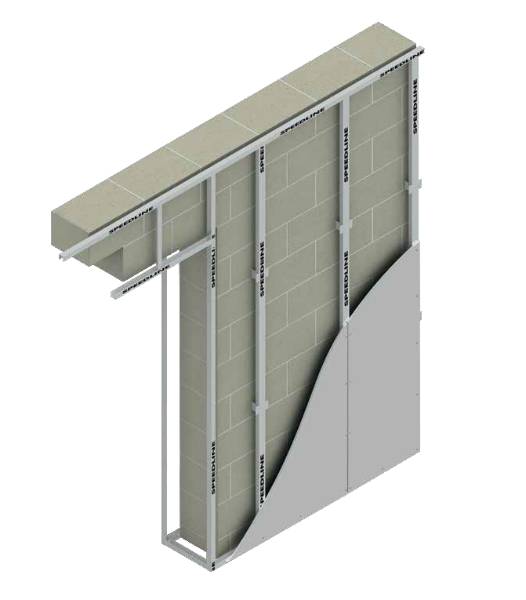

Solid masonry background with Gypframe GL1 Lining Channel framework fixed to one side with a cavity between 25mm to 125mm clad with one layer of Gyproc ThermaLine PIR 53mm
GypLyner Independent - B216003 (B) (EN)
Verified 17 days ago
British Gypsum
Two layers of Gyproc WallBoard 12.5mm to one side of Gypframe 60 I 50 ‘I’ Stud framework with 50mm Isover Steel Frame Infill Batts between studs forming an independent lining to structural steel columns, in association with external steel cladding (0.6mm). For heights up to 3000mm.
GypLyner Independent - GIWL 60 I 50 PIR (C) (EN)
Verified 17 days ago
British Gypsum
One layer of Gyproc ThermaLine PIR 63mm to one side of Gypframe 60 I 50 ‘I’ Stud framework forming an independent lining to masonry background. For heights up to 2400mm.
DriLyner Dab - TL-PLUS (C) (EN)
Verified 17 days ago
British Gypsum
One layer of Gyproc ThermaLine Plus 40mm on Gyproc DriWall Adhesive dabs (10mm nominal cavity) on solid masonry background
GypLyner Independent - GIWL 48 I 50 PIR (B) (EN)
Verified 17 days ago
British Gypsum
One layer of Gyproc ThermaLine PIR 53mm to one side of Gypframe 48 I 50 ‘I’ Stud framework forming an independent lining to masonry background. For heights up to 2400mm.
GypLyner Independent - B216006 (D) (EN)
Verified 17 days ago
British Gypsum
Two layers of Gyproc SoundBloc 15mm to one side of Gypframe 70 I 70 ‘I’ Stud framework with 50mm Isover Steel Frame Infill Batts between studs forming an independent lining to structural steel columns, in association with external steel cladding (0.6mm). For heights up to 4000mm.
DriLyner Fix - MF (C) (EN)
Verified 17 days ago
British Gypsum
One layer of Gyproc WallBoard 15mm fixed to Gypframe MF10 Channel on Gyproc DriWall Adhesive dabs (20mm nominal cavity) on solid masonry background
GypLyner Single - B226008 (B) (EN)
Verified 17 days ago
British Gypsum
100mm solid block wall of density 1700 kg/m³ with 13mm plaster each side and Gypframe GL1 Lining Channel framework fixed to one side to give 35mm cavity with 25mm Isover Acoustic Partition Roll (APR 1200) in the cavity clad with one layer of Gyproc SoundBloc 12.5mm.
DriLyner Dab - BASIC (A) (EN)
Verified 17 days ago
British Gypsum
One layer of Gyproc WallBoard 9.5mm on Gyproc DriWall Adhesive dabs (10mm nominal cavity) on solid masonry background
GypLyner Independent - B216026 (E) (EN)
Verified 17 days ago
British Gypsum
One layer of Gyproc FireLine 15mm to one side of Gypframe 92 I 90 ‘I’ Stud framework with 50mm Isover Steel Frame Infill Batts between studs forming an independent lining to structural steel columns, in association with external steel cladding (0.6mm). For heights up to 4000mm.
DriLyner Dab - BASIC (D) (EN)
Verified 17 days ago
British Gypsum
One layer of Gyproc WallBoard Ten 12.5mm on Gyproc DriWall Adhesive dabs (10mm nominal cavity) on solid masonry background
GypLyner Independent - B216028 (D) (EN)
Verified 17 days ago
British Gypsum
Two layers of Gyproc FireLine 15mm to one side of Gypframe 70 I 70 ‘I’ Stud framework with 50mm Isover Steel Frame Infill Batts between studs forming an independent lining to structural steel columns, in association with external steel cladding (0.6mm). For heights up to 4000mm.
GypLyner Independent - GIWL 60 I 50 PIR (B) (EN)
Verified 17 days ago
British Gypsum
One layer of Gyproc ThermaLine PIR 53mm to one side of Gypframe 60 I 50 ‘I’ Stud framework forming an independent lining to masonry background. For heights up to 2400mm.
GypLyner Independent - GIWL 70 I 70 PIR (EN)
Verified 17 days ago
British Gypsum
One layer of Gyproc ThermaLine PIR 38mm to one side of Gypframe 70 I 70 ‘I’ Stud framework forming an independent lining to masonry background. For heights up to 3600mm.
GypLyner Independent - B216004 (E) (EN)
Verified 17 days ago
British Gypsum
Two layers of Gyproc WallBoard 15mm to one side of Gypframe 92 I 90 ‘I’ Stud framework with 50mm Isover Steel Frame Infill Batts between studs forming an independent lining to structural steel columns, in association with external steel cladding (0.6mm). For heights up to 4000mm.
DriLyner Dab - TL-BASIC (A) (EN)
Verified 17 days ago
British Gypsum
One layer of Gyproc ThermaLine Basic 22mm on Gyproc DriWall Adhesive dabs (10mm nominal cavity) on solid masonry background
GypLyner Single - B226008 (A) (EN)
Verified 17 days ago
British Gypsum
103mm solid brick wall of density 1700 kg/m³ with 13mm plaster each side and Gypframe GL1 Lining Channel framework fixed to one side to give 35mm cavity with 25mm Isover Acoustic Partition Roll (APR 1200) in the cavity clad with one layer of Gyproc SoundBloc 12.5mm.
GypLyner Independent - B216003 (C) (EN)
Verified 17 days ago
British Gypsum
Two layers of Gyproc WallBoard 12.5mm to one side of Gypframe 60 I 70 ‘I’ Stud framework with 50mm Isover Steel Frame Infill Batts between studs forming an independent lining to structural steel columns, in association with external steel cladding (0.6mm). For heights up to 3600mm.
DriLyner Dab - BASIC (F) (EN)
Verified 17 days ago
British Gypsum
One layer of Gyproc WallBoard 15mm on Gyproc DriWall Adhesive dabs (10mm nominal cavity) on solid smooth concrete
DriLyner Dab - BASIC (E) (EN)
Verified 17 days ago
British Gypsum
One layer of Gyproc SoundBloc 12.5mm on Gyproc DriWall Adhesive dabs (10mm nominal cavity) on solid masonry background

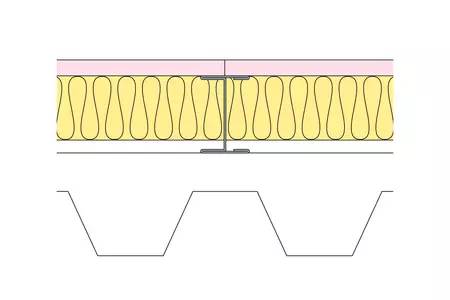

GypLyner Independent - B216026 (C) (EN)
Verified 17 days ago
British Gypsum
One layer of Gyproc FireLine 15mm to one side of Gypframe 60 I 70 ‘I’ Stud framework with 50mm Isover Steel Frame Infill Batts between studs forming an independent lining to structural steel columns, in association with external steel cladding (0.6mm). For heights up to 3300mm.
GypLyner Independent - B216004 (D) (EN)
Verified 17 days ago
British Gypsum
Two layers of Gyproc WallBoard 15mm to one side of Gypframe 70 I 70 ‘I’ Stud framework with 50mm Isover Steel Frame Infill Batts between studs forming an independent lining to structural steel columns, in association with external steel cladding (0.6mm). For heights up to 4000mm.
Showing 1-36 of 182
