Summary
Record full-height security turnstiles offer robust and reliable secure access to public areas such as stadiums, retail outlets and airports.
-
-
Product certifications
-
-
Color
Silver, Grey, Other, Beige, Black, Blue, Bronze, Brown, Copper, Clear, Cream, Gold, Green, Ivory, Orange, Pink, Purple, Red, White, Turquoise, Yellow
-
-
Finish
Powder-coated, Other, Galvanized
-
-
Material
Stainless steel, Aluminium
-
-
Shape
Other
-
-
Length
1050 mm, 1200 mm
-
-
Width
250 mm
-
-
Height
1000 mm
-
-
Warranty description
Five year
-
-
Specification
Rotation
Bidirectional., Unidirectional.
-
-
Control unit
Required.
-
-
Leaves and surrounds
Door leaf cross 120° with 13 rod-shaped crossbars each plastic caps on each section of the rotor made of steel ⌀ 51 mm.
-
-
Finish
Powder-coated.
-
-
Additional properties
Weight
390 kg.
-
-
Passage width
630 mm.
-
-
Voltage
24 V d.c.
-
-
MeanTimeBetweenFailure
Ten million cycles.
-
-
Casework
Galvanized., Galvanized and Powder-coated., AISI 304 Stainless steel., AISI 316 Stainless steel., Stainless steel rotor and powder coated frame.
-
-
Ingress protection (IP) rating
Cabinet: IP54; Logic Controller: IP65.
-
-
Operating temperature range
-20 to +70°C.
-
-
Power supply
100–240 V a.c., 50/60 Hz.
-
-
Interfaces
Logic-controlled interface, bi-directional operation.
-
-
Standby power
12 W.
-
-
Integral accessories
ID Reader mounting plate., Access Controller Box., Ceiling lights., LED indicators., Heating kit for -40°., Roof and Canopy., Tempered glass side panels., Mounting plate (suitable for forklift transport)., Mounting frame for pre-installation into concrete., Back-up battery., Access controller integration brackets on demand.
-
-
ReleaseTime
5, 10, 15 and 20 seconds.
-
-
Diameter
51 mm.
-
-
LED pictograms
Option–1., Option–2.
-
-
Mode
Controlled, Free; Locked.
-
-
Drive operation
Electromechanical/ Manual., BLDC Motor-driven.
-
-
Certification
CE marked and TÜV certified.
-
-
ProductDescription

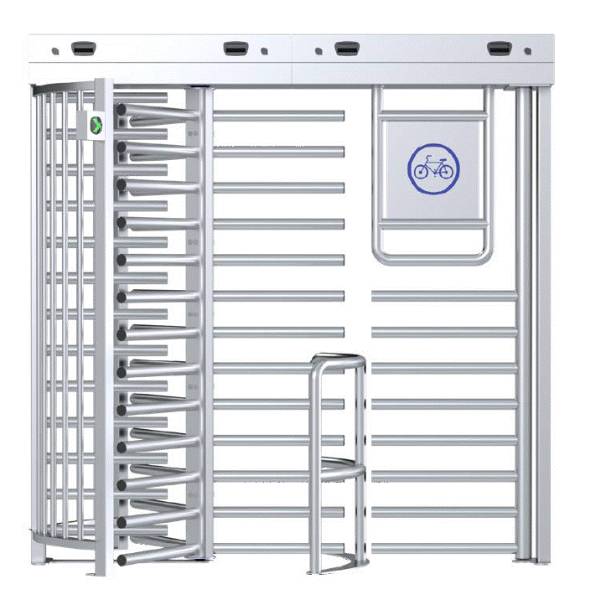

The extremely robust and water-repellent turnstile with bicycle door for controlled access.
The FT 600 combines controlled access for people with a separate passage for bicycles.
Depending on the access control system, e.g. card reader or hand switch, the turnstile enables passage to the site. When the built-in induction loop detects a bicycle at the same time, the passage way automatically opens for the bicycle and the person can pass through the entrance with their bicycle.
The bicycle door closes again after a set time.
-
-
Sustainability data
Country of product manufacture
Turkey
-
-
