Summary

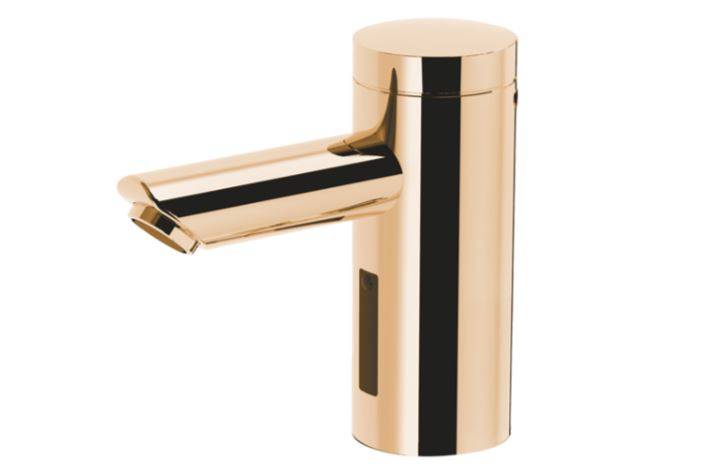

Touchless, electronically controlled lavatory faucets with IR sensors and temperature-mixing.
-
-
Application
For use in public bathrooms.
-
-
Description
Touchless, electronically controlled lavatory faucets with IR sensors, temperature-mixing and low pressure (for open water heating).
Features and benefits:
- Cold water supply connection and decentralized water treatment (boiler).
- Built in 0.5 mm mesh filter.
- Modular single-piece design without separate installation box, sturdy brass housing, chromed.
- Reliable solenoid valve ROBUST (minimal level of water pressure surge) and economic aerator.
- Infrared sensor (with automatic setting feature), microprocessor.
- Follow-up time and sensor sensitivity adjustable with function key.
- Cold water supply connection for decentralized water treatment (boiler).
- With flexible high-pressure hoses, flow limiters and built-in filters.
- Continuous water flow time and hygienic flush time adjustable with function key.
- Temperature adjustable or fixable (vandal-resistant construction).
- Adjustable hot water limitation (mechanically).
- 12, 24 or 48-hour hygienic flush activatable with function key.
- Compatible with CNX and Service APP: control of stored operational data, settings and control functions.
- Variant available with thermal protection.
-
-
Color
Silver, Grey, Gold
-
-
Finish
Chrome, Polished, Brushed
-
-
Material
Brass, Nickel
-
-
Shape
Other
-
-
Length
110 mm
-
-
Width
33 mm
-
-
Height
136 mm
-
-
Warranty description
Two year
-
-
SKU Code
120.028.11, 120.056.11, 120.016.11, 120.036.11, 120.040.00, 120.040.22, 120.040.44, 120.056.00, 120.056.22, 120.056.44, 120.000.00, 120.000.22, 120.000.44, 120.016.00, 120.016.22, 120.016.44, 120.000.11, 120.008.11, 120.010.11, 120.040.11, 120.048.11, 120.050.11, 120.020.11, 120.030.11, CONE8150308538
-
-
Specification
Classification data
Standards
To DIN EN 200.
-
-
Approvals
Water Regulations Approval Scheme (WRAS)-approved.
-
-
Form
Automatic-action taps (touchless).
-
-
Materials
-
-
-
Body
Brass.
-
-
Finish and colour
Polished.
-
-
Flow rate (maximum)
6 L/min at 3 bar.
-
-
Water supply temperature (maximum)
80°C.
-
-
Integral accessories
IR sensor., Twin plug power supply unit 110-240V / 6V., Central power supply, flush-mounted, for up to 30 units., Flush-mounted splitter set for multiple installations with surface mounted outlet., Battery replacement set., Power supply., Central control unit CNX 64., Central control unit CNX 64 with touchscreen., Central control unit CNX 150., CNX Converter (in showers included), plastic casing (CNX converter 30V-6V short).
-
-
Additional properties
Accessories
Not required., CNX Converter (in showers included), plastic casing (CNX converter 30V-6V short)., BLE Converter for CONTI+ Service APP (BLE converter).
-
-
Connections
Angle valve: G3/8".
-
-
Power supply
Plug-in transformer.
-
-
Sustainability data
Contains Red List materials
No
-
-
Country of material origin
Switzerland
-
-
Country of product manufacture
Switzerland
-
-
Material
Brass, Nickel
-
-
