Summary
Intensive green roof systems for roofs that can be walked and driven on.
-
-
Application
Designing a public roof is a challenging and complex project. Load distribution, surface water drainage and underground drainage are a few of the main planning issues involved. In addition, the various use categories (U 1–3) also have to be taken into account. Optigrun offer a range of public roofs:
- Public roof walkable: walkable non-green roof area.
- Public roof driveable - for passenger cars: non-green roof area accessible to cars.
- Public roof driveable - for lorries: non-green roof area accessible to trucks.
- Public roof greenable pavements: walkable greened roof area.
- public roof gravel lawn: walkable greened roof area.
- Public roof retention: walkable greened roof area with simultaneous function as retention area.
- Public roof inverted roof: specially adapted construction method for the realization of traffic areas on inverted roofs.
- Public roof without slope: for traffic areas on flat roofs without a gradient in the waterproofing layer.
Features and benefits:
- Combined with green spaces on the roofs.
- Varying load class depending on use.
- Used in a range of applications.
-
-
Description
Designing a public roof is a challenging and complex project. Load distribution, surface water drainage and underground drainage are a few of the main planning issues involved. In addition, the various use categories (U 1–3) also have to be taken into account. Optigrun offer a range of public roofs:
- Public roof walkable: walkable non-green roof area.
- Public roof driveable - for passenger cars: non-green roof area accessible to cars.
- Public roof driveable - for lorries: non-green roof area accessible to trucks.
- Public roof greenable pavements: walkable greened roof area.
- public roof gravel lawn: walkable greened roof area.
- Public roof retention: walkable greened roof area with simultaneous function as retention area.
- Public roof inverted roof: specially adapted construction method for the realization of traffic areas on inverted roofs.
- Public roof without slope: for traffic areas on flat roofs without a gradient in the waterproofing layer.
Features and benefits:
- Combined with green spaces on the roofs.
- Varying load class depending on use.
- Used in a range of applications.
-
-
Color
Green, Brown, Black
-
-
Finish
Natural
-
-
Shape
Square, Rectangle, Other
-
-
Length
Bespoke
-
-
Width
Bespoke
-
-
Height
Bespoke
-
-
Specification

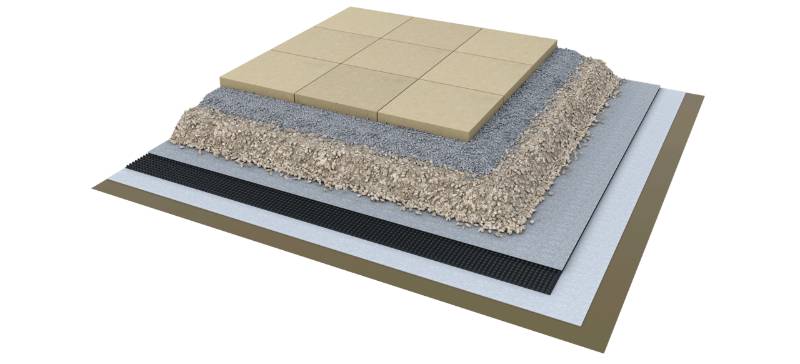

Classification data
Protection
-
-
-
Protection layer
Protection, separation and slip layer SGL 500.
-
-
Slip layer
Separation and slip layer TGF 0.2.
-
-
Moisture control
-
-
-
Drainage layer
Protection and drainage board FKD 10.
-
-
Additional properties
Base layer
Base layer of gravel 0–22 or 0–32 mm (height 100–200 mm).
-
-
Bedding layer
Suitable bedding material.
-
-
Cover
Paving.
-
-
Weight
400 kg/m² (4.0 kN/m²).
-
-
Depth
From 180 mm.
-
-
Roof pitch
1-5°.
-
-
Load class
1 (maximum 4 kN/m²).
-
-
System accessories
Terrace tile support pads TPL., Patio tile support pad TPL NV., Separation and slip layer TGF 0.2., Drainage and storage board FKD 25., Other.
-
-
Sustainability data
Country of material origin
Europe
-
-
Country of product manufacture
Europe
-
-
