Summary
For heavyweight end-folding or centre-folding doors weighing up to 125 kg.
For heavyweight end-folding or centre-folding doors weighing up to 125 kg.
Application
- For heavyweight end-folding or centre-folding doors weighing
- up to 125 kg.
- For internal use.
- Commercial applications.
- For heavyweight end-folding or centre-folding doors weighing
- up to 125 kg.
- For internal use.
- Commercial applications.
Description

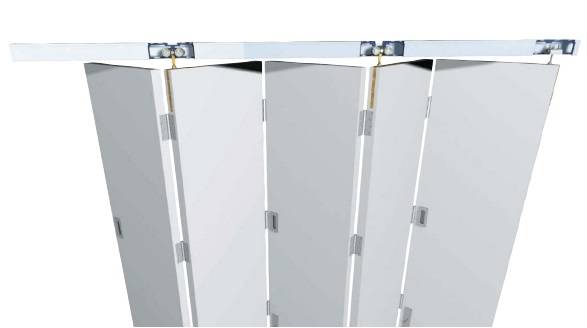

For end-folding or centre-folding doors weighing up to 125 kg.
Features and benefits:
- Suitable for commercial applications requiring heavyweight, folding doors.
- Flexirol Endfold is the end-folding system - the hangers are fixed to the edge of the door. Doors can be hung to the left or right of an opening as well as hung as a floating unit.
- Flexirol Centrefold offers a centre-folding system whereby the doors can fold to one or both sides of the opening. For applications hinged to the jamb, 1.5, 3.5, 5.5 and 7.5 doors can be used.
Components:
- Aluminium track;
- Brackets;
- Hangers;
- Pivots;
- Guides;
- Hinges;
- Guide channel.
For end-folding or centre-folding doors weighing up to 125 kg.
Features and benefits:
- Suitable for commercial applications requiring heavyweight, folding doors.
- Flexirol Endfold is the end-folding system - the hangers are fixed to the edge of the door. Doors can be hung to the left or right of an opening as well as hung as a floating unit.
- Flexirol Centrefold offers a centre-folding system whereby the doors can fold to one or both sides of the opening. For applications hinged to the jamb, 1.5, 3.5, 5.5 and 7.5 doors can be used.
Components:
- Aluminium track;
- Brackets;
- Hangers;
- Pivots;
- Guides;
- Hinges;
- Guide channel.
Color
Silver
Silver
Finish
Mill, Other
Mill, Other
Material
Aluminium, Metal
Aluminium, Metal
Shape
Rectangle
Rectangle
Length
2000 mm, 2500 mm, 3000 mm, 4000 mm, 5000 mm, 6000 mm
2000 mm, 2500 mm, 3000 mm, 4000 mm, 5000 mm, 6000 mm
Width
Bespoke
Bespoke
Warranty description
Ten year
Ten year
Specification
Classification data
Standard
To BS EN 1527.
To BS EN 1527.
Classification grades (minimum)
-
-
Durability
Manufacturer's standard.
Manufacturer's standard.
Door mass
4.
4.
Corrosion resistance
Manufacturer's standard.
Manufacturer's standard.
Category of door-opening action
3.
3.
Initial friction
Manufacturer's standard.
Manufacturer's standard.
Form
White aluminium top track, integral hangers with nylon wheels., Mill finish aluminium top track, integral hangers with nylon wheels.
White aluminium top track, integral hangers with nylon wheels., Mill finish aluminium top track, integral hangers with nylon wheels.
Integral accessories
Track stop (HH3/301).
Track stop (HH3/301).
Additional properties
Length
Track: 2000 mm., Track: 2500 mm., Track: 3000 mm., Track: 4000 mm., Track: 5000 mm., Track: 6000 mm.
Track: 2000 mm., Track: 2500 mm., Track: 3000 mm., Track: 4000 mm., Track: 5000 mm., Track: 6000 mm.
Brackets
Face fixed (1A/550)., Soffit fixed adjustable, suspended ceiling bracket (3S/550).
Face fixed (1A/550)., Soffit fixed adjustable, suspended ceiling bracket (3S/550).
Hangers
Manufacturer's standard (556/21).
Manufacturer's standard (556/61).
Pivots
Top and bottom pivot set (21/550P).
N/A.
Guides
Brass end roller guide (21R/94).
Nylon guide roller (106N/94).
Hinges
Butt hinge (403/3).
Butt hinge (403/3).
Guide channel
Brass (94/xxxx)., Aluminium (94X/xxxx)., Polypropylene (94P/xxxx)., Anodised aluminium support channel (94SC/xxxx).
Brass (94/xxxx)., Aluminium (94X/xxxx)., Polypropylene (94P/xxxx)., Anodised aluminium support channel (94SC/xxxx).
Door leaf
Thickness: 43–57 mm.
Maximum width: 1200 mm.
Maximum weight: 125 kg.
Maximum width: 1200 mm.
Maximum weight: 125 kg.
Thickness: 43–57 mm.
Maximum width: 1200 mm.
Maximum weight: 125 kg.
Maximum width: 1200 mm.
Maximum weight: 125 kg.
Configuration
End folding.
Centre folding, for 1.5 doors., Centre folding, for 3.5 doors., Centre folding, for 5.5 doors., Centre folding, for 7.5 doors.
Accessories
None., Flush bolt, non-locking 110 mm (FB110S)., Flush bolt, non-locking 190 mm (FB190x)., Flush bolt, locking 190 mm (FB190Lx).
None., Flush bolt, non-locking 110 mm (FB110S)., Flush bolt, non-locking 190 mm (FB190x)., Flush bolt, locking 190 mm (FB190Lx).
Sustainability data
Contains Red List materials
No
No
Country of material origin
United Kingdom
United Kingdom
Country of product manufacture
United Kingdom
United Kingdom
Material
Aluminium, Metal
Aluminium, Metal
