Summary
Aluminium stick curtain walling system.
Aluminium stick curtain walling system.
Application
Facade applications.
THERM+ A-I is also suitable for glass roofs and conservatories.
THERM+ A-V is reinforced for static requirements.
Facade applications.
THERM+ A-I is also suitable for glass roofs and conservatories.
THERM+ A-V is reinforced for static requirements.

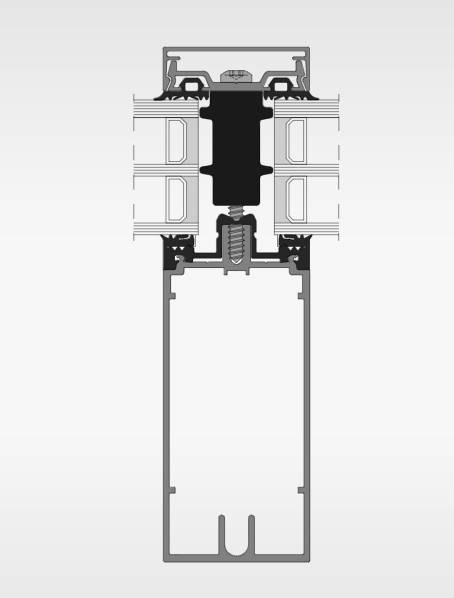

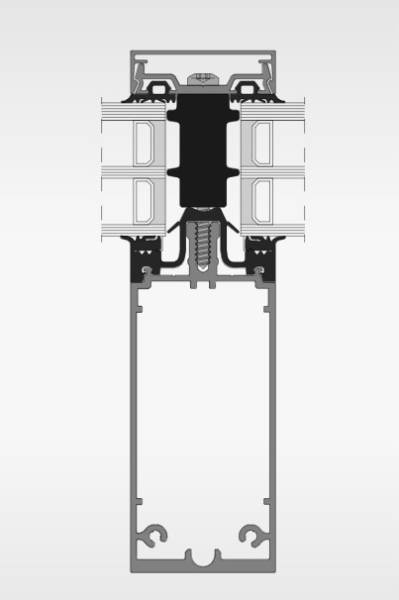

Description
Aluminium stick curtain walling system which combines the maximum application of the range with straight forward planning and manufacture, providing high processing reliability due to the consistent modular technology.
Available in two variants and a range of system types.
Features and benefits:
- Stepless thermal insulation by means of RAICO Insulating Block Technology.
- Profiles are all suited for mullion and transom.
- Excellent aesthetics to the flush faced transoms by sharp edge cross sections.
- Integrated drainage system in the continuous hat, sealing in three levels.
- Can withstand up to 600 kg glass weight.
- Can be assembled as a polygon curtain wall up to 45°.
- System uses isothermal lines to avoid the formation of condensate and control surface temperature.
- A range of profiles are available dependent on project requirements (rectangular, expansion, T-profiles).
- Profile depths up to 200 mm.
- Extensive system accessories.
Aluminium stick curtain walling system which combines the maximum application of the range with straight forward planning and manufacture, providing high processing reliability due to the consistent modular technology.
Available in two variants and a range of system types.
Features and benefits:
- Stepless thermal insulation by means of RAICO Insulating Block Technology.
- Profiles are all suited for mullion and transom.
- Excellent aesthetics to the flush faced transoms by sharp edge cross sections.
- Integrated drainage system in the continuous hat, sealing in three levels.
- Can withstand up to 600 kg glass weight.
- Can be assembled as a polygon curtain wall up to 45°.
- System uses isothermal lines to avoid the formation of condensate and control surface temperature.
- A range of profiles are available dependent on project requirements (rectangular, expansion, T-profiles).
- Profile depths up to 200 mm.
- Extensive system accessories.
Color
Other
Other
Finish
Other
Other
Material
Aluminium, Glass
Aluminium, Glass
Shape
Other
Other
Length
Bespoke
Bespoke
Width
50 mm, 56 mm
50 mm, 56 mm
Height
Bespoke
Bespoke
SKU Code
A-I, A-V
A-I, A-V
Specification
Classification data
System performance
To BS EN 13830.
To BS EN 13830.
Framing
-
-
Frame members
Aluminium curtain wall frame sections.
Aluminium curtain wall frame sections.
Fasteners
Screw connection for pressure profiles.
Screw connection for pressure profiles.
Cladding units
-
-
Panels and facings
-
-
Material
Manufacturer's standard.
Manufacturer's standard.
Thermal insulation
Not required., RAICO insulating blocks.
Not required., RAICO insulating blocks.
Fasteners
T-connectors.
T-connectors.
Perimeter seals
Exterior gasket., Transom and mullion gaskets.
Exterior gasket., Transom and mullion gaskets.
System accessories
Not required., Solar protection fastening., Scaffolding fixation., Fixture unit., Canopy fastening., Fastening brackets., Suction disc., Other.
Not required., Solar protection fastening., Scaffolding fixation., Fixture unit., Canopy fastening., Fastening brackets., Suction disc., Other.
Additional properties
Width
50 mm., 56 mm.
50 mm., 56 mm.
System types
Manufacturer's standard., Structural SG2., Burglar resistant.
Manufacturer's standard., Passive House., Structural SG2., Fire protection (EI30)., Burglar resistant.
Ventilation
Pressure compensation via mullion – connection below/ on top., Pressure compensation via mullion and synthetic sealing piece., Pressure compensation of extra large transoms via pressure and cover profiles.
Pressure compensation via mullion – connection below/ on top., Pressure compensation via mullion and synthetic sealing piece., Pressure compensation of extra large transoms via pressure and cover profiles.
Thermal transmittance (U-Value)
0.85 W/(m²·K).
0.89 W/(m²·K).
Wind resistance
1.875–2.813 kN/m².
1.875–2.813 kN/m².
Impact resistance
Interior I5, Exterior E5.
Interior I5, Exterior E5.
Air permeability
AE (>600).
AE (>600).
Watertightness
RE 1650.
RE 1650.
Sound insulation
Up to 44 Rw+Ctr (dB).
Up to 45 Rw+Ctr (dB).
Certification
Deutsches Institut für Bautechnik (DIBt) Z-14.4-454.
Deutsches Institut für Bautechnik (DIBt) Z-14.4-504.
Sustainability data
Material
Aluminium, Glass
Aluminium, Glass
