For MATRIX SMALL and CURVE wash basins.

For MATRIX SMALL and CURVE wash basins.

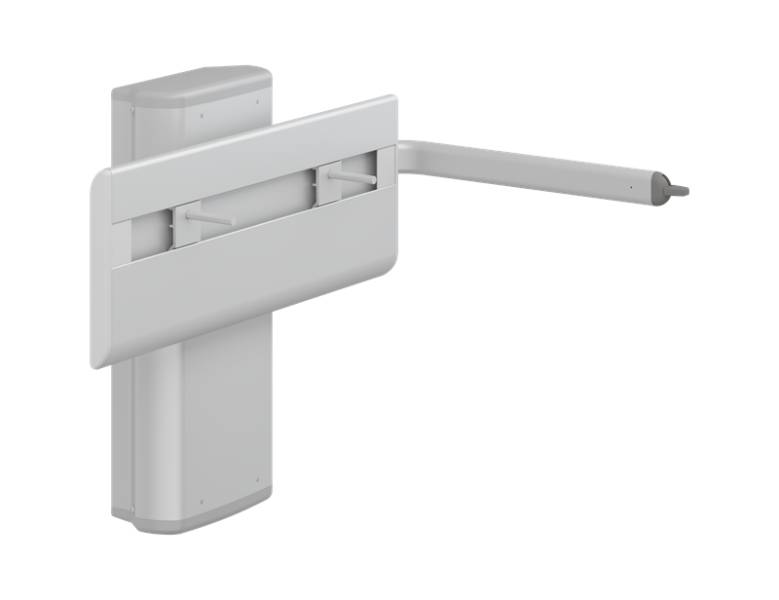

Gas cylinder height adjustable wash basin bracket.

Height adjustable wash basins are useful for school hygiene rooms (see Building Bulletin 102) and for a variety of public, private and domestic situations. Height adjustment allows standing and seated users the opportunity to use the basin at a safe, comfortable height.

Features and benefits:

• PLUS wash basin bracket, gas-assisted. The lever control is placed by the front of the wash basin. The lever control can also be used as a towel rail and can be placed on either side of the wash basin. Manually height adjustable by 300 mm (stepless).
• No need for power outlets in bathroom.

R4650 height adjustable

• PLUS gas-assisted basin bracket R4650 is lever operated and contain cylinders similar to those found in the boot lids of cars. The lever releases the basin to rise and fall. Some effort will be required to push the basin downwards and this may need to be done by an assistant.
• This height adjustable option works best in an assisted bathroom.

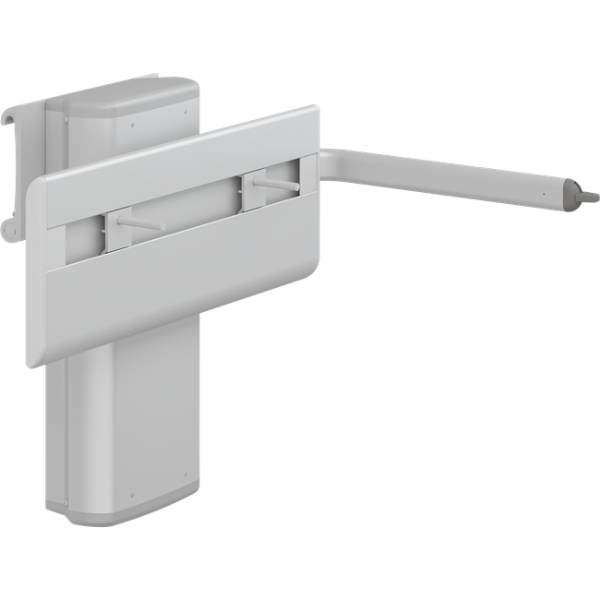

R4680 height & sideways adjustable

• R4680 as R4650 but also sideways adjustable.
• Requires Pressalit PLUS wall track R98xx system to make it capable of horizontal and vertical adjustment.

General information for both

• Excludes the fixing kit.
• Supplied with a five-year warranty.
• This wash basin bracket is supplied as standard with a gas cylinder for wash basins weighing 16-22 kg, however, it is possible to order it for wash basins weighing 8-12 kg or 12-16 kg
• The lever control can be placed on the right- or left-hand side of the wash basin.

Recommendation:

• Flexible feed and waste system R2071/R2075.
