Summary

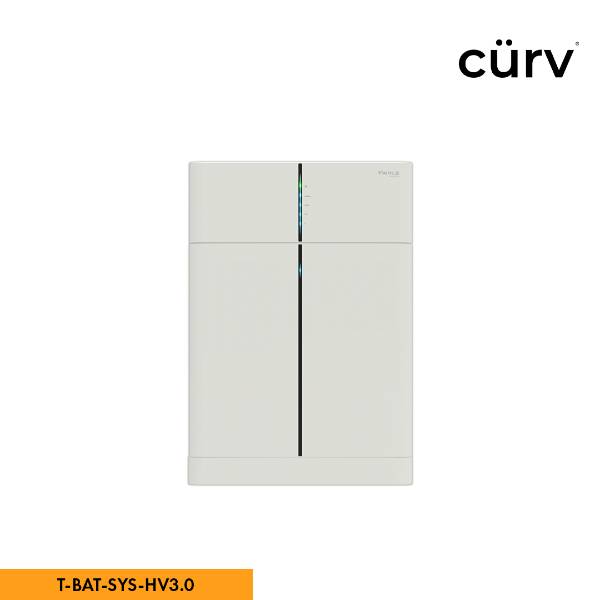

Off-peak battery power storage system.
-
-
Digital objects
-
-
Color
White
-
-
Finish
Other
-
-
Shape
Rectangle
-
-
Length
153 mm
-
-
Width
482.5 mm
-
-
Height
471 mm, 173 mm
-
-
Warranty description
Ten year
-
-
Specification
Standards
-
-
-
Safety
To IEC 62109-1/-2.
-
-
Grid connection
In accordance with EREC G98 and G99.
-
-
Third-party certification
TUV, CE, UN38.3, IEC 62619, IEC 62040 and UKCA.
-
-
Supply voltage
Single-phase 220–240 V a.c. 50/60 Hz
-
-
Architecture
Grid connected.
-
-
Configuration
Packaged.
-
-
Controller
-
-
-
Communications
RS 485/ CAN2.0.
-
-
Visual indication
Master control LED indicator.
-
-
Inverter
X1-HYBRID-3.7T.
-
-
Protection
a.c. surge protection.
-
-
Total harmonic distortion (THD)
<2%.
-
-
Batteries
-
-
-
Capacity
-
-
-
Effective
30 Ah.
-
-
Depth of discharge (DoD)
90%.
-
-
Location
Within the main energy storage unit.
-
-
Type
Lithium iron phosphate (LiFeP04).
-
-
Service conditions
Operating temperature range: -30℃ to 50℃.
Minimum storage temperature: -20℃ to 50℃ (3 months).
Relative humidity: 0–100%.
Altitude: below 3000 m.
-
-
Enclosure
-
-
-
Material
Steel.
-
-
Finish
Painted.
-
-
Colour
White.
-
-
Ingress protection (minimum)
IP65.
-
-
Additional properties
Nominal voltage
102.4 V.
-
-
Operating voltage
90–116 V.
-
-
EnergyUsed
Total energy: 3.0 kWh.
Useable energy: 2.8 kWh.
-
-
Power
2.5 kW.
-
-
Maximum power usage
3.1 kW.
-
-
Current
25 A.
-
-
Cycles
6000 cycles.
-
-
Dimensions
MC0600 (BMS): 482.5 x 173.5 x 153 mm.
HV10230 (Battery): 482.5 x 471.5 x 153 mm.
HV10230 (Battery): 482.5 x 471.5 x 153 mm.
-
-
Inverter
X1-HYBRID-3.7T.
-
-
