Summary

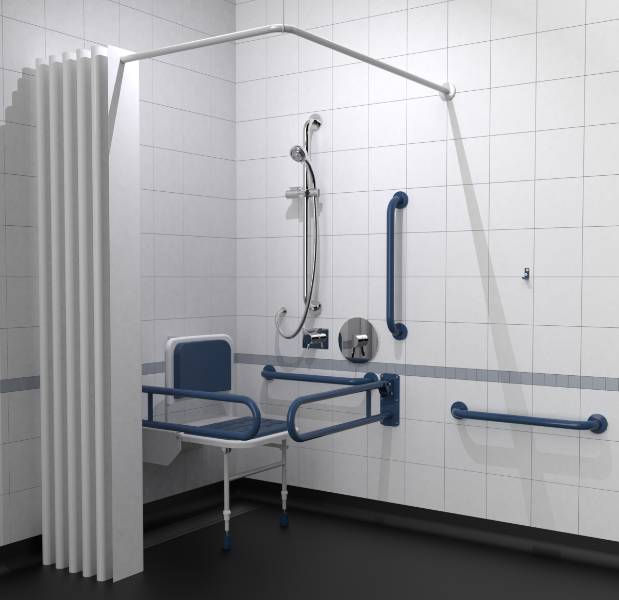

Concealed valve Doc M shower pack with stainless steel concealed fixing grab rails.
-
-
Application
Suitable for accessible shower rooms and wet areas.
-
-
Description
Doc M compliant concealed valve shower pack with stainless steel concealed fixing grab rails.
Features and benefits:
- Concealed valve and diverter with extended levers.
- Extended projection shower seat to allow easier side transfer from wheelchair.
- Non-corrosive concealed fixings stainless steel grab rails and hinged support rails.
- Simple one box solution.
- Complies with Part M of the Building Regulations.
- TMV3 and WRAS approved valve and diverter.
Pack contents:
- Doc M shower seat.
- Concealed TMV3 Doc M shower valve.
- Concealed Doc M shower diverter.
- Antivandal overhead shower head.
- Shower head and hose.
- 600 mm stainless steel grab rails with concealed fixings (three).
- 450 mm stainless steel grab rail with concealed fixings.
- 900 mm stainless steel grab rail with concealed fixings.
- 800 mm stainless steel hinged support rails (two).
- 1200 x 1200 mm stainless steel shower curtain rail.
- Weighted shower curtains (two).
- Sliding shower head bracket.
- Single robe hook.
-
-
Product certifications
-
-
Digital objects
-
-
Color
White, Blue, Grey, Silver
-
-
Finish
Polished, Satin, Chrome
-
-
Material
Stainless steel, Plastic, Aluminium, Polyurethane (PUR), Polyester
-
-
Shape
Other
-
-
Length
Bespoke
-
-
Width
Bespoke
-
-
Height
Bespoke
-
-
SKU Code
230403
-
-
Specification
Classification data
Standard
In accordance with Approved Document M.
-
-
Form
Complete accessible shower Doc M package and fittings.
-
-
Transfer handing
Left-hand., Right-hand.
-
-
Material and colour
-
-
-
Seat
Plastics, dark blue., Plastics, grey.
-
-
Seat back
As Seat.
-
-
Shower curtains and rails
White stainless steel curtain rail with white polyester curtain., Satin stainless steel curtain rail with white polyester curtain., Polished stainless steel curtain rail with white polyester curtain.
-
-
Handrails
Coated stainless steel, dark blue.
-
-
Water supply fittings
-
-
-
Shower fittings
Shower head and hose with sliding shower head bracket.
Concealed TMV3 shower valve and diverter with antivandal overhead shower head.
-
-
Finish
Chrome-plated.
-
-
Operating control
Lever and temperature ring.
-
-
Water supply temperature (maximum)
65°C.
-
-
Flow rate
8 l/min. at 5 bar.
-
-
Integral accessories
Single aluminium robe hook, white., Single aluminium robe hook, dark blue., Single aluminium robe hook, dark grey., Single aluminium robe hook, grey.
-
-
Sustainability data
Contains Red List materials
No
-
-
Material
Stainless steel, Plastic, Aluminium, Polyurethane (PUR), Polyester
-
-
Recyclability
Metal items recyclable
-
-
