Summary
Wall-hung WC pan.
Wall-hung WC pan.
Application
Compatible with all standard frame systems available on the market.
Compatible with all standard frame systems available on the market.
Description
Wall-hung WC pan.
Features and benefits:
- Elegant and simple design.
- Bacteriostatic 304 stainless steel.

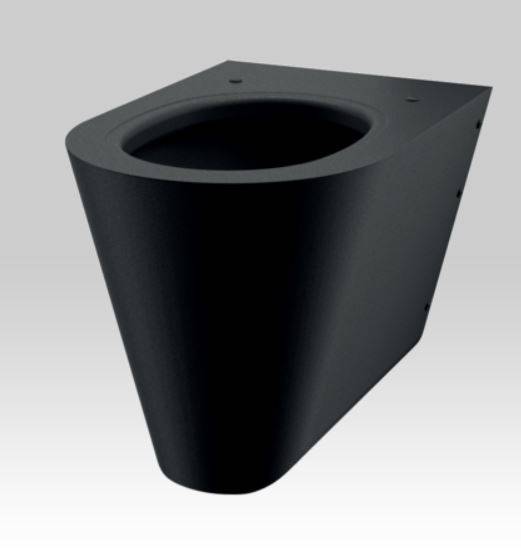

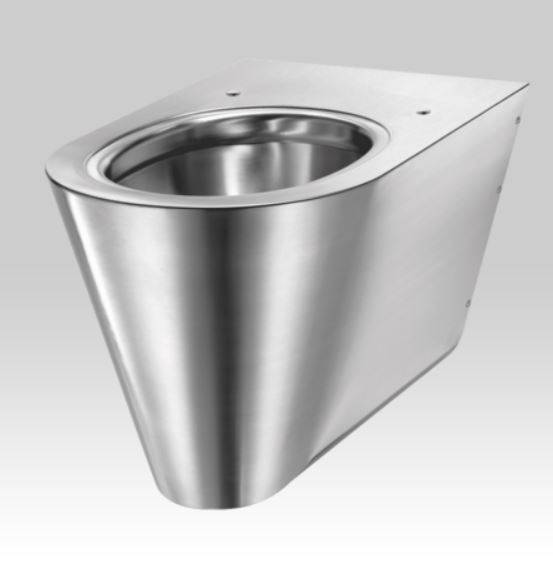

- Available in a matte black and polished satin finish.
- Stainless steel thickness: 1.5 mm.
- One-piece pressed WC bowl, seam-free for easy maintenance and better hygiene.
- Concealed perimetral flushing rim.
- Horizontal water inlet: Ø 55 mm.
- Horizontal waste outlet: Ø 100 mm.
- Water saving: works with 4 L or more of water.
- Shrouded pan.
- Pre-drilled holes for fixing the toilet seat. Supplied with stainless steel blanking caps when installed without toilet seat lid.
- Quick and easy to install from the front thanks to a stainless steel mounting frame.
- Supplied with fixing plate and six theft prevention TORX security screws.
- CE marked. Complies with European standard EN 997 for 4 L flush.
- Weight: 11 kg.
Wall-hung WC pan.
Features and benefits:
- Elegant and simple design.
- Bacteriostatic 304 stainless steel.
- Available in a matte black and polished satin finish.
- Stainless steel thickness: 1.5 mm.
- One-piece pressed WC bowl, seam-free for easy maintenance and better hygiene.
- Concealed perimetral flushing rim.
- Horizontal water inlet: Ø 55 mm.
- Horizontal waste outlet: Ø 100 mm.
- Water saving: works with 4 L or more of water.
- Shrouded pan.
- Pre-drilled holes for fixing the toilet seat. Supplied with stainless steel blanking caps when installed without toilet seat lid.
- Quick and easy to install from the front thanks to a stainless steel mounting frame.
- Supplied with fixing plate and six theft prevention TORX security screws.
- CE marked. Complies with European standard EN 997 for 4 L flush.
- Weight: 11 kg.
Color
Black, Silver
Black, Silver
Finish
Matt, Satin
Matt, Satin
Material
Stainless steel
Stainless steel
Shape
Other
Other
Length
535 mm
535 mm
Width
360 mm
360 mm
Height
350 mm
350 mm
Warranty description
30 year
30 year
SKU Code
110310BK, 110310
110310BK, 110310
Specification
Classification data
Standard
To BS EN 997, Class 2.
To BS EN 997, Class 2.
Form
Wall-mounted.
Wall-mounted.
Pan height
350 mm.
350 mm.
Materials
-
-
Body
Stainless steel.
Stainless steel.
Finish and colour
Matte black Teflon® finish.
Polished satin.
Water supply, outlet and seat holes
-
-
Seat holes
Standard pattern.
Standard pattern.
Sustainability data
Material
Stainless steel
Stainless steel
