Summary

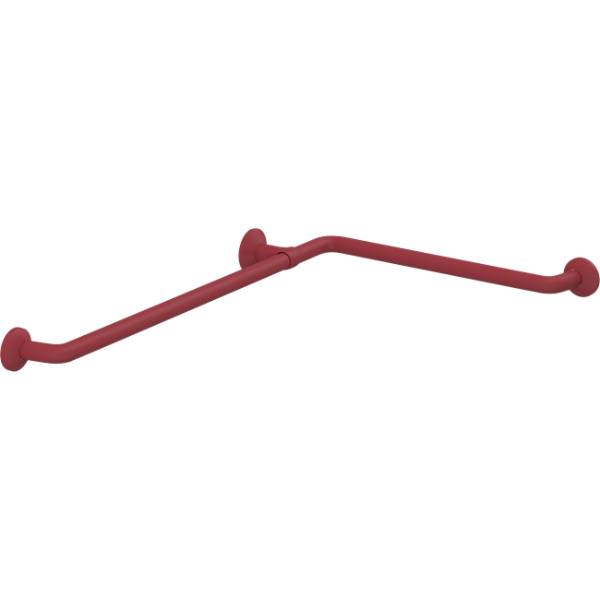

Corner support handrail.
-
-
Application

A support for walking and standing users in the bathroom or for assisting seated users who need help getting up.



-
-
Description

Corner support handrail.


Pressalit handrails are available in a range of configurations, designed to provide stable support in any situation.


Features and benefits:

  • The 33 mm diameter and 50 mm clear projection from the wall make the rails easy to take hold of.
  • Constructed of aluminium with a polyester lacquer, the rails will not rust and are not cold to the touch.
  • Wall coverage on two walls of shower corner - helps left or right sided use.
  • Easy, quick assembly.


Maximum weight:

  • Span up to 1000 mm: 210 kg.
  • Span up to 1300 mm: 150 kg.
  • Maximum load: 235 kg.
  • When the handrail is loaded with 235 kg, each wall fastener is loaded with 56 kg.
  • Handrails are tested with a 1.5 safety factor in accordance with the requirements in ISO 17966:2016.
-
-
Product certifications
-
-
Digital objects
-
-
Color
White, Red, Blue, Grey
-
-
Finish
Powder-coated
-
-
Material
Aluminium, Plastic, Nylon
-
-
Shape
Other
-
-
Length
Bespoke
-
-
Width
Bespoke
-
-
Height
Bespoke
-
-
Warranty description
Five year
-
-
SKU Code
RT124, RT126, RT128, RT136, RT138
-
-

Specification

Classification data
Form
Corner handrail.
-
-
Diameter
33 mm.
-
-
Materials
-
-
-
Body
Aluminium (rail), Cycoloy plastic (cover cap) and Nylon (strap).
-
-
Finish and colour
Polyester lacquer.
-
-
Integral accessories
Wall rosette.
-
-

Additional properties

Corner handrail
Not required., RT124., RT126., RT128., RT136., RT138.
-
-
Rail section
Not required., RT300., RT303., RT307.
-
-
Rail section with corner strap
Not required., RT330., RT331., RT332., RT333.
-
-
Angled rail component with horizontal angle
Not required., RT345.
-
-
Rail component including wall rosette
Not required., RT320., RT321., RT322., RT323.
-
-
Angled rail component with vertical angle including wall rosette
Not required., RT340., RT341.
-
-
Fittings
Not required., RT350., RT360., RT361., RT362., RT363.
-
-
Colour
000 White., 035 Red., 108 Dark Blue., 112 Anthracite.
-
-
Dimensions
762 x 475 mm.
-
-
Projection
50 mm.
-
-

Sustainability data

Contains Red List materials
No
-
-
Country of material origin
Denmark
-
-
Country of product manufacture
Denmark
-
-
Material
Aluminium, Plastic, Nylon
-
-
