Extensive range of acoustic louvres in varying depths, performance and appearance.
Self-declared
Beige, Black, Blue, Brown, Cream, Gold, Green, Grey, Ivory, Orange, Pink, Purple, Red, Silver, Turquoise, White, Yellow, Other
-
-
Mill, Powder-coated
-
-
Aluminium, Steel
-
-
Rectangle, Square
-
-
Bespoke
-
-
Bespoke
-
-
Bespoke
-
-
One year
-
-
Specification
Aluminium sheet., Pre-galvanized sheet steel., Stainless steel sheet.
-
-
Mill., Polyester powder-coated.
-
-
Mill., RAL colour., BS colour.
-
-
As finish.
-
-

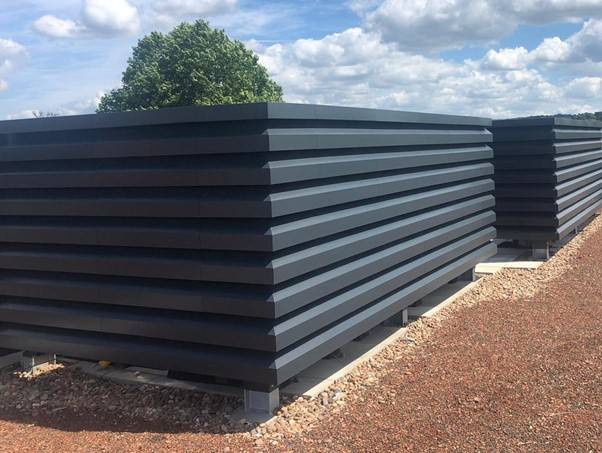

Louvres are constructed from folded sheet metal and have a series of horizontal blades contained within two side frames.
-
-
-
-
-
Intake., Exhaust.
-
-
12 Pa at 1 m/s.
-
-
-
-
-
To BS EN ISO 10140-2.
-
-
63 Hz - 4 dB., 125 Hz - 4 dB., 250 Hz- 6 dB., 500 Hz - 8 dB., 1k Hz - 11 dB., 2k Hz - 13 dB., 4k Hz - 12 dB., 8k Hz - 12 dB.
-
-
-
-
-
To BS EN 13030.
-
-
0.224.
-
-
-
-
-
A1 non-combustible.
-
-
-
-
-
One.
-
-
Horizontal.
-
-
200 mm.
-
-
Fixed.
-
-
Not required., Peripheral flanges., Birdguard / insect mesh., Single/ double door sets., Inclined or sloping louvres., Dummy louvres., Blanking plates., Freestanding screen supports.
-
-
Additional properties
Trapezoidal blade.
-
-
Traditional format., Continuous line.
-
-
152 mm.
-
-
24 kg/m².
-
-
Visual free area: 50%.
Nominal free area typically: 30–34%*.
Nominal free area typically: 30–34%*.
-
-
10 dB.
-
-
Sustainability data
No
-
-
Europe
-
-
United Kingdom
-
-
Aluminium, Steel
-
-
Wardley Industrial Estate, Unit 12 Shield Dr, Wardley, Worsley, Manchester M28 2QB, UK
-
-
Aluminium, pre-galvanised sheet steel - recyclable following removal of powder coating. Mineral infill - recyclable.
-
-
15 year
-
-
