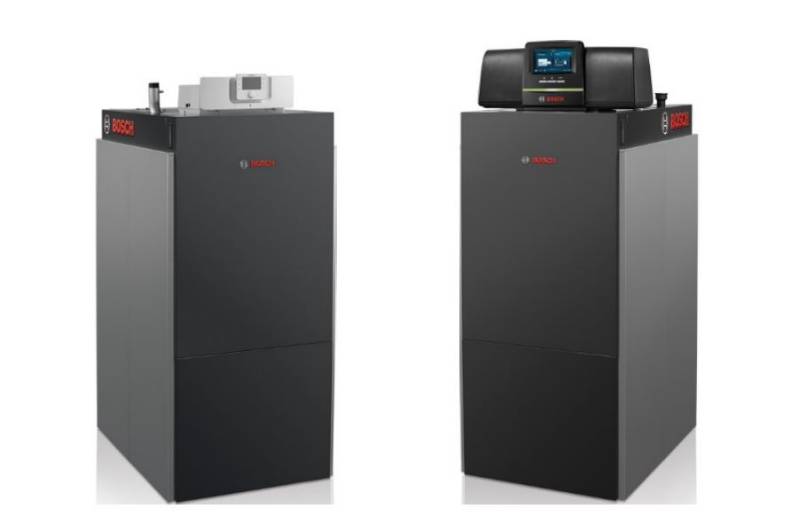

Condens 7000 F/FP - Condensing Boiler
Condens 7000 F/FP - Condensing Boiler
Condens 7000 F/FP - Condensing Boiler

Last verified by manufacturer over a year ago

Bosch Thermotechnology Ltd

Last verified by manufacturer over a year ago

Bosch Thermotechnology Ltd

Last verified by manufacturer over a year ago

Bosch Thermotechnology Ltd
Summary
Condensing floor-standing commercial boilers, suitable for all heating systems.
-
-
Application
  • Suitable for medium to large commercial applications of 75 to 500 kW.
  • Suitable for all heating systems.
-
-
Description

Condensing floor-standing commercial boilers, suitable for all heating systems. The boiler is available in nine different output ratings from 75 to 500 kW. Cascading 16x allows you to achieve outputs of up to 8MW. This makes the Condens 7000 F/FP the suitable solution not only for single-family homes and apartment buildings, but for commercial premises too.


Features and benefits:

  • For medium to large commercial applications of 75 to 500 kW.
  • Removable side panels and directly accessible components allow for quick servicing.
  • Simple integration in a variety of heating systems possible.
  • Easy to operate with the intelligent Control 8000.
  • Effortlessly change the fuel type from natural gas to liquid gas (and vice versa).
  • The boiler's compact dimensions and low weight make it relatively easy to transport.
  • Installation is quick and easy thanks to the specially developed X frame and the straightforward flue gas connection, which can be set up either behind or in front of the boiler.
  • The modulating gas premix burner automatically adapts to the current heat demand.
  • This boiler will enable the heating system to work extremely efficiently even under partial load.
  • The boiler boasts an integrated Internet interface, making it easy and convenient to control remotely using a smartphone or tablet with EasyRemote or HomeCom from Bosch.
-
-
Digital objects
-
-
Color
Black
-
-
Finish
Other
-
-
Material
Metal, Aluminium
-
-
Shape
Rectangle
-
-
Length
736 mm, 914 mm, 1317 mm, 1903 mm, 2088 mm
-
-
Width
670 mm, 803 mm
-
-
Height
1470 mm, 1582 mm
-
-
Warranty description
Two year
-
-
SKU Code
7000F–75, 7000F–100, 7000F–150, 7000F–200, 7000F–250, 7000F–300, 7000 FP–350, 7000 FP–400, 7000 FP–500
-
-

Specification

Classification data
Standards
-
-
-
Boilers with heat input greater than 70 kW but not exceeding 1000 kW
To BS EN 15502-1 and BS EN 15502-2-1.
-
-
Output
15.5—69.4 kW (80/60 °C); 17.2—75.0 kW (50/30 °C).
-
-
Seasonal efficiency (gross calorific value (minimum))
95.9%.
-
-
NOx emissions (maximum)
45 mg/kW·h.
-
-
Mounting
Floor mounted.
-
-
Operating pressure
6 bar.
-
-
Operating temperature
95℃.
-
-
Heat exchanger
Aluminium.
-
-
Fuel
LPG., Natural gas.
-
-
Electrical supply type
Single phase.
-
-
Accessories
Not required., Flue., Hydraulic., Safety and control accessories.
-
-

Additional properties

Input
15.8—70.8 kW.
-
-
Efficiency
98.0—108.4%.
-
-
Flow rate (maximum)
7.1—32.5 g/s (80/60℃); 6.8—31.8 g/s (50/30℃).
-
-
Resistance
70—2 mbar.
-
-
Noise level at 1 m maximum
57.4 db (A).
-
-
Power supply
230 VAC, 50 Hz.
-
-
Ingress protection
IPX0D.
-
-
Dimensions
1470 x 736 x 670 mm.
-
-
Weight
132 kg.
-
-
Temperature
110℃.
-
-
WaterContent
18.2 L.
-
-
Pressure
150 Pa.
-
-
Power consumption
28—83 W. `
-
-

Sustainability data

Contains Red List materials
No
-
-
Country of material origin
Europe
-
-
Country of product manufacture
Germany
-
-
Recyclability
85%
-
-
