Summary

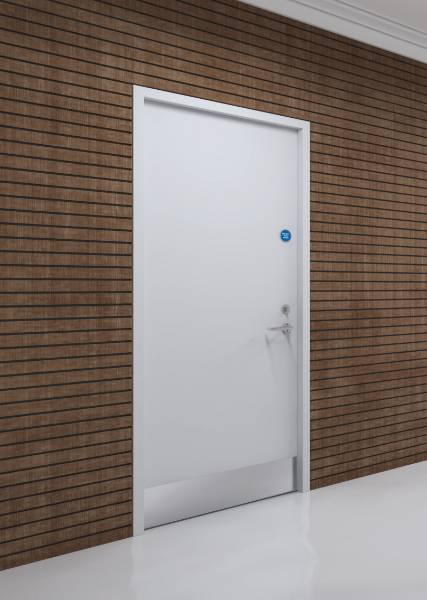

Steel security door.
Steel security door.
Application
Suitable for interior applications.
Suitable for interior applications.
Description
The EBD Security Door has been tested to the latest Issue 8 of the LPS 1175 physical security test and is available at levels A1 (SR1), B3 (SR2) and C5 (SR3). The security doorset can be custom designed and manufactured to satisfy protection requirements.
The EBD Security Door has been tested to the latest Issue 8 of the LPS 1175 physical security test and is available at levels A1 (SR1), B3 (SR2) and C5 (SR3). The security doorset can be custom designed and manufactured to satisfy protection requirements.
Color
Other
Other
Finish
Powder-coated
Powder-coated
Material
Steel
Steel
Shape
Rectangle
Rectangle
Length
Bespoke
Bespoke
Width
Bespoke
Bespoke
Height
Bespoke
Bespoke
Specification
Classification data
Configuration
Single leaf, left hand hung., Single leaf, right hand hung.
Double leaf, left hand active., Double leaf, right hand active.
Doorset size
-
-
Performance
-
-
Fire resistance
-
-
Integrity
Not required., FD60., FD120., FD240., E60., E120., E240.
Not required., FD60., FD120., FD240., E60., E120., E240.
Smoke leakage
Not required., To EN 1634-3:2004, Sa.
Not required., To EN 1634-3:2004, Sa.
Acoustic performance
Not required., To BS EN ISO 10140-2:2010, sound reduction index up to Rw 32 dB.
Not required., To BS EN ISO 10140-2:2010, sound reduction index up to Rw 32 dB.
Thermal
2.1 W/m²K.
3.3 W/m²K.
Intruder resistance
-
-
Minimum requirement
To LPS 1175, SR 1., To LPS 1175, SR 2., To LPS 1175, SR 3.
To LPS 1175, SR 1., To LPS 1175, SR 2., To LPS 1175, SR 3.
Frame
-
-
Material
2.0 mm galvanized steel.
2.0 mm galvanized steel.
Threshold
EBD standard threshold., Drop seal., Aluminum threshold., Without threshold., Raindrip threshold.
EBD standard threshold., Drop seal., Aluminum threshold., Without threshold., Raindrip threshold.
Finish
-
-
Coating
Powder-coated.
Powder-coated.
Texture
30% gloss (matt).
30% gloss (matt).
Colour
RAL colour range.
RAL colour range.
Door leaf
-
-
Thickness
44 mm.
44 mm.
Core
Aluminium honeycomb.
Aluminium honeycomb.
Material
1.2 mm galvanized steel.
1.2 mm galvanized steel.
Finish
-
-
Coating
Powder-coated.
Powder-coated.
Texture
30% gloss (matt).
30% gloss (matt).
External colour
RAL colour range.
RAL colour range.
Internal colour
RAL colour range.
RAL colour range.
Film thickness (minimum)
40 microns.
40 microns.
Door accessories
None., Kickplates - stainless steel brush finish., Kickplates - aluminium chequer plate.
None., Kickplates - stainless steel brush finish., Kickplates - aluminium chequer plate.
Hardware
Union HD72DL - deadlocking., Mico Modula MD - manual deadlocking., Mico Elite MD - manual deadlocking., Union HD72S - sashlock., Mico Modula AD - automatic deadlocking., Mico Elite AD - automatic deadlocking., Union HD72ESL - emergency escape BS EN 179., Mico Modula PE/ optional push pad - panic escape BS EN 1125/ emergency escape BS EN 179., Mico Elite PE/ optional push pad - panic escape BS EN 1125/ emergency escape BS EN 179., Mico Modula EM - electromechanical access control., Mico Elite EM - electro-mechanical access control.
Union HD72DL - deadlocking., Mico Modula MD - manual deadlocking., Mico Elite MD - manual deadlocking., Union HD72S - sashlock., Mico Modula AD - automatic deadlocking., Mico Elite AD - automatic deadlocking., Union HD72ESL - emergency escape BS EN 179., Mico Modula PE/ optional push pad - panic escape BS EN 1125/ emergency escape BS EN 179., Mico Elite PE/ optional push pad - panic escape BS EN 1125/ emergency escape BS EN 179., Mico Modula EM - electromechanical access control., Mico Elite EM - electro-mechanical access control.
Additional properties
Door frame profile
Fixed rebate frame.
Fixed rebate frame.
Meeting stiles
Single astragal.
Double astragal., Single astragal.
Hinges
Grade 14 security pinned concealed bearing hinge - satin stainless steel finish.
Grade 14 security pinned concealed bearing hinge - satin stainless steel finish.
Door closer
EN 1154, CE or UKCA marked.
EN 1154, CE or UKCA marked.
Sustainability data
Country of product manufacture
United Kingdom
United Kingdom
Material
Steel
Steel
