Summary

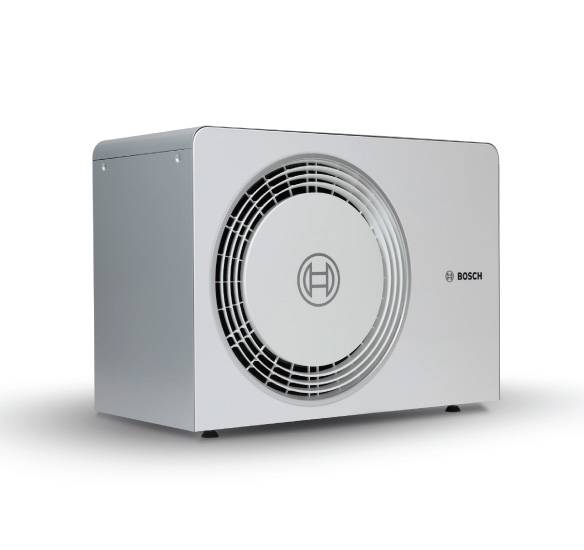

Monobloc heat pump outdoor unit.
Monobloc heat pump outdoor unit.
Monobloc heat pump outdoor unit.
Application
Suitable for renovation projects and new build dwellings.
Suitable for renovation projects and new build dwellings.
Suitable for renovation projects and new build dwellings.
Description
The 5800i AW outdoor unit brings a more sustainable future to home heating. With space-saving features, a compact footprint, modern design, and easy installation all built in. It makes life easier through its monobloc design, so you can access the control box, condenser, and evaporator easily – and carry out installations quickly.
Features and benefits:
- Ultra quiet with integrated diffuser and Quiet Mark certified. R290 refrigerant has a low global warming potential score of only 3.
- Can control from anywhere.
- Compact, space saving features.
- Easy to install, operate and maintain.
- Electrical system solution such as energy manager and photovoltaic.
- Flow temperatures up to 75°C for wider range of UK homes and SCOP up to 4.65.
- High flow temperature heat pump for greater hot water comfort.
- Modular design.
- Operates at an ErP class of 'A+++' for heating at 35°C and at 'A' for hot water performance.
The 5800i AW outdoor unit brings a more sustainable future to home heating. With space-saving features, a compact footprint, modern design, and easy installation all built in. It makes life easier through its monobloc design, so you can access the control box, condenser, and evaporator easily – and carry out installations quickly.
Features and benefits:
- Ultra quiet with integrated diffuser and Quiet Mark certified. R290 refrigerant has a low global warming potential score of only 3.
- Can control from anywhere.
- Compact, space saving features.
- Easy to install, operate and maintain.
- Electrical system solution such as energy manager and photovoltaic.
- Flow temperatures up to 75°C for wider range of UK homes and SCOP up to 4.65.
- High flow temperature heat pump for greater hot water comfort.
- Modular design.
- Operates at an ErP class of 'A+++' for heating at 35°C and at 'A' for hot water performance.
The 5800i AW outdoor unit brings a more sustainable future to home heating. With space-saving features, a compact footprint, modern design, and easy installation all built in. It makes life easier through its monobloc design, so you can access the control box, condenser, and evaporator easily – and carry out installations quickly.
Features and benefits:
- Ultra quiet with integrated diffuser and Quiet Mark certified. R290 refrigerant has a low global warming potential score of only 3.
- Can control from anywhere.
- Compact, space saving features.
- Easy to install, operate and maintain.
- Electrical system solution such as energy manager and photovoltaic.
- Flow temperatures up to 75°C for wider range of UK homes and SCOP up to 4.65.
- High flow temperature heat pump for greater hot water comfort.
- Modular design.
- Operates at an ErP class of 'A+++' for heating at 35°C and at 'A' for hot water performance.
Color
White
White
White
Finish
Semi-gloss
Semi-gloss
Semi-gloss
Material
Metal
Metal
Metal
Shape
Rectangle
Rectangle
Rectangle
Length
540 mm
540 mm
540 mm
Width
1100 mm
1100 mm
1100 mm
Height
800 mm
800 mm
800 mm
Warranty description
Seven year
Seven year
Seven year
SKU Code
8738213464, 8738213465, 8738213466
8738213464, 8738213465, 8738213466
8738213464, 8738213465, 8738213466
Specification
Classification data
Description
Monobloc heat pump outdoor unit.
Monobloc heat pump outdoor unit.
Monobloc heat pump outdoor unit.
Standards
-
-
-
Safety and environmental
To BS EN 378, EN 1717 and EU Directive 2014/35/EU Low Voltage Directive.
To BS EN 378, EN 1717 and EU Directive 2014/35/EU Low Voltage Directive.
To BS EN 378, EN 1717 and EU Directive 2014/35/EU Low Voltage Directive.
Test requirements
To BS EN 14511.
To BS EN 14511.
To BS EN 14511.
Electrical safety
To BS EN 60335-2-40.
To BS EN 60335-2-40.
To BS EN 60335-2-40.
Heat pump type
Monobloc.
Monobloc.
Monobloc.
Mode
Cooling and heating.
Cooling and heating.
Cooling and heating.
Coefficient of performance (minimum)
2.51.
2.89.
2.36.
Output
-
-
-
Heating
6.8 kW.
4.99 kW.
7.97 kW.
Cooling
5.25 kW (maximum).
4.36 kW (maximum).
5.50 kW (maximum).
Fan
-
-
-
Configuration
Horizontal.
Horizontal.
Horizontal.
Electrical supply type
Single phase.
Single phase.
Single phase.
Compressor
-
-
-
Type
R2 rotary.
R2 rotary.
R2 rotary.
Sealing
Hermetically sealed.
Hermetically sealed.
Hermetically sealed.
Drive
Inverter driven.
Inverter driven.
Inverter driven.
Accessories
Alarm buzzer., Dew point sensor., Floor stand., Heating cable if there is a risk of frost., Humidity sensor., Small stand cover., Wall brackets., Wired room thermostat., Wireless and battery-powered thermostat., Condensation heating cable 2500 mm., Condensation heating cable 3500 mm., Condensation heating cable 5500 mm.
Alarm buzzer., Dew point sensor., Floor stand., Heating cable if there is a risk of frost., Humidity sensor., Small stand cover., Wall brackets., Wired room thermostat., Wireless and battery-powered thermostat., Condensation heating cable 2500 mm., Condensation heating cable 3500 mm., Condensation heating cable 5500 mm.
Alarm buzzer., Dew point sensor., Floor stand., Heating cable if there is a risk of frost., Humidity sensor., Small stand cover., Wall brackets., Wired room thermostat., Wireless and battery-powered thermostat., Condensation heating cable 2500 mm., Condensation heating cable 3500 mm., Condensation heating cable 5500 mm.
Refrigerant
R290.
R290.
R290.
Additional properties
Third party certification:
Quiet Mark.
Quiet Mark.
Quiet Mark.
SoundPressure
42 ErP at 5000 mm (maximum).
40 ErP at 5000 mm (maximum).
42 ErP at 5000 mm (maximum).
Sustainability data
Country of material origin
United Kingdom
United Kingdom
United Kingdom
Country of product manufacture
United Kingdom
United Kingdom
United Kingdom
Material
Metal
Metal
Metal
