Summary

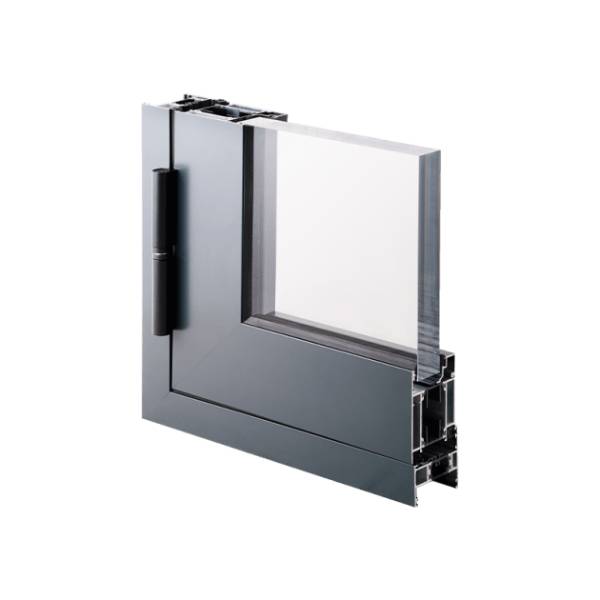

Aluminium residential rebated swing doors.
Aluminium residential rebated swing doors.
Application
Suitable for light and medium traffic environments.
Suitable for light and medium traffic environments.
Description
Available in a wide range of styles and formats, the aluminium 58BD entrance door systems are suitable for both light and medium-duty use. Designed with security and flexibility front of mind, every door in the range is available in single and double configurations making them suitable for almost any application.
Features and benefits:
- Available in single and double door configurations.
- Slim sightlines and flush aesthetics.
- Multi-point locking mechanism.
- Available in a range of single or dual colour and anodized finishes.
- Tested to PAS 24.
Available in a wide range of styles and formats, the aluminium 58BD entrance door systems are suitable for both light and medium-duty use. Designed with security and flexibility front of mind, every door in the range is available in single and double configurations making them suitable for almost any application.
Features and benefits:
- Available in single and double door configurations.
- Slim sightlines and flush aesthetics.
- Multi-point locking mechanism.
- Available in a range of single or dual colour and anodized finishes.
- Tested to PAS 24.
Product certifications
- Axalta Approved Architectural Applicator Certificate Alesta® Powder Coatings
- Axalta Approved Architectural Applicator Certificate Alesta® Powder Coatings
Finish
Anodized, Powder-coated, Coated, Gloss, Matt, Mill, Metallic, Pre-treated, Painted, Satin, Semi-gloss
Anodized, Powder-coated, Coated, Gloss, Matt, Mill, Metallic, Pre-treated, Painted, Satin, Semi-gloss
Material
Aluminium, Glass
Aluminium, Glass
Shape
Rectangle
Rectangle
Length
Bespoke
Bespoke
Width
Bespoke
Bespoke
Height
Bespoke
Bespoke
Warranty description
Ten year
Ten year
Specification
Classification data
Configuration
Single-leaf, open-in., Single-leaf, open-out., Double-leaf, open-in., Double-leaf, open-out.
Single-leaf, open-in., Single-leaf, open-out., Double-leaf, open-in., Double-leaf, open-out.
Doorset size
-
-
Performance
-
-
Strength and durability
To BS EN 1191, 50 000 cycles.
To BS EN 1191, 50 000 cycles.
Thermal
1.3 W/m²K (double glazing).
1.1 W/m²K (triple glazing).
1.6–1.7 W/m²K (double glazing).
1.4 W/m²K (triple glazing).
Intruder resistance
-
-
Minimum requirement
To PAS 24.
Secured by Design certification.
To PAS 24.
Secured by Design certification.
Conformity
Certification by accredited third-party certification body. Type testing not permitted.
Certification by accredited third-party certification body. Type testing not permitted.
Frame
-
-
Material
Aluminium.
Aluminium.
Threshold
Standard., Low threshold.
Standard., Low threshold.
Perimeter seals or inserts
AluK gaskets.
AluK gaskets.
Finish
-
-
Coating
Anodized., Powder-coated.
Anodized., Powder-coated.
Frame accessories
Barrel hinges.
Barrel hinges.
Door leaf
-
-
Thickness
58 mm., 70 mm.
58 mm., 70 mm.
Core
Manufacturer's standard.
Manufacturer's standard.
Material
Aluminium.
Aluminium.
Glazing
-
-
Type
Double glazing., Triple glazing.
Double glazing., Triple glazing.
Beading
-
-
Type
Chamfered., Square.
Chamfered., Square.
Material
Aluminium.
Aluminium.
Fixing
Clip in bead.
Clip in bead.
Finish
-
-
Coating
Anodized., Powder-coated.
Anodized., Powder-coated.
Internal colour
As External., Other.
As External., Other.
Film thickness (minimum)
60 microns (minimum average).
60 microns (minimum average).
Hardware
Multi-point locking.
Multi-point locking.
Additional properties
Maximum weight
-
-
Sightline
-
-
Certification
Q-Mark; Qualicoat; Secured by Design; PAS24.
Q-Mark; Qualicoat; Secured by Design; PAS24.
Sustainability data
Contains Red List materials
No
No
Country of product manufacture
United Kingdom
United Kingdom
Material
Aluminium, Glass
Aluminium, Glass
A1–A3 ('Production stage')
Embodied carbon as defined in BS EN 15804
Lower emissions
Lower emissions
Normalized unit
2 kg CO₂ eq/kg
2 kg CO₂ eq/kg
Declared unit
2.0 kg CO₂ eq/kg
2.0 kg CO₂ eq/kg
Recyclability
95%
95%
Recycled content
80 %
80 %
