Summary
Steel curtain walling system.
Steel curtain walling system.
Application
Facade applications, glass roofs and conservatories.
Facade applications, glass roofs and conservatories.
Description
Steel curtain walling system with integrated screw channel.
Available in two variants and a range of system types.
Features and benefits:
- Integrated drainage at the continuous gasket in three levels.
- Can be assembled as a polygon curtain wall up to 45°.
- A range of profiles are available dependent on project requirements.
- Extensive system accessories.
- Provides protection against corrosion.
- System uses isothermal lines to avoid the formation of condensate and control surface temperature.
- THERM+ S-I:

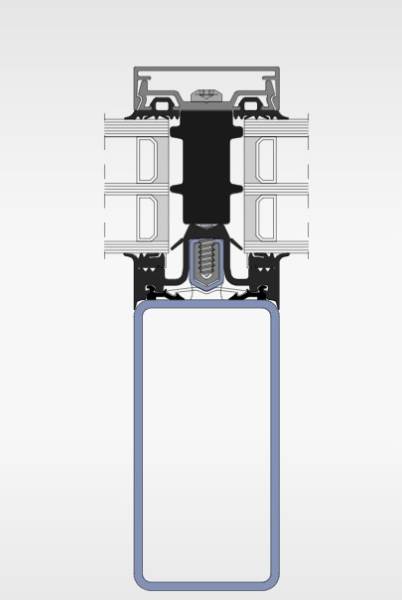

- Stepless thermal insulation by means of RAICO Insulating Block Technology.
- Total load chain with approved connection, from the welding with the supporting structure and the glass load transmission to the screwing of the pressure profile.
- Safe and easy glass load transmission for heavy panes up to 1500 kg.
THERM+ FS-I:
- Sharp edged profiles due to small radii.
- No welding needed for the curtain wall construction.

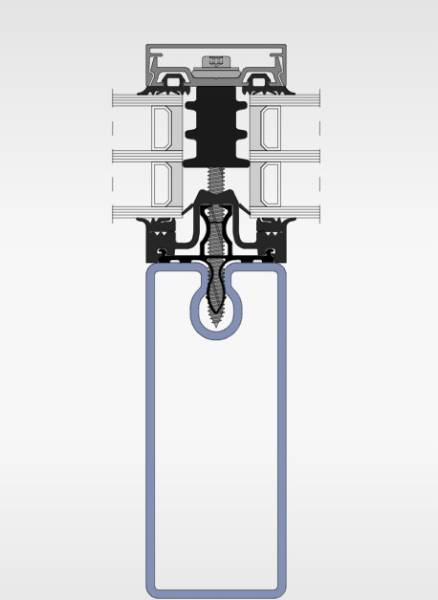

- Integrated screw channel in tube reduces planning, manufacturing and installation costs.
- Strip galvanizing of the profiles.
- Profiles are all suited for mullion and transom.
- Safe and easy glass load transmission for heavy panes up to 1000 kg.
Steel curtain walling system with integrated screw channel.
Available in two variants and a range of system types.
Features and benefits:
- Integrated drainage at the continuous gasket in three levels.
- Can be assembled as a polygon curtain wall up to 45°.
- A range of profiles are available dependent on project requirements.
- Extensive system accessories.
- Provides protection against corrosion.
- System uses isothermal lines to avoid the formation of condensate and control surface temperature.
- THERM+ S-I:
- Stepless thermal insulation by means of RAICO Insulating Block Technology.
- Total load chain with approved connection, from the welding with the supporting structure and the glass load transmission to the screwing of the pressure profile.
- Safe and easy glass load transmission for heavy panes up to 1500 kg.
THERM+ FS-I:
- Sharp edged profiles due to small radii.
- No welding needed for the curtain wall construction.
- Integrated screw channel in tube reduces planning, manufacturing and installation costs.
- Strip galvanizing of the profiles.
- Profiles are all suited for mullion and transom.
- Safe and easy glass load transmission for heavy panes up to 1000 kg.
Color
Other
Other
Finish
Galvanized, Other
Galvanized, Other
Material
Steel, Glass
Steel, Glass
Shape
Other
Other
Length
Bespoke
Bespoke
Width
50 mm, 56 mm, 76 mm, 96 mm
50 mm, 56 mm, 76 mm, 96 mm
Height
Bespoke
Bespoke
SKU Code
S-I, FS-I
S-I, FS-I
Specification
Classification data
System performance
To BS EN 13830.
To BS EN 13830.
Framing
-
-
Frame members
Steel curtain wall frame sections.
Steel curtain wall frame sections.
Fasteners
Screw channels.
Screw channels.
Cladding units
-
-
Panels and facings
-
-
Material
Manufacturer's standard.
Manufacturer's standard.
Thermal insulation
Not required., RAICO insulating blocks.
Not required., RAICO insulating blocks.
Fasteners
T-connectors.
-
Perimeter seals
Exterior gasket., Transom and mullion gaskets., Interior gasket.
Exterior gasket., Transom and mullion gaskets., Interior gasket.
System accessories
Not required., Solar protection fastening., Scaffolding fixation., Fixture unit., Fastening brackets., Suction disc., Other.
Not required., Solar protection fastening., Scaffolding fixation., Fixture unit., Fastening brackets., Suction disc., Other.
Fasteners
-
Standard T-connector SC., Ladder T-connector SCL.
Additional properties
Width
50 mm., 56 mm., 76 mm., 96 mm.
50 mm., 56 mm.
System types
Manufacturer's standard., Passive House., Structural SG2., Fire protection (E30/ EW30/ EI30)., Burglar resistant.
Manufacturer's standard., Passive House., Structural SG2., Fire protection (E30/ EW30/ EI30)., Burglar resistant.
Ventilation
Pressure compensation via mullion – connection below/ on top., Pressure compensation via mullion and synthetic sealing piece., Pressure compensation of extra large transoms via pressure and cover profiles.
Pressure compensation via mullion – connection below/ on top., Pressure compensation via mullion and synthetic sealing piece., Pressure compensation of extra large transoms via pressure and cover profiles.
Thermal transmittance (U-Value)
0.78 W/(m²·K).
0.75 W/(m²·K).
Wind resistance
2.5–3.75 kN/m².
2.5–3.75 kN/m².
Impact resistance
Interior I5, Exterior E5.
Interior I5, Exterior E5.
Air permeability
AE (>600).
AE (>600).
Watertightness
RE 1950.
RE 1950.
Sound insulation
Up to 47 Rw+Ctr (dB).
Up to 47 Rw+Ctr (dB).
Certification
Deutsches Institut für Bautechnik (DIBt) Z-14.4-446.
European Technical Approval (ETA) 19/0554 and 19/0555.
European Technical Approval (ETA) 19/0554 and 19/0555.
European Technical Approval (ETA) 19/0554 and 19/0555.
Sustainability data
Material
Steel, Glass
Steel, Glass
