Summary
Frameless glass top or side-mount balustrade system, suitable for loadings up to 1.5 kN.
Frameless glass top or side-mount balustrade system, suitable for loadings up to 1.5 kN.
Application
Can be used in both interior and exterior applications, withstands a linear load of up to 1.5 kN, and is appropriate for glass thicknesses up to 21.52 mm.
Can be used in both interior and exterior applications, withstands a linear load of up to 1.5 kN, and is appropriate for glass thicknesses up to 21.52 mm.
Description
Frameless glass top or side-mount balustrade system, suitable for loadings up to 1.5 kN.
Features and benefits:
- Slimline, elegant design and low-maintenance.
- Uses TURBOFLEX mounting technology.
- Extension pin location holes.
- Build-in drainage.
- Can be used with 2.0 kN top covers.
- For glass thicknesses: 15–21.52 mm.
- Easy installation.
- Align glass by hand.
- Screw fixing.
- Tested in accordance with BS 6180.
Dependent on design, components can include:
TL-6620:

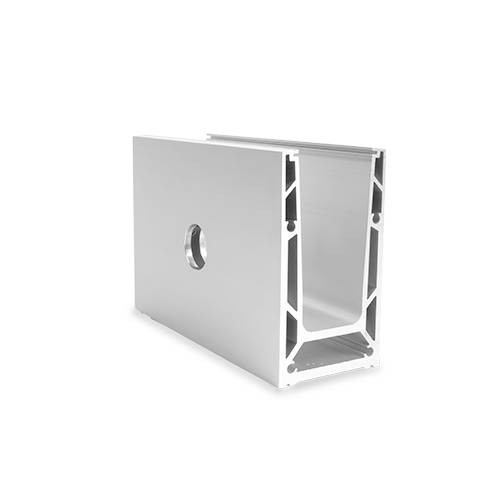

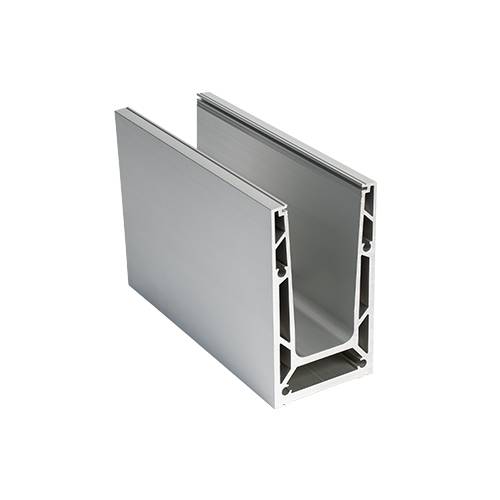

- Glass profiles (U-profile). 135 x 75 mm.
- Inside/ outside corners 90°. 125 x 200 mm.
- End caps.
- End caps for staircase.
- Extension pin.
- Fixing anchors.
- FLEXFIT glass adjustment tool.
TL-6621:
- Glass profiles (U-profile). 135 x 75 mm.
- Inside/ outside corners 90°. 125 x 200 mm.
- Cover cap.
- End caps.
- End caps with cover cap.
- End caps for staircase with cover cap.
- Extension pin.
- Fixing anchors.
- FLEXFIT glass adjustment tool.
Frameless glass top or side-mount balustrade system, suitable for loadings up to 1.5 kN.
Features and benefits:
- Slimline, elegant design and low-maintenance.
- Uses TURBOFLEX mounting technology.
- Extension pin location holes.
- Build-in drainage.
- Can be used with 2.0 kN top covers.
- For glass thicknesses: 15–21.52 mm.
- Easy installation.
- Align glass by hand.
- Screw fixing.
- Tested in accordance with BS 6180.
Dependent on design, components can include:
TL-6620:
- Glass profiles (U-profile). 135 x 75 mm.
- Inside/ outside corners 90°. 125 x 200 mm.
- End caps.
- End caps for staircase.
- Extension pin.
- Fixing anchors.
- FLEXFIT glass adjustment tool.
TL-6621:
- Glass profiles (U-profile). 135 x 75 mm.
- Inside/ outside corners 90°. 125 x 200 mm.
- Cover cap.
- End caps.
- End caps with cover cap.
- End caps for staircase with cover cap.
- Extension pin.
- Fixing anchors.
- FLEXFIT glass adjustment tool.
Product certifications
- Load Tolerance Test Certificate UK243504 Ref 1 - OnLevel Ltd
- Load Tolerance Test Certificate UK243504 Ref 2 - OnLevel Ltd
- Load Tolerance Test Certificate UK243504 Ref 1 - OnLevel Ltd
- Load Tolerance Test Certificate UK243504 Ref 2 - OnLevel Ltd
Color
Silver, Other
Silver, Other
Finish
Mill, Natural, Coated
Mill, Natural, Coated
Material
Aluminium, Glass
Aluminium, Glass
Shape
Other
Other
Length
Bespoke
Bespoke
Width
Bespoke
Bespoke
Height
Bespoke
Bespoke
Warranty description
Ten year
Ten year
SKU Code
TL-6620, TL-6621
TL-6620, TL-6621
Specification
Classification data
Infills
Laminated glass sheets
Laminated glass sheets
Fixing to parent structure
Internal - fixing anchor (91.3501.210.81)., External - fixing anchor (91.3501.210.30)., Other.
-
Fixing to parent structure
-
Internal - fixing anchor (91.3521.210.81)., External - fixing anchor (91.3521.210.30)., Other.
Additional properties
Standards
To BS 6180.
To BS 6180.
Mounting
Top mount.
Side mount.
Loading
Up to 1.5 kN.
Up to 0.74 kN.
Profile finish
Mill finish., Plain aluminium., RAL.
Mill finish., Plain aluminium., RAL.
Accessories
Not required., Spacer., Extension pin.
Not required., Spacer., Cover., Extension pin.
Sustainability data
Country of product manufacture
Germany
Germany
Material
Aluminium, Glass
Aluminium, Glass
