Intended use

The support arm is used as a support for sitting down or getting

up from a toilet, or for sideways transfer from a wheelchair.

Where used

For indoor use in a wet environment, such as a bathroom or a

washroom. Suitable for use in accessible toilets, schools, hygiene rooms, nursing homes, leisure centres, changing places and private homes.

Ergonomy

The oval shape gives an easy and comfortable surface to lean and

push against.

The end of the support arm is enlarged so that it is easier to

pull forward from a sitting position and also provides a clear sense of where the support arm ends.

Soft and slip-resistant material that has a warm feel.

Product capacity

Maximum load: 150 kg.

When the support arm is loaded with 150 kg, each wall fastener

is loaded with 196 kg.

PLUS support arms have

been tested statically with 700 kg (close to the wall), 425 kg (in the middle) and 225 kg (the outermost point).

Declaration of conformity

CE MDR This product is in compliance with all relevant

requirements of: - Regulation (EU) 2017/745 on medical devices.

Warranty

Pressalit makes a commitment to remedy material and

manufacturing defects for a period of five years from the invoicing date.

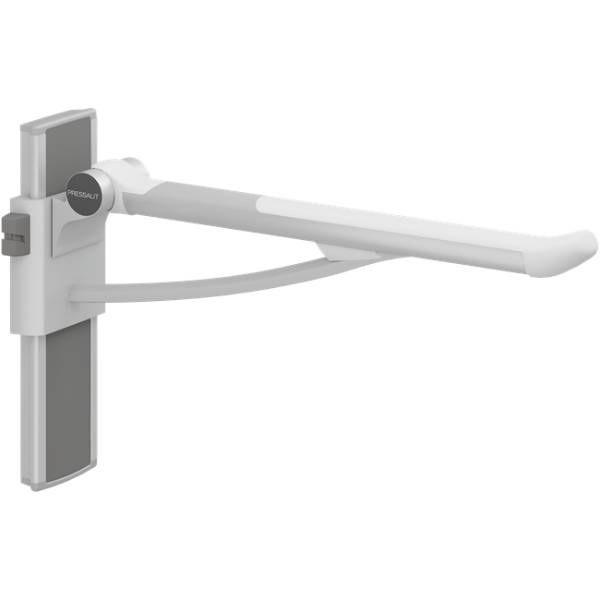

A hinged support arm with an adjustable wall track mounting. Wall track mounted support arms provide vertical adjustment meeting the demands of changing user requirements.

Features and benefits:

• Detachable and foldable.
• The underside is shaped for the mounting of various accessories.
• Folds against the wall.
• Counter-balanced, ergonomically shaped to provide a clear sense of where the support arm ends.
• Has a soft close safety feature.
• TUV product certified.
• Red Dot Product Design Award winner.
• Maximum load: 150 kg.
• Height adjustment achieved by simply raising and lowering the arms up or down the vertical wall track.
• A lever lock is provided for hinged arms mounted on horizontal wall track.
• PLUS hinged support arms are primarily constructed of 10-micrometer anodized aluminium, with a non-slip gripping surface made of soft SEBS incorporating a glass-reinforced nylon core.
• Internal components and fasteners are primarily made of stainless steel.
• The barrel hinge is capped with ABS.
• Length 850mm (projection from wall 880mm) 0r 700mm length (projection from wall 730mm).

Accessories

• R9321 paper holder.
• R9311000 privacy curtain.
