Summary

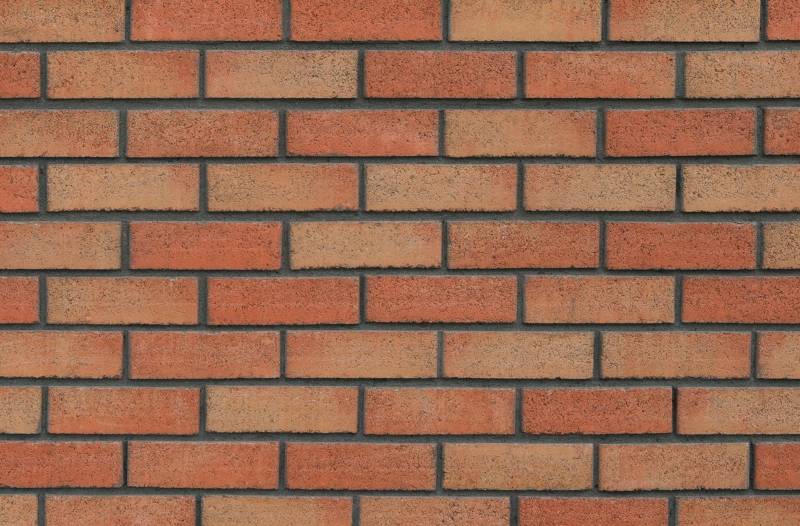

Concrete facing brick.
-
-
Application
Suitable for above ground main external wall construction and boundary walls regardless of exposure conditions.
-
-
Description
Concrete facing brick.
Features and benefits:
- Available in eight specially designed colours, including subtle colour blends that create a warm, natural appearance and complement the paving range.
- BREEAM rating A+.
-
-
Product certifications
-
-
Digital objects
-
-
Color
Red, Gold, Grey
-
-
Finish
Smooth
-
-
Material
Concrete
-
-
Shape
Rectangle
-
-
Length
215 mm
-
-
Width
100 mm
-
-
Height
65 mm
-
-
Specification
Classification data
Standard
To BS EN 771-3.
-
-
Brick description
Perforated facing brick (three holes).
-
-
Appearance
Smooth.
-
-
Configuration
Group 1.
-
-
Compressive strength
-
-
-
Mean value
>22 N/mm².
-
-
Category
0.15 N/mm².
-
-
Freeze-thaw resistance
F2 (severe exposure).
-
-
Thermal conductivity
Protected 1.59 W/m·K; exposed 1.70 W/m·K.
-
-
Thermal resistance
Manufacturer's standard.
-
-
Recycled content
Not less than 8%.
-
-
Work sizes (length x width x height)
215 x 100 x 65 mm.
-
-
Tolerance category
Category D1.
-
-
Density
-
-
-
Gross dry density
1930 kg/m³.
-
-
Net dry density
2220 kg/m³.
-
-
Reaction to fire
A1.
-
-
Water absorption by capillarity
2 g/m²/s.
-
-
Water vapour permeability
5 / 15 µ.
-
-
Additional properties
Efflorescence
Minimum 12 hour vapour curing to significantly reduce the possibility of efflorescence.
-
-
Shrinkage
0.44 mm/m.
-
-
Weight
2.7 kg per brick (average).
-
-
Mortars and expansion Joints
To BS 5628-3:2005.
-
-
Bed reinforcement
To BS 5628-3:2005.
-
-
EnergyUsed
100%.
-
-
WaterUsed
100%.
-
-
BREEAM rating
A+.
-
-
Colour
Autumn gold.
-
-
CarbonFootprint
0.0
-
-
Sustainability data
Country of material origin
United Kingdom
-
-
Country of product manufacture
United Kingdom
-
-
Material
Concrete
-
-
A1–A3 ('Production stage')
Embodied carbon as defined in BS EN 15804
Normalized unit
-
-
-
Declared unit
0.32 kg CO₂ eq/m²
Certified
-
-
Recyclability
100%
-
-
