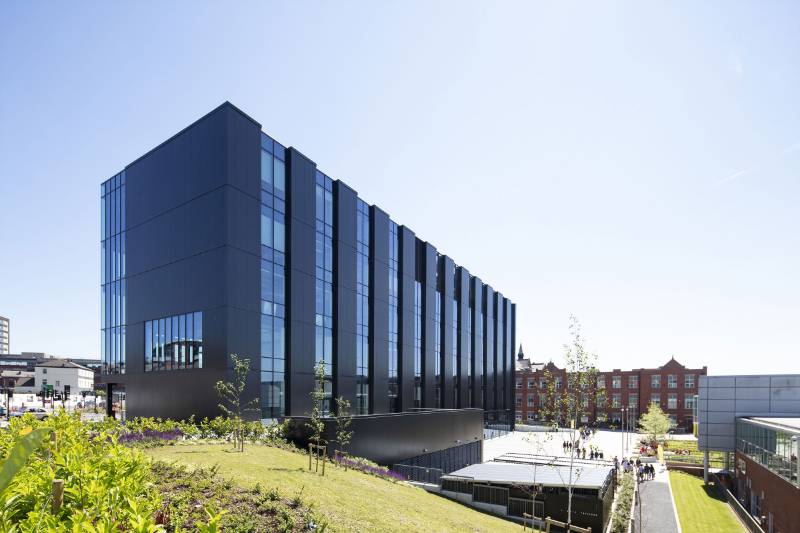

As a key part of the University of Lancaster's Preston Campus, the £32 million Engineering Innovation Centre provided the university and Lancashire based manufacturers with state-of-the-art teaching and research facilities. This helps to train an extra 500 graduates, including an increasing number of female students, gaining degrees in subjects such as mechanical, energy technologies and aerospace engineering. Throughout the entire project, there were a number of technical challenges that needed to be met. These include the building's proximity to a very busy roundabout, the floor to floor heights, physical security, the expected levels of solar gain as well as design detailing requirements. Having a total glazed area of 3,100m2, the aluminium curtain wall carries over 40 different types of IG units, along with high density foam inserts utilised alongside decoupling joints in the mullion section - achieving 50 Dnfw flanking sound reduction, as well as 37 dB sound reduction for noise outside the building. In addition to achieving high levels of thermal insulation, being fabricated from aluminium, the curtain walling frame elements can be recycled, helping to achieve the BREEAM rating of Excellent.

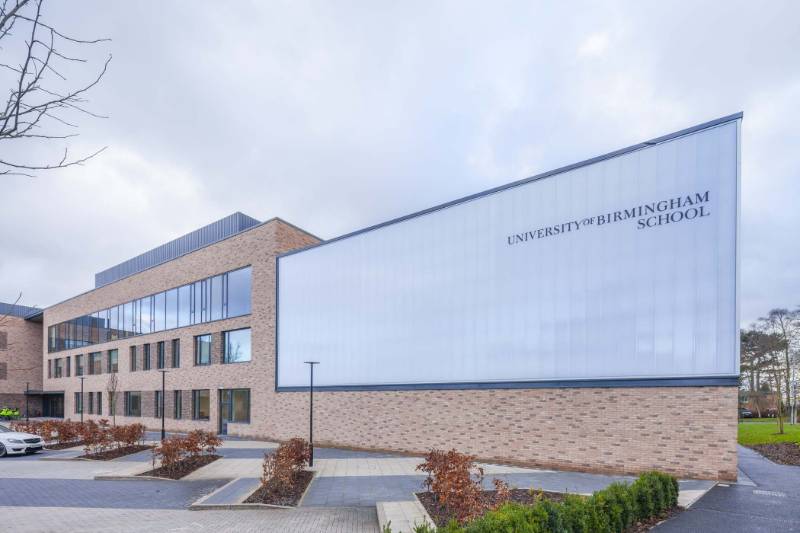

The University of Birmingham School was the first academy free secondary school to be assigned to a particular university. This is a new model of education, bringing together the best of university research and teaching best practice in secondary education. Technal aluminium windows were specified for this project in a 210mm high module to achieve the required available air flow and light transmission. Aluminium Commercial Doors were specified to achieve robustness and increased thermal insulation. Aluminium Curtain Walling was also used to deliver more natural light into the project without sacrificing weather performance, thermal insulation and ease of fabrication.

Verde is situated on the junction of Pitt Street and Wellington Street in Newcastle. Comprising of two buildings forming a V-shape, the facade runs parallel to both streets. These two structures are clad in green glazed terracotta tile laid horizontally across both buildings with a selection of projecting tiles to create a sense of movement and signalling the entrance to the development. For the glazing specification, the building was thermally modelled as part of the Part L Assessment with performance requirements for the windows generated by its outcomes and outlined by the projects building services engineer.

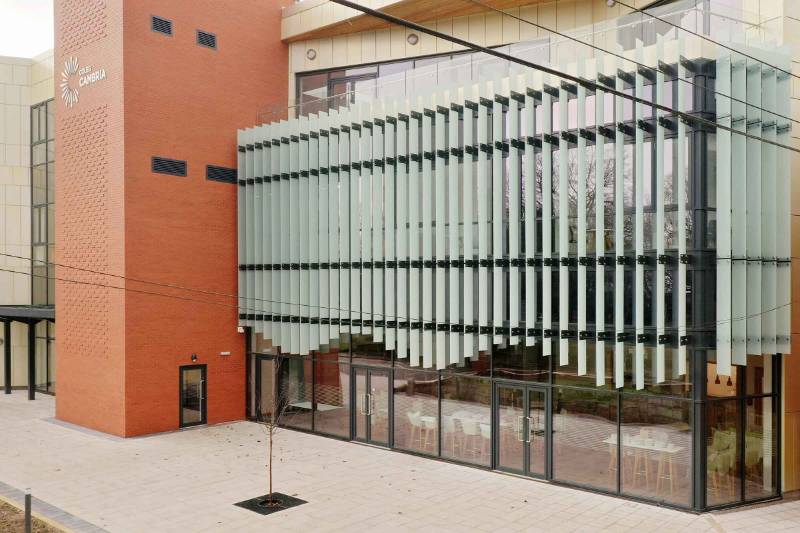

Located on the north side of Wrexham town centre, the BREEAM excellent Yale Campus one of the largest projects undertaken by Coleg Cambria across its network of six campus sites, which has a base of 7,000 full time and 20,000 part time students.Maximising daylight and ventilation, the glazed façade spans 1,200 sqm across the building. Specified for proven performance and thermal insulation, TECHNAL curtain walling offers a fully capped, mullion-drained solution. With an aluminium substructure width of 52mm, it creates a slim sightline while also providing the necessary strength and inertia requirements.Contributing to higher credits for the critical Energy 01 part of BREEAM, which is concerned with the reduction of energy use and carbon emissions, TECHNAL A-rated Dualframe 75 Si windows offer exceptional energy efficiency. For the Yale campus, a U-value of 1.1W/m2K was achieved. As well as being inserted within the curtain walling, the windows have also been fitted in a vertical panel format to create a striking rectangular pattern within the gold cladding.
