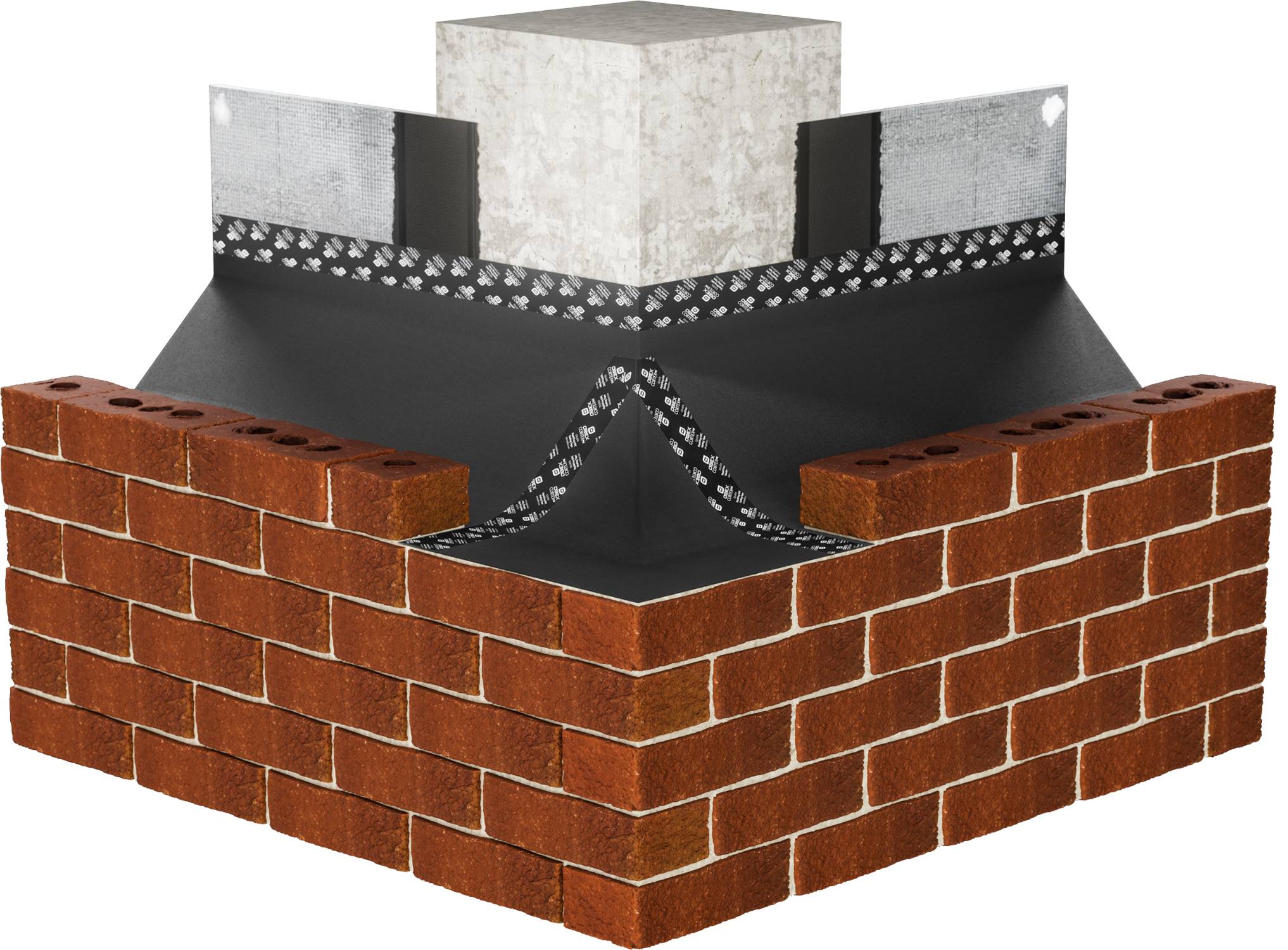

0241FR RapidTray Cavity Tray System - Cavity Tray

Name: 0241FR RapidTray Cavity Tray System - Cavity Tray
Brand: OBEX Protection Ltd
SKU: 5PYcRWiZhJUZ41W38mweYg

Verified by manufacturer 4 days ago

OBEX Protection Ltd

Glass fibre cavity tray/ damp proof course (DPC).

Jump to:

+44 (0)1905 337800 Website

Application

Suitable for use in cavity tray applications.

Description

The OBEX RapidTray system is a highly flexible and adaptable cavity tray solution, achieving a Class A2 fire classification. The product incorporates a pre-applied stainless steel termination bar for faster and easier installation. The membrane used is the 0240FR RapidTray DPC System membrane, which is available as a plain version without the termination strip.

Its design and testing virtually eliminates the need for mastic or paste adhesives, predominantly utilising high performance single and double-sided tapes to create water-resistant seals. As a result, RapidTray has a faster, cleaner, and more cost-efficient installation process.

Independently water-flow tested by the BBA and achieving Agrement certification by KIWA BDA, RapidTray sets a new benchmark as the leading flexible cavity tray system on the market. The RapidTray system is complete with pre-formed components such as external and internal corners.

Features and benefits:

20 m length.
50–1500 mm width.
Flexible, A2-s1,d0 fire classification (EN 13501-1).
Pre-applied banding termination bar.
Pre-drilled holes at 150 mm centres.
Water flow tested by the BBA.
0 mm deformation under load.
Non-silicone surfaces for adhering tapes.
Pre-formed external and internal corners to suit cavity sizes from 50–1000 mm (in 50 mm increments).
No paste/ mastic required.*

_{*Paste/mastic may be required for sealing to silicone-based surfaces}

General information

Color	Black White
Finish	Coated
Material	Glass Fibre Polymer Stainless steel
Shape	Rectangle
Length	20000 mm
Width	50 mm 10 mm 150 mm 200 mm 250 mm 300 mm 350 mm 400 mm 450 mm 500 mm 550 mm 600 mm 650 mm 700 mm 750 mm 800 mm 850 mm 900 mm 950 mm 1000 mm 1050 mm 1100 mm 1150 mm 1200 mm 1250 mm 1300 mm 1350 mm 1400 mm 1450 mm 1500 mm Show more
Height	0.4 mm

Uniclass	Pr_25_57_21_66 Preformed cavity traysPrimary
CAWS	F30/56 Preformed cavity trays F30/320 Damp-proof courses – plastics F30/370 Preformed cavity trays F30/46 Damp-proof courses – plastics

SKU Code	0241FR

Specification data - Preformed cavity trays

Classification data
Material	Woven glass fibre with polymer coatings and filmic liners.
To fit cavity width	50–100 mm. 100–150 mm. 150–200 mm. 200–250 mm. 250–300 mm. 300–350 mm. 350–400 mm. 400–450 mm. 450–500 mm. 500–550 mm. 550–600 mm. 600–650 mm. 650–700 mm. 700–750 mm. 750–800 mm. 800–850 mm. 850–900 mm. 900–950 mm. 950–1000 mm. 1000–1050 mm. 1100–1150 mm. 1150–1200 mm. 1200–1250 mm. 1250–1300 mm. 1300–1350 mm. 1350–1400 mm. 1400–1450 mm. 1450–1500 mm.
Height	0.4 mm.
Length (effective)	20 000 mm.
Accessories	Stainless steel termination bar.
Reaction to fire	To EN 13501-1, A2-s1,d0.
Watertightness	To EN 1928, 2 kPa (pass).
Joint strength	To EN 12317-2, 611 N/50mm. Guidance for specification option: After aging: 526 N/50mm.
Resistance to impact	To EN 12691, 1000 mm (pass).
Low temperature resistance	To EN 495-5, -20°C to +20°C (pass).
Tear resistance	To EN 12310-1, 156 N.
Water vapour transmission	To EN 1931, 27 009 μ.
Sd value	To EN 1931, 10.8 m.
Resistance to static loading - 20kg load	To EN 14909 Annex B, 20 kg (pass).
Chemical resistance	To EN 1847, 2 kPa for 24 hours (pass). Manufacturer guidance Durability against chemicals (alkali).
Deformation capability	To EN 14909, 0 mm.
UV resistance	To EN 1928, 6 months.
