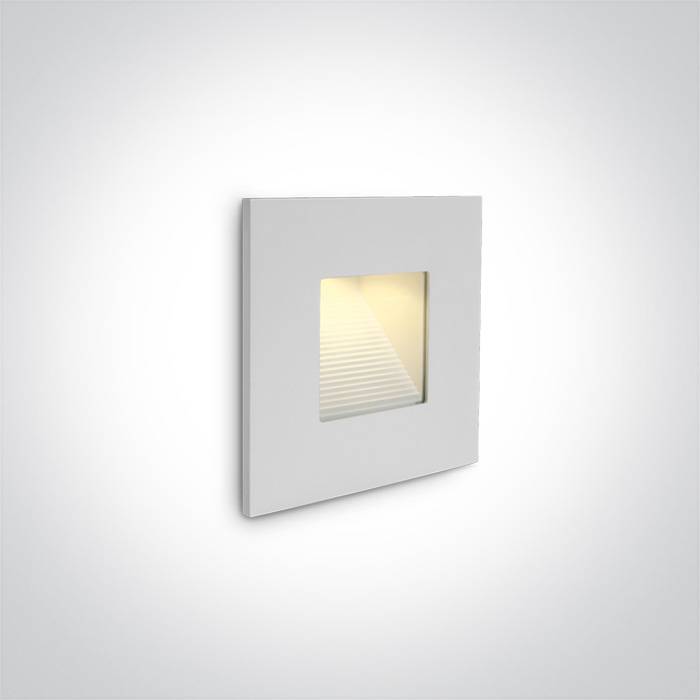

1W Indoor and Outdoor Recessed Wall IP44 LED Light for Step and Corridor 3000K 68006N/W
Verified by manufacturer 7 months ago
1 W LED wall recessed IP44 light, suitable for both indoor and outdoor installation especially step and corridor illumination. Fascia's must be ordered separately order code: 050176/ W,B,G,BBS
Application
Recessed wall luminaire suitable for both indoor and outdoor installation especially steps and corridors.
Description
1 W LED wall recessed IP44 light, suitable for both indoor and outdoor installation especially step and corridor illumination.
Features and benefits:
- Complies with EN 60598-1 and any other specific standards.
- Complete with no-dimmable LED driver.
- Choice of four cover colours.
- IP44.
- 3000 K.
- 'Dark light'.
General information
Color | White Grey Black Gold |
Material | Metal Guidance for specification option: Die cast. |
Shape | Square |
Length | 32 mm Guidance for specification option: Depth. |
Width | 85 mm |
Height | 85 mm |
Warranty description | Three year |
Uniclass | |
CAWS | V90/510 General purpose luminaires V90/510 Luminaires |
Specification data - Recessed luminaires
Standards | To EN 60598-1.Guidance for specification option: And any other specific standards; consult manufacturer for details. |

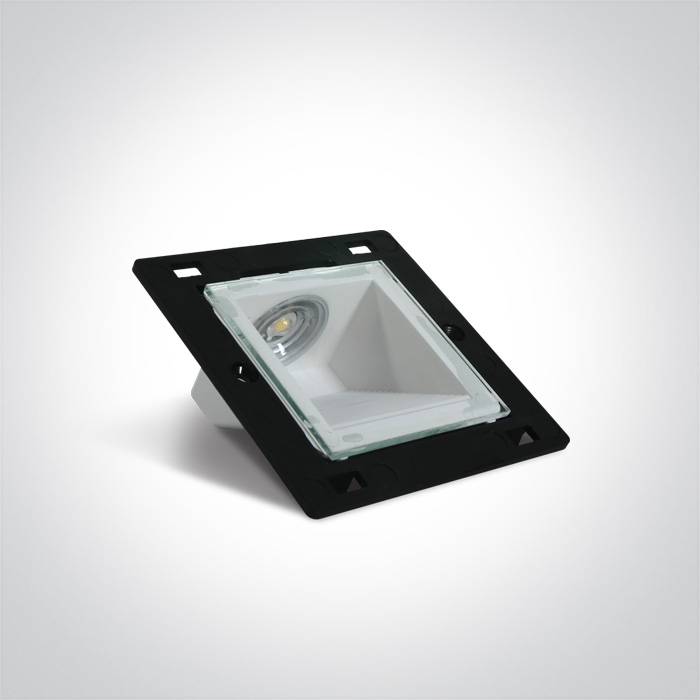

Luminaire description | Square recessed LED wall light.Guidance for specification option: Requires 70 x 70 mm cut-out hole, 60 mm deep. Bridgelux SMS 3535 LED as standard. |
Classification | |
Ingress protection (minimum) | IP44. |
Circumstances of use | Normal.Guidance for specification option: Indoor or outdoor use, especially steps or corridors. |
Controlgear position | Integral within luminaire.Guidance for specification option: LED driver, IP20. |
Nominal voltage | 220–240 V a.c.Guidance for specification option: 50/ 60 Hz. |
Luminaire power factor | 0.5. |
LED luminaires | |
Safety standard | Class III. |
Initial LED luminaire efficacy (minimum) | 80 lm/W. |
Wattage | 1 W. |
Colour temperature | 3000 K. |
Colour rendering index (Ra) | 90. |
Beam angle | Manufacturer's standard.Guidance for specification option: Fixed, down light. |
Accessories | 050176/W white cover.050176/B black cover.050176/G grey cover.050176/BBS brushed brass cover. |
Output | 80 lm. |
