2 Door Wall Unit

Verified by manufacturer over a year ago

Nu-Style Products Ltd

Working with architects and main contractors, we provide various furniture solutions for the Healthcare market.

Jump to:
BOS
+44 (0)1224 823000 Website

Application

Toilets, schools, nursery, offices, hospitals, airports.

Description

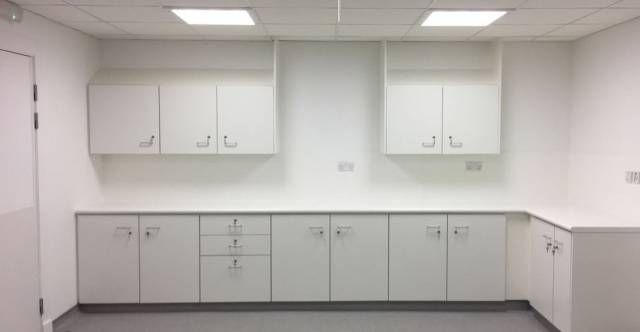

Wall unit suitable for use in Healthcare applications.


Features and benefits:

  • Compatible with other products in the Nu-Style Healthcare range.
  • Supplied fully assembled with one adjustable shelf.
  • Each door supplied with one lock, one handle and two hinges.
  • Available in a wide range of colours.

General information

Color

-

Manufacturer guidance

18 mm-thick MFC:

A selection of colours from the Swiss Krono One World Collection is available; consult literature for details.


20 mm-thick HPL:

A selection of colours from the Formica Fundamentals range is available, as well as colours by Formica and Polyrey; consult literature for details.

Finish

Melamine-faced

Laminate

Size

800 x 720 mm

Guidance for specification option:

Width x height.

1200 x 720 mm

Guidance for specification option:

Width x height.

Uniclass

Pr_40_30_87_46 Laboratory storage unitsPrimary

CAWS

N10/130 Laboratory furniture

N10/135 Storage and display units

N11/10 Fitted base units and wall units

N11/320 Fitted wall units

Specification data - Laboratory storage units

Form

Wall mounted cupboard units.

Dimensions

800 x 720 mm.

Guidance for specification option:

Width x height.

1200 x 720 mm.

Guidance for specification option:

Width x height.

Material

18 mm-thick melamine-faced chipboard (MFC).

Guidance for specification option:

Swiss Krono; square edged/ lipped with 2 mm-thick polyvinyl chloride (PVC).

20 mm-thick high-pressure laminate (HPL).

Guidance for specification option:

18 mm-thick moisture resistant medium density fibreboard (MDF) with high-pressure laminate on both sides. Square edged/ lipped with 2 mm-thick acrylonitrile butadiene styrene (ABS).

Finish

As material.

Colour

-

Manufacturer guidance

18 mm-thick MFC:

A selection of colours from the Swiss Krono One World Collection is available; consult literature for details.


20 mm-thick HPL:

A selection of colours from the Formica Fundamentals range is available, as well as colours by Formica and Polyrey; consult literature for details.

Product Reference

2 Door Wall Unit

Hardware

Locks, handle, hinges (one pair), adjustable shelf.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

1

Revit

Revit 2017

1
