3 Knuckle Butt Hinge (HUKP-0102-01) - Single Axis Hinges

Name: 3 Knuckle Butt Hinge (HUKP-0102-01) - Single Axis Hinges
Brand: Hafele UK Ltd
SKU: 7SXNyfVKurUqCsbxP3Dr3L

Verified by manufacturer 6 months ago

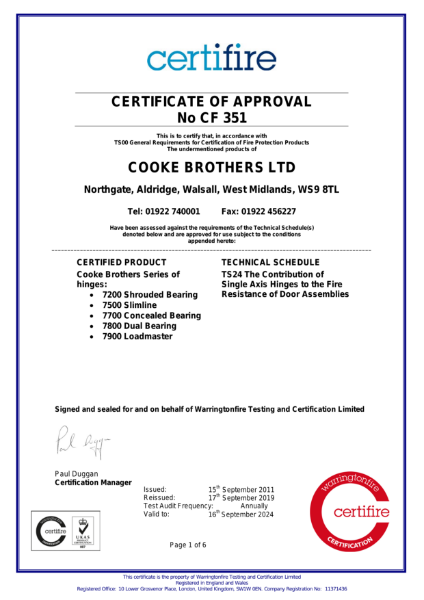

Third party certifications:

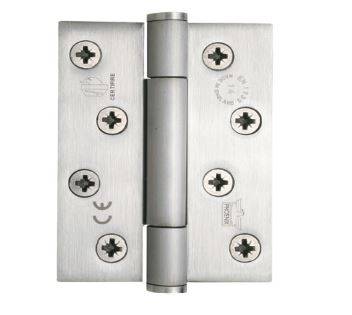

Stainless steel triple knuckle butt hinge

Jump to:

Application

Suitable for up to maximum adjusted door weight 160 kg EN14.

Stainless steel triple knuckle butt hinge, fully concealed bearing with staggered hole pattern.

Features and benefits:

Fully concealed triple knuckle butt hinge 102 x 89 mm.
EN 14 maximum adjusted door weight 160 kg.
Square and radiused corners available.
Maintenance free, low friction design.
Supplied with stainless steel number 12 woodscrews/ M6 machine screws x 12 mm for metal doors.

Color	Silver Black Bronze
Finish	Satin Guidance for specification option: Stainless steel. Polished Guidance for specification option: Stainless steel. Matt Guidance for specification option: Black. Manufacturer guidance Other finishes available to special order.
Material	Stainless steel Steel
Shape	Rectangle
Length	102 mm
Width	89 mm
Height	3 mm
Warranty description	25 year

Uniclass	Pr_30_36_36_79 Single axis door hingesPrimary Pr_30_36_36_09 Butt door hinges
CAWS	P21/7 Single-axis door hinges P21/310 Single-axis door hinges

Product range	Hinges

Standard	To BS EN 1935: 2002.
Classification grades (minimum)	-
Category of use	4.
Durability	7.
Test door mass	7.
Suitability for use on fire and smoke doors	1. Guidance for specification option: Fire rated suitable for up to 120 minutes on timber doors (ITT). Fire rated suitable for up to 240 minutes on metal doors and frames (IMM).
Corrosion resistance	4.
Security, burglar resistance	0.
Hinge grade	14.
Size	89 x 102 x 3 mm.
Material and finish	Stainless steel, grade 1.4301 (304). Stainless steel, grade 1.4401 (316).
Colour	Satin stainless steel. Polished stainless steel. Matt black. Light bronze. Dark bronze. Hafele black.
Integral accessories	Radiused corners. Intumescent hinge pads 100 x 40 mm. Guidance for specification option: Packs available for ITT doors: Square corners: ZZ20511QQ. Radius corners: ZZ20511QQ-R.
