55HX® Aluminium For Façades - Aluminium Alloy
Verified by manufacturer 18 hours ago
55HX® aluminium alloy with high formability, anodized corrosion and UV resistance, metallic gloss and is A1 non-combustible.
Application

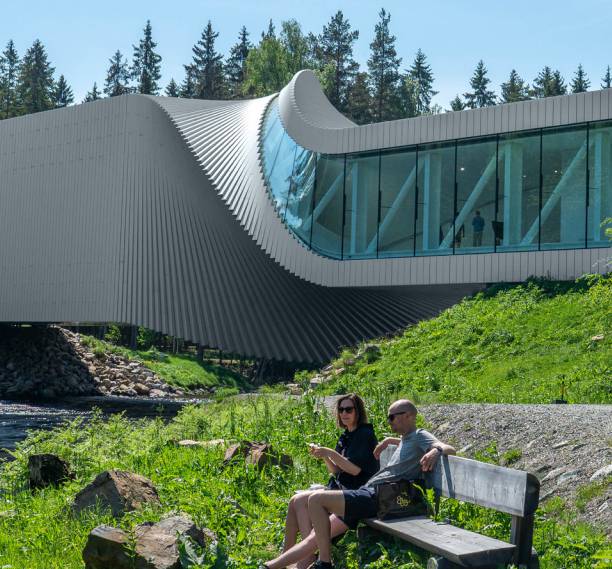

Architectural applications:
- Façades and wall cladding.
- Ceilings, roofs and balconies.
- Pillars and escalator casing.
Description
55HX® allows architects to design the material in line with their individual needs. The ease of its bending, perforating, punching and deep-drawing have made it the outstanding aluminium solution. After anodizing 55HX® aluminium substrate is weather-, corrosion- and UV-resistant while maintaining its authentic metallic gloss as well as its durability.
Features and benefits:
- Colour uniformity across various batches.
- Corrosion, UV- and scratch resistant after anodizing.
- Excellent deformation properties.
- Very good bending properties.
- Outstanding durability.
- Easy cleaning recyclable 100%.
- Non-combustible.
- European fire Class A1.
General information
Color | Bronze Black Grey Gold Copper |
Finish | Anodized |
Material | Aluminium |
Shape | Square Rectangle Other |
Length | 2000 mm 2500 mm 3000 mm 4000 mm Bespoke |
Width | 1000 mm 1250 mm 1500 mm Bespoke |
Height | 1 mm 1.5 mm 2.0 mm 2.5 mm 3.0 mm |
Uniclass | |
CAWS | H72/3 Aluminium sheet fully supported roof covering H72/110 Aluminium sheet fully supported roof covering H72/130 Aluminium sheet fully supported wall covering |
Specification data - Aluminium traditional sheets
Classification data | |
Grade | EN AW-5005. |
Temper | H14. |
Chemical composition and form | Si ≤0.30; Fe ≤0.70; Cu ≤0.20; Mn ≤0.20; Mg 0.50–1.10; Cr ≤0.10; Zn ≤0.25; Ti –; others ≤0.05 each, ≤0.15 total; Al balance. |
Factory finishes | Anodized. |
Thickness | 1.0 mm. 1.5 mm. 2.0 mm. 2.5 mm. 3.0 mm. 4.0 mm. |
Reaction to fire | |
External face | Class A1 (non-combustible). |
Internal face | Class A1 (non-combustible). |
Colour | Bronze 10. Bronze 20. Bronze 30. Bronze 40. Bronze 50. Bronze 60. Bronze 70. Bronze 80. Bronze 85. Black. Natural. Gold 10. Gold 20. Gold 30. Gold 40. Copper 30. Copper 50. Rosegold G30C30. Warmgold G20C10. Other. Guidance for specification option: Other colours possible (upon request). Consult manufacturer and insert requirements. |
Sustainability data
Material | Aluminium |
Recyclability | 100 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 75 % |
