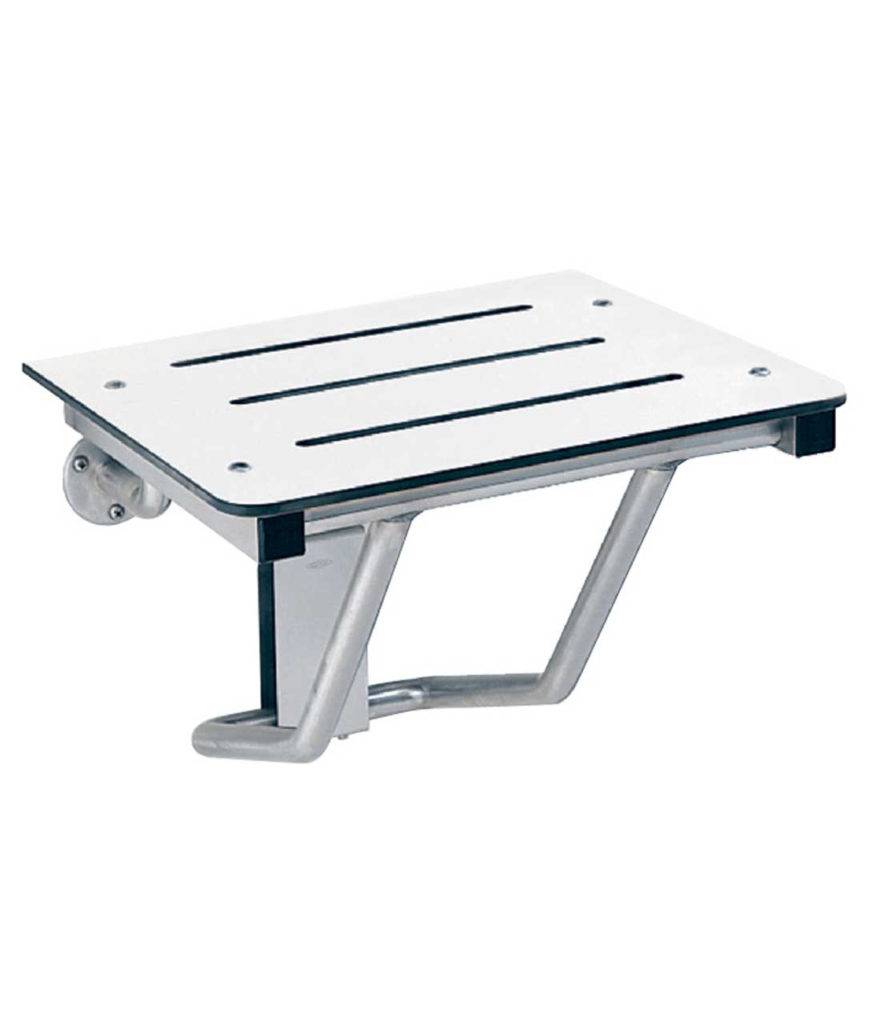

560 mm Folding Shower/ Dressing Area Seat B-5192

Verified by manufacturer 10 months ago

Bobrick Washroom Equipment Ltd

Folding shower seat, compact laminate and stainless steel.

Jump to:
+44 (0)20 8366 1771 Website

Application

Suitable for use as wall mounted and for accessible use.

Description

Folding shower seat, compact laminate and stainless steel.


Features and benefits:

  • Compact design.
  • Seat is constructed of durable, water-resistant, ivory coloured, 8 mm-thick solid phenolic.
  • Frame and mounting bracket are type 304 stainless steel and have a self-locking mechanism.
  • Supports up to 500 lbs (227 kg) when properly installed.
  • Seat 560 mm wide and projects 400 mm from the wall.


Safety warning:

Shower seats are no stronger than the anchors and walls to which they are attached and must be firmly secured in order to support the loads for which they are intended. Consult and comply with local building codes. To avoid potential injury, the building owner or maintenance personnel should remove the shower seat from service if the shower seat is not adequately secured to the wall. In the interests of safety and the protection of end users, this seat should not be used to support weights exceeding 500lbs (227 kg). To avoid potential seat malfunction, DO NOT use seat if weight exceeds 500 lbs (227 kg). Failure to abide by this warning may result in seat malfunctioning, potentially causing minor to moderate injury.

General information

Color

Ivory

Finish

Matt

Satin

Material

Stainless steel

Manufacturer guidance

As per manufacturer and includes compact laminate.

Shape

Rectangle

Length

560 mm

Guidance for specification option:

Seat protrudes 400 mm from wall when in the lowered position.

Width

365 mm

Height

400 mm

Warranty description

-

Manufacturer guidance

Bobrick washroom accessories are warranted to be free from defects in workmanship and material under normal usage service for one year from the date of purchase.

Uniclass

Pr_40_20_06_83 Shower seatsPrimary

CAWS

N13/14 Unisex accessible shower room equipment packages (Document M)

N13/448 Seats

Specification data - Shower seats

Form

Wall-mounted, hinged.

Materials

-

Frame

Stainless steel.

Guidance for specification option:

Satin finish.

Seat

8 mm Compact laminate.

Guidance for specification option:

Matte finish.

Sustainability data

Country of material origin

United States

BIM objects

Platform Compatible Version
Revit
-

1

Literature

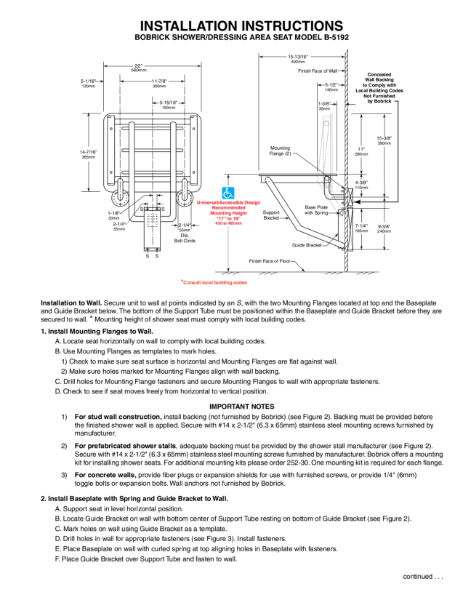

Installation Instructions - Bobrick Shower/Dressing Area Seat Model B-5192

Installation Instructions - Bobrick Shower/Dressing Area Seat Model B-5192

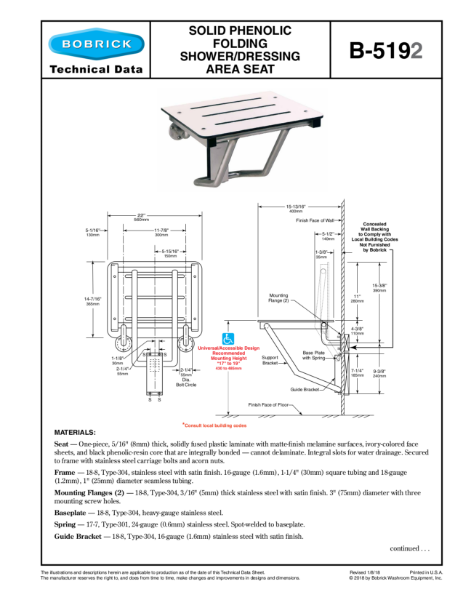

Solid Phenolic Folding Shower/Dressing Area Seat - B-5192

Solid Phenolic Folding Shower/Dressing Area Seat - B-5192
