70 cm venting hob
Verified by manufacturer 2 months ago

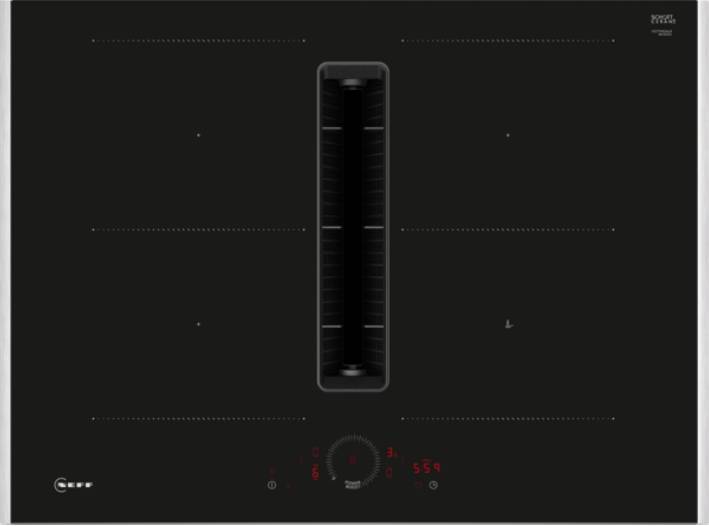

N 70, induction hob with integrated ventilation system, 70 cm, surface mount with frame.
Application
Suitable for domestic applications.
Description
N 70, induction hob with integrated ventilation system, 70 cm, surface mount with frame. Black with stainless steel side trims.
Features and benefits:
- Twist Touch®: control your hob with a twist of your finger.
- Combi induction: combine two circular cooking zones when using large cookware.
- High extraction rate: ensures a clear view while cooking thanks to efficient motor technology.
- Reduced noise: the optimized motor guarantees a quiet cooking experience.
- Easy-clean filters: easy to remove and dishwasher-safe.
General information
Color | Black |
Material | Stainless steel Glass |
Shape | Rectangle |
Length | 527 mm Manufacturer guidanceDepth. |
Width | 710 mm |
Height | 223 mm |
Warranty description | Two year |
Uniclass | |
CAWS | N11/40 Appliances N11/360 Appliances |
Specification data - Built-in electric hobs
Hob arrangement | Induction hob with four 2.5 kW cook zones and two combi zones.Guidance for specification option: All cook zones: 190 x 210 mm, maximum power 3.7 kW. |
Dimensions | |
Width (maximum) | 710 mm. |
Depth (maximum) | 527 mm. |
Rating | 7.4 kW. |
Electrical supply | 220–240/380–415 V, 50/60 Hz. |
Material and finish | Black ceramic with stainless steel side trims. |
Features | Twist touch control, two combizone plus ventilation, favourite button, frying sensor pro (extended frying sensor), auto-on fan, four cleanair plus filters, telescopic slider, adhesive seal for un-ducted installation. |
Accessories | Not required. Z811DU0: Acoustics filter. Z821PD1: Plinth diffusor. Z821VR1: Clean Air Plus odor filter (replacement). Z861KE1: Exhaust kit. |
Energy rating | B. |
Sustainability data
Material | Stainless steel Glass |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |

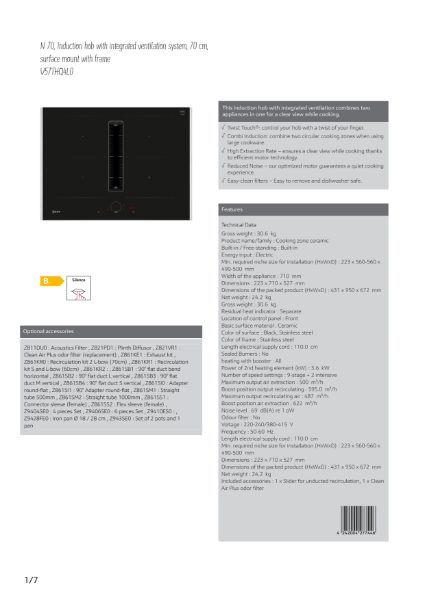

Literature
N 70, Induction hob with integrated ventilation system, 70 cm, surface mount with frame V57THQ4L0
