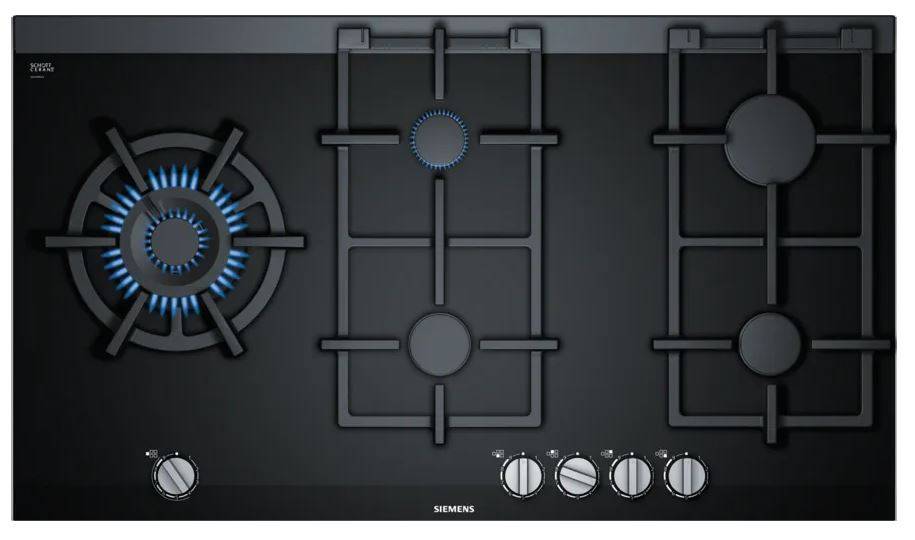

90 cm Gas Hob on Ceramic Glass
Verified by manufacturer 2 months ago
Gas cooktop with stepFlame technology for precise flame control in nine steps.
Application
For domestic applications.
Description
Gas hob 90 cm, ceramic in black.
Features and benefits:
- stepFlame technology – precise flame control with nine different settings.
- Dishwasher-proof pan supports – cut the time spent cleaning the hob.
- High-quality materials and workmanship – continuous cast-iron pan supports.
- Biomethane ready – power the gas hob with renewable biomethane gas.
- Siemens burner design is extremely flat in comparison to a standard burner.
Model:
- ER9A6SB70: 90 cm, five burners, 6 kW Wok burner, stepFlame, dishwasher proof cast iron supports, flag layout, domino compatible.
General information
Color | Black |
Material | Ceramic Glass |
Shape | Rectangle |
Length | 520 mm |
Width | 912 mm |
Height | 59 mm |
Warranty description | Two year |
Uniclass | |
CAWS | N12/330 Cooking equipment N11/360 Appliances N11/40 Appliances N12/330 Cooking equipment |
Specification data - Built-in gas hobs
Hob arrangement | Five burner gas hob with one 6.1 kW burner to the left, one 1,9 kW burner centre front, one 1.1 kW economy burner centre rear, one 2.8 kW high speed burner right rear and one 1.9 kW burner right front. |
Material and finish | Black ceramic glass. |
Dimensions | |
Width (maximum) | 912 mm. |
Depth (maximum) | 520 mm. |
Type of gas | Natural.Guidance for specification option: L/LL G25/20 mbar(DE). |
Gas connection | Factory set for connection to mains gas. |
Electrical supply | 220–240 V. |
Features | Cast iron pan supports. |
Frequency | 50; 60 Hz. |
Fuse rating | 3 A. |
Cable length | 150 cm. Manufacturer guidanceLength electrical supply cord. |
Rating | 13.8 kW. |
Integral accessories | Wok ring. |
Accessories | Not required. HZ298105: Simmer plate. HZ298114: Small pot support. |
Sustainability data
Material | Ceramic Glass |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
iQ700, Gas hob, 90 cm, Ceramic, Black ER9A6SB70
