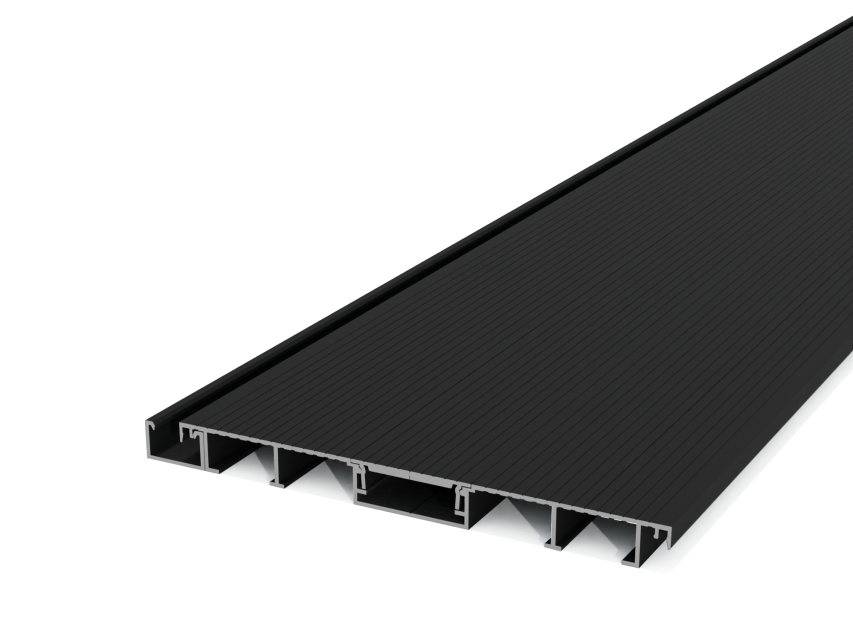

A2 EazyDeck XL Aluminium Decking - Fire-rated Deck Board
Verified by manufacturer 11 hours ago
A2 fire-rated deck board, suitable for high-rise residential buildings. 220 mm-wide, textured, anti-slip surface with a powder-coated finish.
Application
Suitable for use on balconies and terraces to improve the safety and styling of high-rise living.
Description
A2 fire-rated deck board, suitable for high-rise residential buildings. 220 mm-wide, textured, anti-slip surface with a powder-coated finish.
Features and benefits:
- Fire-rated A2fl-s1 to EN 13501-1.
- Wide board minimises fixings and allows for faster installation.
- Durable 120 µm powder coating in three standard colours (Black RAL 9005, Anthracite RAL 7016, Sand RAL 1019) with other colours available on request.
- Concealed fixing channel and infill clip.
- Optional drainage channel and guttering system.
- Non-combustible substructure system also available, comprising aluminium joists and steel pedestals.
Part of the Class A fire-rated range from BM Architectural. Consult manufacturer for details of other products in the range.
General information
Color | Black Grey Beige Other |
Finish | Textured Anti-slip Powder-coated |
Material | Aluminium |
Shape | Rectangle |
Length | 3600 mm 6000 mm Bespoke |
Width | 220 mm |
Height | 20 mm |
Warranty description | Ten year Guidance for specification option: Powder coating - consult manufacturer for details. |
Uniclass | |
CAWS | Q55/380 Deck boards Q55/110 Deck |
Specification data - Aluminium profiled sheet decking
Classification data | |
Grade | 6063 T6 aluminium. |
Profile | |
Depth (overall) | 20 mm. |
Thickness (nominal) | 2.2 mm. |
Top surface | Textured anti-slip powder-coated 120 µm, black RAL 9005. Guidance for specification option: Standard. Textured anti-slip powder-coated 120 µm, anthracite RAL 7016. Guidance for specification option: Standard. Textured anti-slip powder-coated 120 µm, sand RAL 1019 Guidance for specification option: Standard. Textured anti-slip powder-coated 120 µm, colour. Guidance for specification option: Consult manufacturer for options and insert requirements. |
Accessories | None. Connecting drainage channel. Guidance for specification option: 30 mm wide. Clips to the side of the board. Manufacturer guidanceSubstructure components. |
Substructure | Aluminium joists. Guidance for specification option: Support joist to provide optimum strength and stability to the deck. Steel joist cradle pedestals. Guidance for specification option: Accepts the aluminium joists and accommodates height adjustments. Not required. |
Board length | 3600 mm. 6000 mm. |
Width | 220 mm. |
Reaction to fire | A2fl-s1 to EN 13501-1. |
Compliance | Commercial Tread Specification. |
Anticipated service life | 30 years. |
Slip resistance | 70 (Dry); 48 (Wet). |
Technical characteristics, other | 2 kN load span at <5 mm deflection: up to 1100 mm. |
Sustainability data
Material | Aluminium |
Literature
A2 EazyDeck XL Aluminium Decking
