Acoustic Deck 28/ 32 - Acoustic Flooring

Name: Acoustic Deck 28/ 32 - Acoustic Flooring
Brand: JCW Acoustic Supplies Limited
SKU: cFD86bzUZ2g61VVhK9S8dk

Verified by manufacturer 5 months ago

JCW Acoustic Supplies Limited

Economical Concrete or Timber floor overlay board.

Jump to:

+44 7833 433335 Website

Application

Suitable for concrete or timber floors.

Description

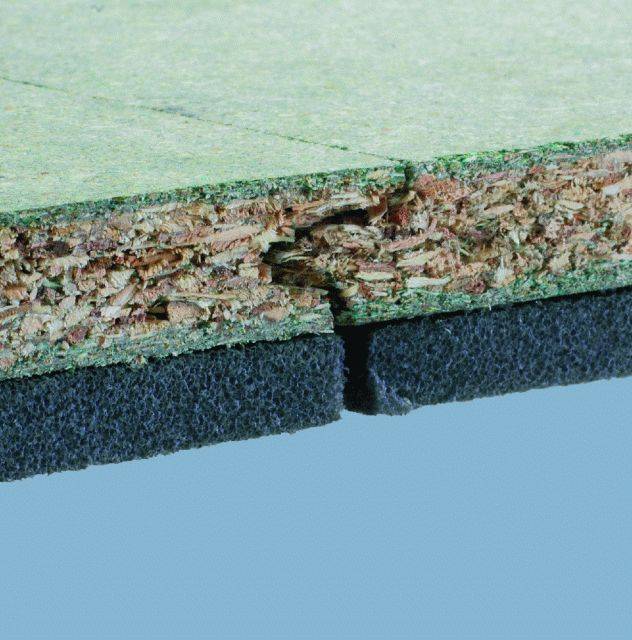

A concrete or timber floor overlay or direct to joist board comprises an 18 or 22 mm thick tongue and grooved board with a pre-bonded 10 mm thick resilient foam layer.

Features and benefits:

P5 grade chipboard overlay for concrete or timber floors.
Concrete floor applications comply with Robust Detail FFT-5 floating floor treatment for flooring types E-FC-1, E-FC-2 and E-FS-1.

General information

Color	Grey
Finish	Smooth
Material	Chipboard Foam
Shape	Rectangle
Length	2400 mm
Width	600 mm
Height	28 mm 32 mm

Uniclass	Pr_25_71_18_90 Timber-lined composite sound-insulating boardsPrimary
CAWS	K11/225 Particleboard floating floor K11/25 Particleboard floating floor K11/275 Acoustic separating floor system

Product range	Acoustic Decking

Specification data - Timber-lined composite sound-insulating boards

Sound insulation rating	Airbourne 53 dB DnT,w+Ctr, Impact L'nT,w 52 dB. Guidance for specification option: OVERLAY FOR TIMBER FLOORS Impact sound transmission ∆ Lw: 18 dB. Guidance for specification option: CONCRETE FLOOR OVERLAY BOARD
Thickness	28 mm. Guidance for specification option: Acoustic Deck 28. 32 mm. Guidance for specification option: Acoustic Deck 32.

Product Reference	Acoustic Deck 28 - 1071 Guidance for specification option: 28 mm thickness; weight: 17.8 kg. Acoustic Deck 32 - 1074 Guidance for specification option: 32 mm thickness; weight: 21.8 kg.
Sound performance	Guidance for specification option: Airborne sound improvement (timber direct to joist): Rw + Ctr = 52 dB
Impact sound reduction	Guidance for specification option: Impact sound reduction: Timber direct to joist: 56 dB Ln,w. Concrete overlay: Δ Lw = 18 dB.
Grade	Standard.
Format	Standard.
