Acoustic Trough Infills
Verified by manufacturer 17 days ago

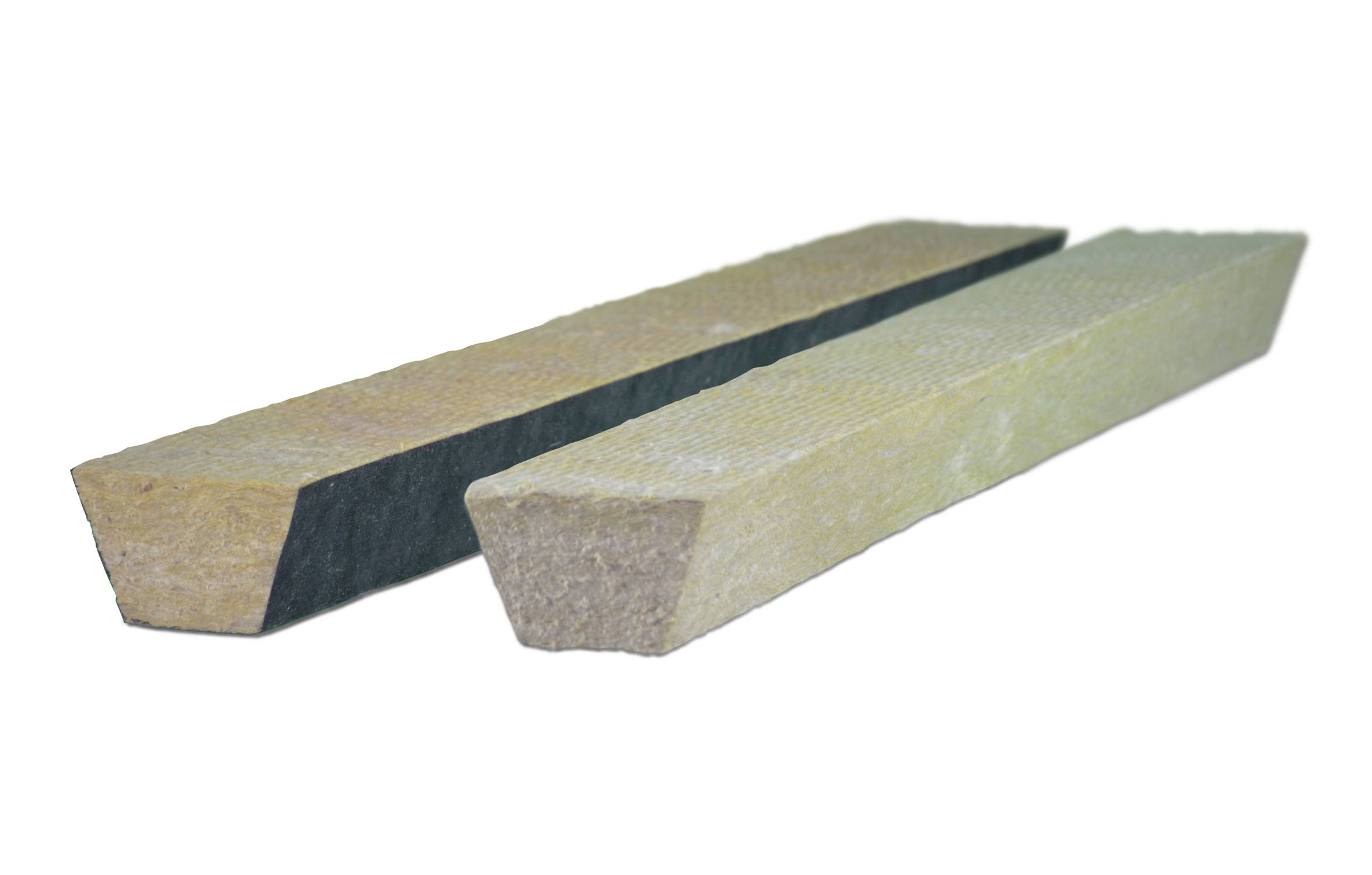

Mineral wool profile trough.
Application

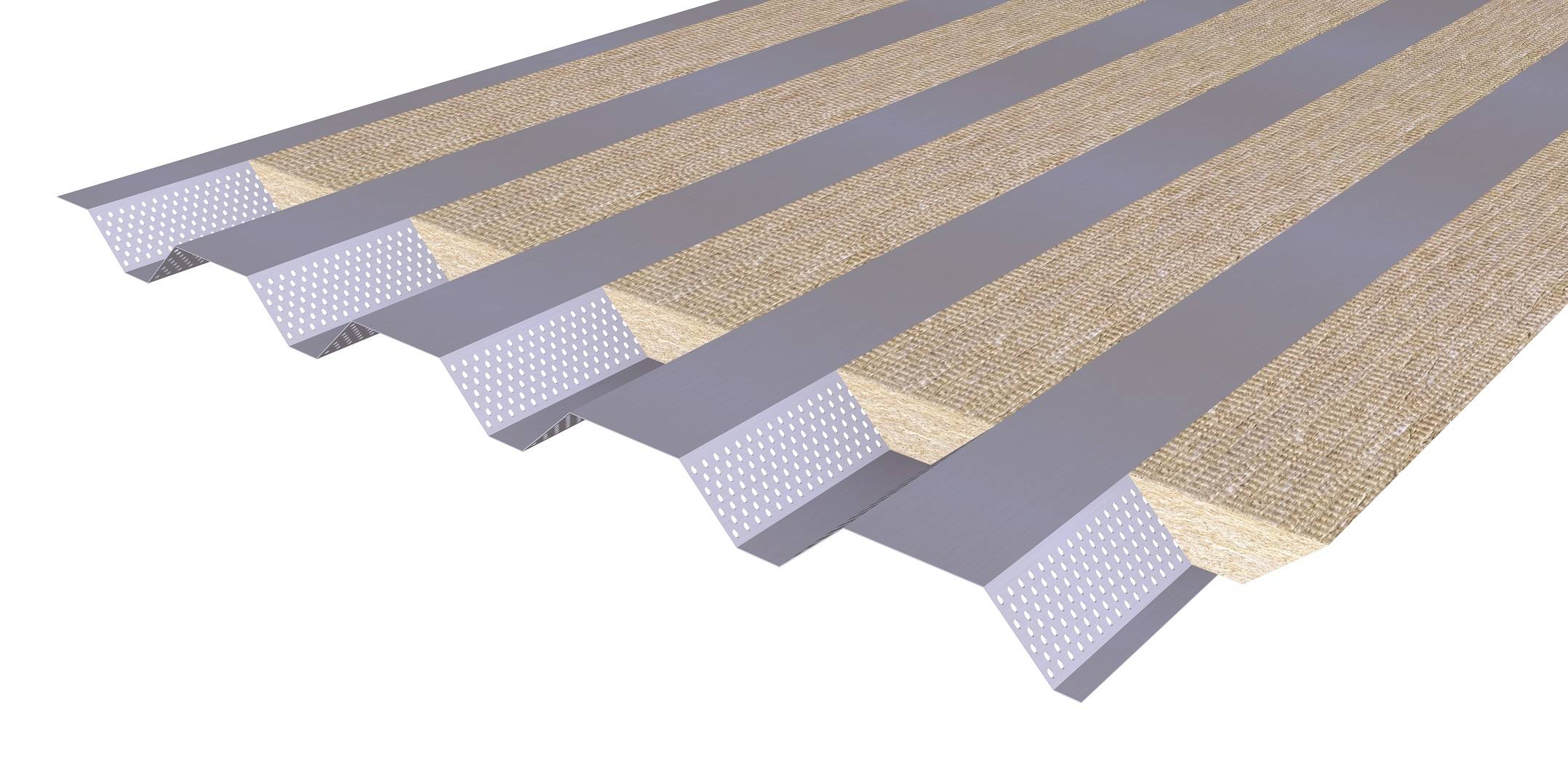

Profile trough infills are designed to fit into the troughs of perforated metal profiles used for roof decking and cladding. They can be supplied in shapes to fit any profile and in density to meet the requirements of the acoustic specification.
Description
Used to reduce reverberation in buildings with a high proportion of hard internal surfaces, especially where noise is generated within the building, such as is the case with sports halls.
The Infills are used within a perforated profile and provide acoustic absorption. In this way a large absorptive surface can be created without the expense, aesthetic problems or inconvenience of suspended acoustic systems.
General information
Color | Black White Other Guidance for specification option: Natural. Manufacturer guidanceThe product is available natural, with a white tissue face, a black tissue face or enclosed in a Mylar sleeve. |
Material | Stonewool |
Shape | Trapezoid |
Length | 1200 mm |
Width | Bespoke Manufacturer guidanceTo match the profile of the metal deck. |
Height | Bespoke Manufacturer guidanceTo match the profile of the metal deck. |
Uniclass | |
CAWS | H31/254 Acoustic insulation H31/271 Mineral wool thermal insulation H31/50 Mineral wool thermal insulation H31/65 Profile fillers |
Product range |
Specification data - Mineral wool slab insulation
Facing | None (natural).Guidance for specification option: Standard. Tissue facing, black.Tissue facing, white.Mylar sleeved. |
Length | 1200 mm. |
Profile | To match the profile of the metal deck. Guidance for specification option: Insert details. |
Literature
AIM Acoustic Trough Infill Technical Guide 2022
