ACS Single Leaf Lintels
Verified by manufacturer 6 days ago
'L' Section Lintels
'L' Section Lintels
CCPI Product
Certificate type
CCPI Product
Certificate type
CCPI Product
Certificate type
Stainless steel 'CL, 'C' and 'XHD' section lintels.
Application
External leaf masonry walls requiring a structural support above an opening
Description

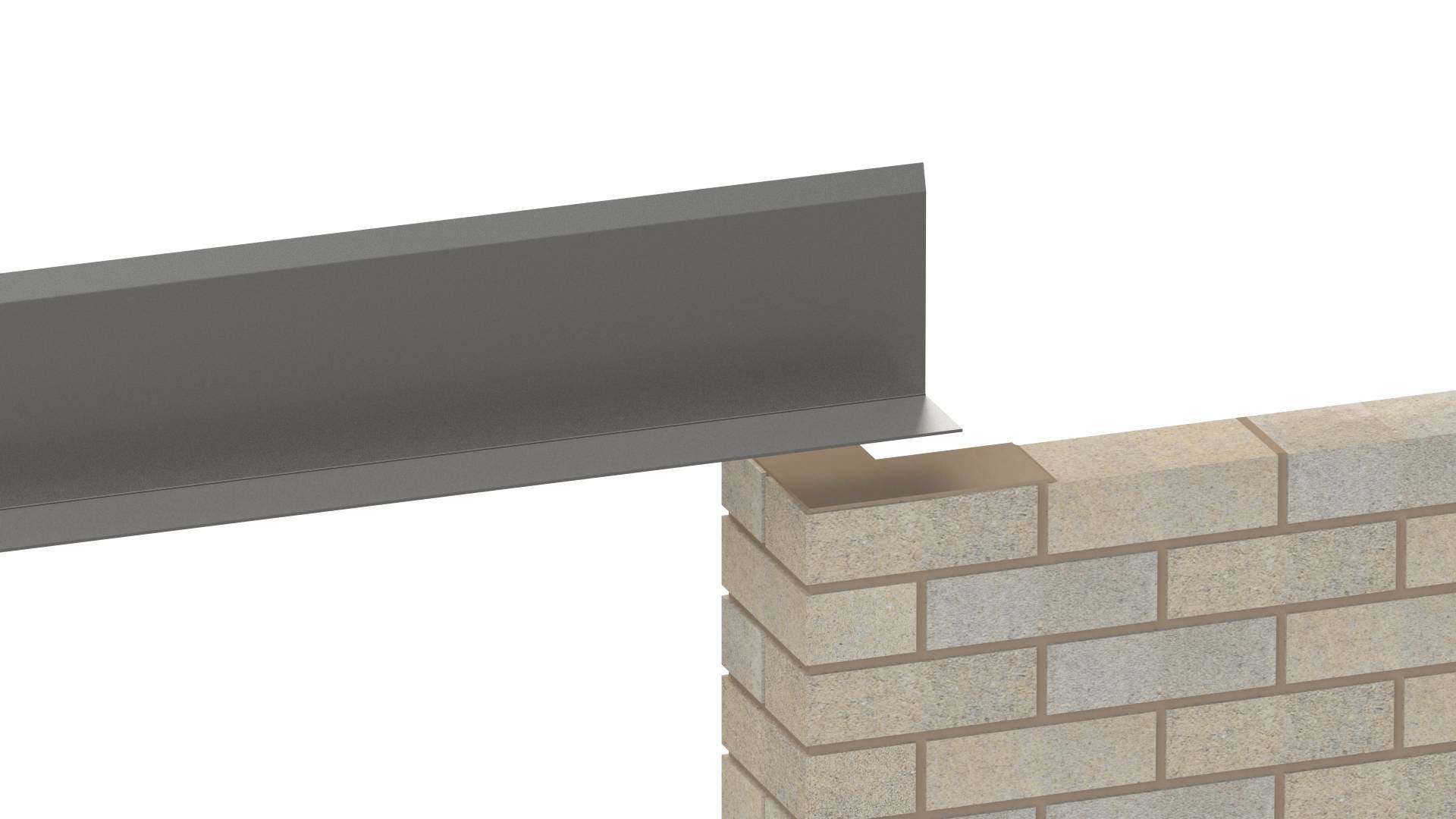

ACS single leaf lintels are designed to carry a single leaf of masonry, typically the external leaf of a cavity wall. The lintel should be propped during construction to achieve the safe working load capacities declared. A separate cavity tray is required above the lintel.
Wall ties should be installed within 300 mm of the lintel at a maximum of 450 mm centres to ensure that the masonry carried by the lintel is restrained and any potential overturning and deflection is minimized.
The standard lintel range is supplied 150 mm incremental lengths. Lintels of alternative lengths and load capacities outside of the details provided in the tables below can be designed and supplied to meet with project specific requirements. Lintels should be selected to ensure the a minimum of 150 mm bearing either side of the opening is always achieved.
Features and benefits:
- Available in 'L 'C' and 'XHD' sections.
- BS EN 845-2 design.
- BS EN 846-9 testing.
- PD 6697 specification.
- Austenitic stainless steel, 1.4301 (304) or 1.4401 (316) grade.
- UKCA / CE+UKNI marked.
- Independently tested by Lucideon and the Building Research Establishment (BRE).
- CCPI verified.
General information
Color | Silver |
Finish | Natural |
Material | Stainless steel |
Shape | Other |
Length | 600 mm Guidance for specification option: SWL 8.6kN 750 mm Guidance for specification option: SWL 8.6kN 900 mm Guidance for specification option: SWL 8.6kN 1050 mm Guidance for specification option: SWL 8.6kN 1200 mm Guidance for specification option: SWL 8.6kN Manufacturer guidanceLintel lengths should be selected to allow for a minimum of 150mm bearing each side |
Width | 95 mm |
Height | Manufacturer guidanceRefer to product datasheet for lintel heights |
Uniclass | |
CAWS | F30/85 Prefabricated steel lintels F30/755 Prefabricated steel lintels |
Specification data - Stainless steel lintels
Classification data | |
Standard | To BS EN 845-2 and PD 6697. |
Lintel type | Single. |
Material finish and coating reference | Austenitic stainless steel 1.4301 (304) grade. Austenitic stainless steel 1.4401 (316) grade. |
Sizes | Manufacturers standard. Guidance for specification option: Consult manufacturer and insert requirements. |
Shape | 'L' section. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Manufacturing plant location | |
Material | Stainless steel |
Recyclability | 100% recyclable |
BIM objects
This BIM object has been authored to meet the requirements of the
Find out more about the
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Product certifications
CCPI Product
ACS 'C' Section Single Leaf Lintel CCPi Product Certificate
CCPI Product
ACS 'L' Section Single Leaf Lintel CCPi Product Certificate
CCPI Product
ACS Extra Heavy Duty 'XHD' Single Leaf Lintel CCPi Product Certificate
