Adjustable Recessed Base
Verified by manufacturer 4 months ago
Adjustable Recessed Base with Aluminium Floor Track.
Application
For internal cleanroom use.
Description

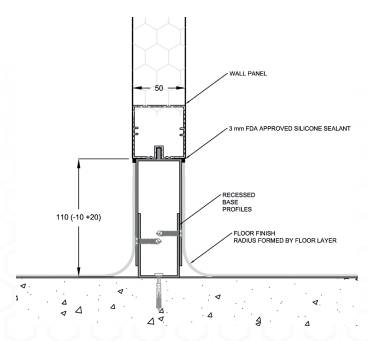

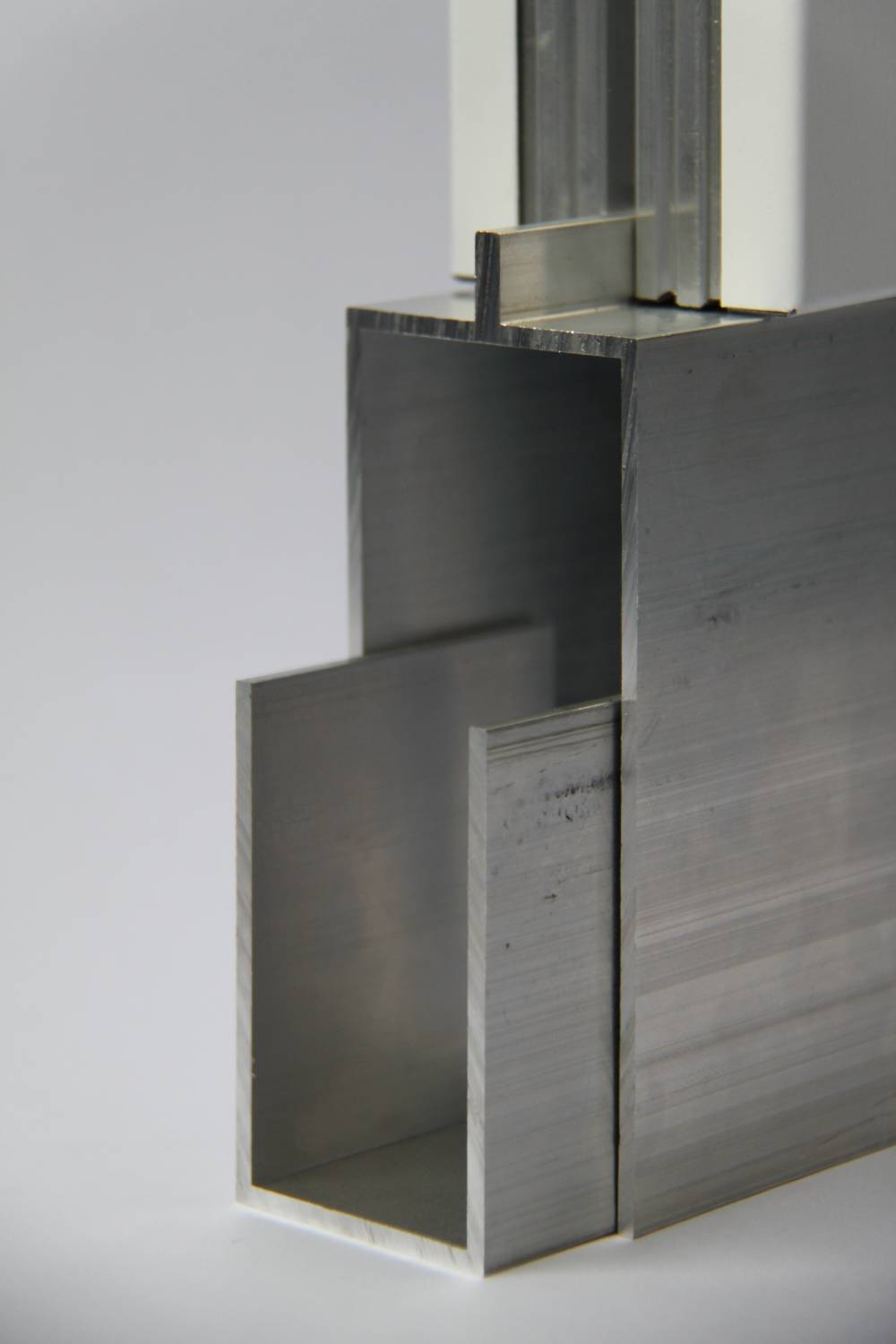

Puracore Recessed Base is a two-part floor track system that allows for adjustable heights. It provides a solid, level and flush interface between the wall and floor.
- High specification adjustable aluminium floor track.
- Two parts including base channel and adjustable panel interface.
- Designed to fit into our Puracore extrusion.
- Can be provided with jacking blocks to level off the base system and provide additional support at greater heights (up to 120 mm).
General information
Material | Aluminium |
Shape | Rectangle |
Length | 3000 mm |
Width | 130 mm |
Height | Bespoke |
Warranty description | Ten year |
Uniclass | |
CAWS | K30/135 Relocatable partition/ ceiling system K30/130 Relocatable partition system K30/10 Relocatable partition system |
Specification data - Panel partition systems
Description | Adjustable recessed base with aluminium floor track. |
System manufacturer | Gilcrest Manufcaturing. |
Fasteners | Base channel fixed directly to existing floor with hammerscrew or fixings suitable for floor substrate; upper section drilled and countersunk at 500 mm centres. Fixing screws supplied. |
System accessories | Floor cove formers supplied by flooring suppliers. |
Sealing | Panel fits directly onto adjustable panel interface and can be sealed in place. |
Length | 3000 mm. Guidance for specification option: Max. |
Components | Base panel and adjustable panel interface. |
Thickness | 2.5 mm. |
Standard | FM approved, BRE global certification, ASTM certification. |
Height | Guidance for specification option: 100—130 mm, Insert requirement. Manufacturer guidanceAdjustable. |
Material | Aluminium |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Aluminium |
Recyclability | Manufacturer guidanceCan be recycled as scrap metal. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 35 % |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature
Adjustable Recessed Base Product Data Sheet
