AliDeck Aluminium Decking System 3 - Complete Non-combustible Decking Solution - 1200mm Board Span - 800mm Joist Span - 60-330mm Build-Up
Verified by manufacturer 2 days ago
Certifire Certificate
Certificate type
Certifire Certificate
Certificate type
BS EN 1090-1
Certificate type
BS EN 1090-1
Certificate type
UK Conformity Assessed (UKCA)
Certificate type
CE Marking
Certificate type
Complete non-combustible decking systems for balconies, terraces and walkways.
Application
- Suitable for all non-combustible decking projects for balconies, terraces and walkways.
- Suitable for new build or the retrofit and replacement market.
Description

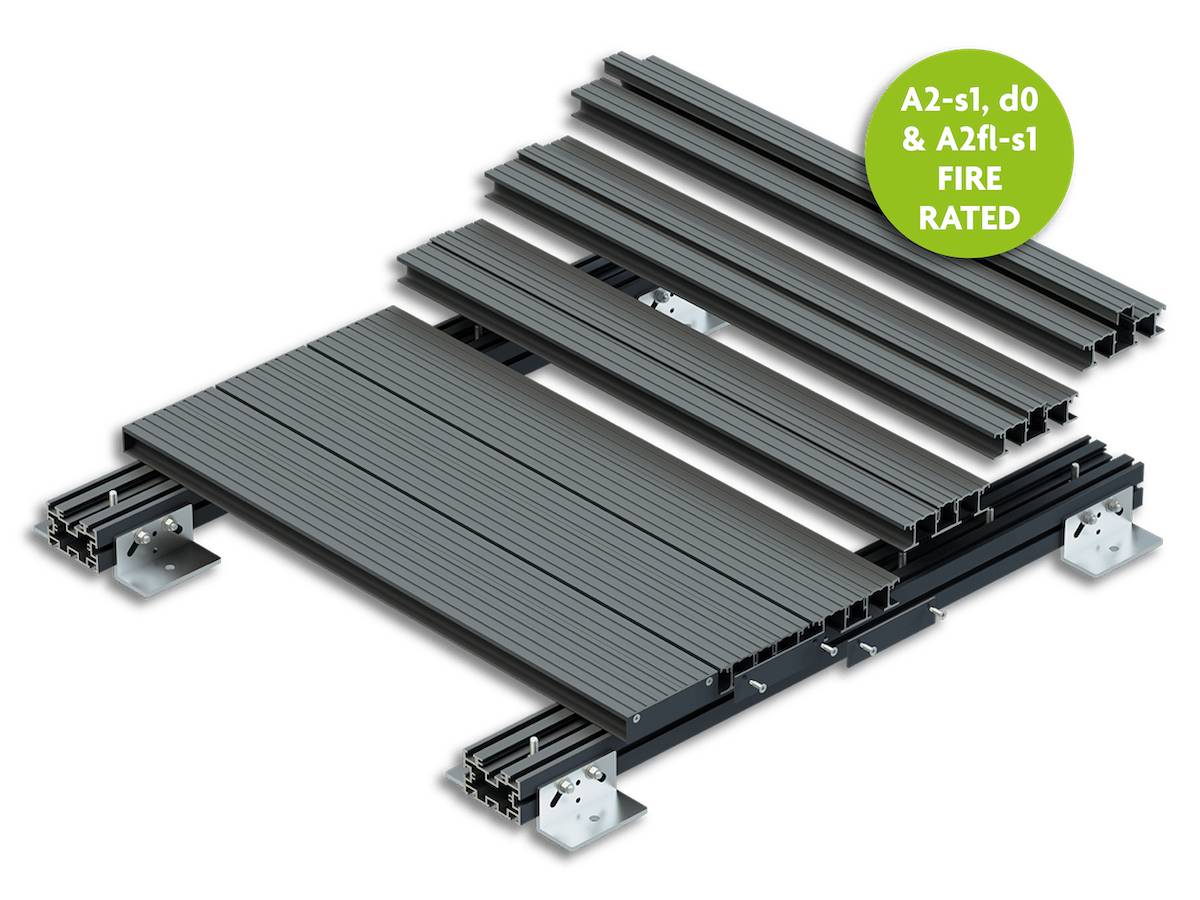

A comprehensive non-combustible decking system, comprising; decking board, support joist, and adjustable pedestal bracket, with drainage options available. This system has a minimum build-up height of 60 mm and 1200 mm span between centre of joist. Available in the full range of AliDeck colours.
Features and benefits:
- Fire rated: A1 (mill finish) and A2-s1,d0.
- Made In Britain
- Weight: 1.926 kg per linear metre.
- Coating thickness: 60–80 µm.
- Stock extrusion length: 6 m.
- Span: Up to 800 mm.
- Warranty: 30 years.
- Life expectancy: 60 years.
- Low slip resistance risk.
- The planks are coloured using the Qualicoat powder coating finish.
- The boards can be cut to size along both the length and width.
General information
Color | Beige Black Brown Grey Yellow |
Finish | Powder-coated Mill |
Material | Aluminium |
Shape | Rectangle Rhombus Square Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | 30 year |
Uniclass | |
CAWS | Q55/110 Deck |
Product range |
Specification data - Decking systems
Classification data | |
Structure | |
Primary structure | Support joists and 50 mm adjustable pedestal brackets. Support joists and 80 mm adjustable pedestal brackets. Support joists and 300 mm adjustable pedestal brackets. |
Fasteners | Bolted joint connectors. |
Deck boards | |
Material | Aluminium balcony board - 20 x 120 x 4000 mm. Aluminium balcony board - 20 x 120 x 6000 mm. |
Fasteners | M8 washers and nuts. |
Board accessories | End plate. |
Colour: | Textured Sand. Textured Silver Grey. RAL 8003 Clay Brown. RAL 7016 Anthracite Grey. RAL 7039 Quartz Grey. RAL 1019 Grey Beige. RAL 8014 Sepia Brown. RAL 7030 Stone Grey. RAL 7006 Beige Grey. RAL 9005 Jet Black. Manufacturer guidanceAny non-standard RAL colour is available on request as special order. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Manufacturing plant location | |
Material | Aluminium |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 67 % |
Expected Life | 60 year |
Product certifications
Certifire Certificate
FIRE PERFORMANCE to BS EN 13501-1 - AliDeck 30mm Senior Board
Certifire Certificate
FIRE PERFORMANCE to BS EN 13501-1 - AliDeck-30mm-Senior-Board
BS EN 1090-1
Point Load Testing - AliDeck Lite-Joist-Deflection-1-4kN-Test-800mm-Pass
BS EN 1090-1
Point Load testing - AliDeck 30mm-Senior-Board-v2 - 2kN-1200mm-test-pass
UK Conformity Assessed (UKCA)
Alcumus ISOQAR Certificate of Registration (UKCA)
CE Marking
EC Certificate of Conformity
Literature
AliDeck System 3
Case studies

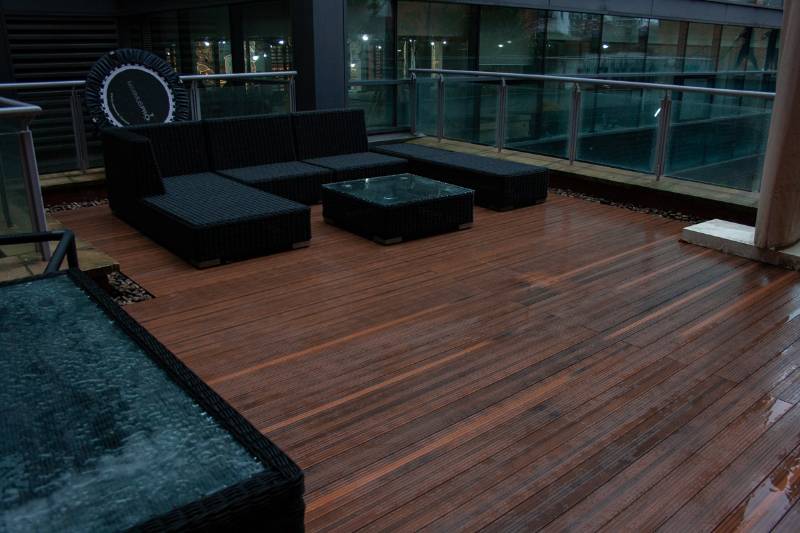

AliDeck recently visited TetraClad at the prestigious Trevor House remediation project in Knightsbridge, London
