AlphaRiser FR
Verified by manufacturer 22 hours ago

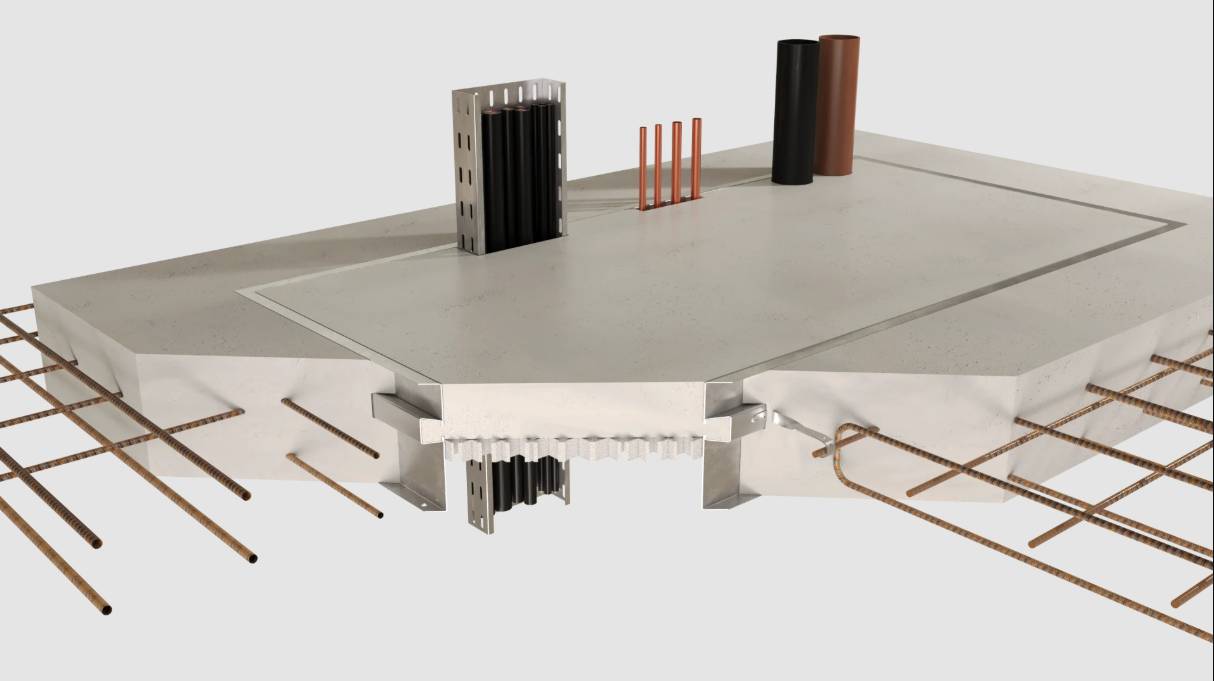

AlphaRiser FR is a fire-rated modular riser system with a drop-bracket design, enabling over 240 minutes of horizontal fire protection without compromising structural integrity.
Application
Designed for buildings requiring floor-to-floor compartmentation. Fully tested to BS EN 1366-3:2021, achieving 240 minutes fire resistance (integrity and insulation) – double the standard requirement.
Description

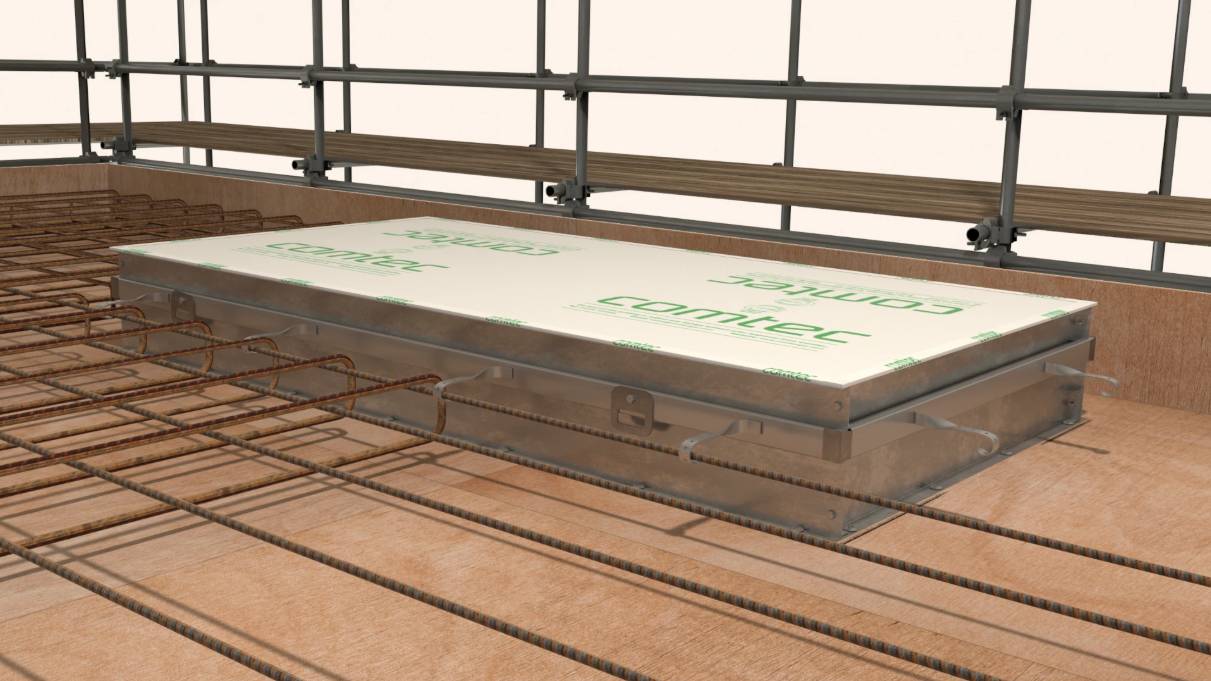

AlphaRiser FR has a drop-bracket system which allows the GRP floor to be lowered to enabled it to be filled with a fire-rated structural compound the provides more than 240 minutes of horizontal fire protection whilst maintaining structural floor strength.
Features and benefits:
- Eliminate risk of falls by ensuring the void is permanently covered from the outset.
- Eliminate the need for temporary shuttering and edge protection.
- Achieve in excess of 240 minutes horizontal fire stopping.
- Simple and fast installation.
- GRP solid top grating is simple to cut for MEP services penetrations and avoids the need for hot-works permits.
- Maintains the benefits of adjustable joist structure for accommodation changes to MEP positioning.
General information
Color | Grey |
Finish | Smooth Coated |
Material | Steel Glass Reinforced Plastic (GRP) |
Shape | Square Rectangle |
Length | Bespoke |
Width | Bespoke |
Uniclass | |
CAWS | E20/230 Modular riser flooring units |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Steel Glass Reinforced Plastic (GRP) |
Literature
Literature type
AlphaRiser - Technical Data Sheet
AlphaRiser - Brochure
Similar products from Comtec
AlphaRiser Cast-In Riser
AlphaRiser Retro-fit
