Application

  • Suitable for external use.
  • Suitable for both commercial and domestic applications where public safety is paramount.
  • The diverse range can be used on a wide variety of substrates such as concrete, timber, tiles, vinyl, steel and checker plate with inserts available in a wide array of colours.

Description

In addition to the function of step edge protection the Aluminatorâ„¢ range offers an easy, energy efficient solution to illuminate steps.

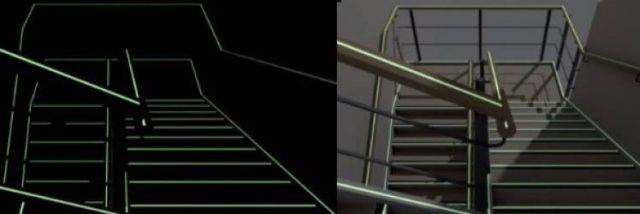

Should a local or emergency power failure occur on stairways, increasing the risk of hazard for evacuees, the Aluminatorâ„¢ system allows the evacuee to orientate, locate stair edges and risers, and so can assist in the safe evacuation of the premises.

Bespoke cut lengths are also available.


Features and benefits:

  • Highly durable.
  • Slip-resistant silicon carbide.
  • The system requires no electrical connection, is simple to install and requires no special maintenance other than that which you would normally carry out on any similar product.
  • Only normal illumination, daylight, fluorescent or standard tungsten filaments are required to activate its performance.

General information

Color

Black

White

Yellow

Grey

Silver

Show more

Finish

Anodized

Mill

Material

Steel

Silicone

Length

2460 mm

2770 mm

3220 mm

Guidance for specification option:

AHD22-DDA & AHD23-DDA available in this length only

Width

60 mm

63 mm

68 mm

70 mm

71 mm

Show more

Height

32 mm

33 mm

35 mm

40 mm

55 mm

Uniclass

Pr_35_90_31_74 Rigid stair nosingsPrimary

CAWS

L30/590 Applied stair nosings

M50/75 Stair nosings and trims

M50/750 Stair nosings and trims

M51/550 Stair nosings and trims

Product range

Nosings

Specification data - Rigid stair nosings

Base section

-

Material

Steel.

Silicone carbide

Finish

Mill aluminium 80.

Anodized.

Guidance for specification option:

Available maximum length 3 m in Black 16, Matt silver 81, Bright brass 86 or Bright silver 91.

Size

-

Rise x going

60 x 32 mm.

Guidance for specification option:

(W x D).

Inserts

-

Colour

White 601.

Black 616.

Dolphin grey 642.

Yellow 647.

Length

2460 mm.

2770 mm.

3220 mm.

Manufacturer guidance

Maximum length 3 m.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Recyclability

Partially (remove insert, recycle aluminium, dispose of insert)

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

50 %
