Aluminium Door Edge Guards Fire Rated – Rounded Profile Longer Leg

Verified by manufacturer 1 month ago

Intastop Ltd

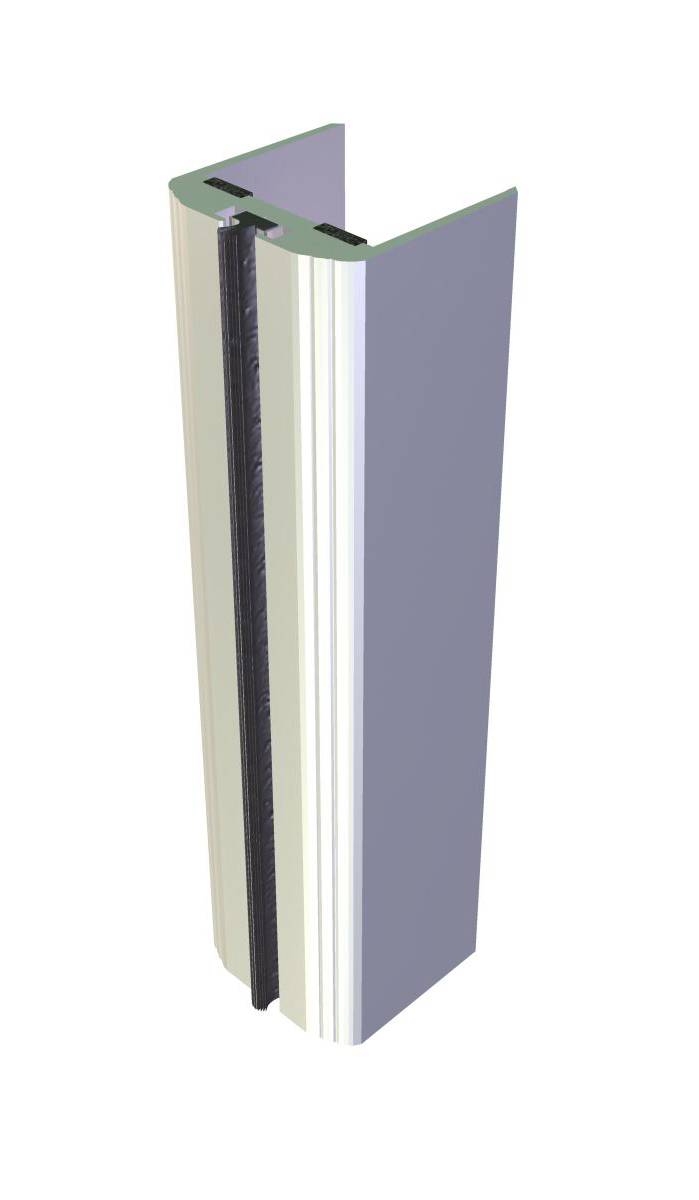

Rounded fire rated aluminium door edge guards with a longer leg offer outstanding wear and damage protection for single fire doors.

Jump to:
+44 (0) 1302 364 666 Website

Application

Ideal for maintaining fire integrity and can be used on the front and back edges of fire resisting door sets.

Description

Fitted with intumescent fire and smoke seals which are vandal-resistant yet easy to replace, these aluminium door edge guards are ideal for maintaining fire integrity and can be used on the front and back edges of fire resisting door sets. Provides extra door face protection in extremely high impact areas.


Features:

  • Robust aluminium profile to protect vulnerable door edges.
  • Cut out service available for hinges, locks and keeps.
  • A choice of brush or fin seals, depending on application.
  • Heavy/ severe duty.
  • Fire tested to BS 476-20 and -22 for 30 and 60 minutes.


Benefits:

  • Ensures staff and patient safety in the event of a fire by maintaining fire integrity of the door allowing safe evacuation.
  • Removes the need to replace expensive fire doors by retaining their fire integrity.
  • Complements an existing décor or colour scheme.
  • Profiles can accommodate existing ironmongery so no need to purchase new.
  • Ensure staff and patient safety by protecting them from smoke inhalation in the event of a fire.
  • Reduces maintenance costs.
  • A viable long term solution.


Note: To be fitted as per the global assessment. To receive a copy of this document, contact the manufacturer's sales team.

General information

Finish

Satin

Material

Aluminium

Shape

Circle

Length

2100 mm

2500 mm

Width

45 mm

55 mm

Uniclass

Pr_35_90_33_22 Door and window weatherstrips and sealsPrimary

CAWS

L20/410 Wood doorsets

L20/420 Wood doorsets

L20/430 Wood doorsets

L20/480 Doorsets

L20/55 Doorsets

P21/860 Door seals

Product range

Edge and Frame Guards

Specification data - Door and window weatherstrips and seals

Length

2100 mm.

2500 mm.

Width

45 mm.

55 mm.

Seal

Black intumescent.

Brush.

Guidance for specification option:

White casing.

Neoprene.

Depth

50 mm.
