Aluminium entrance door - AD UP 75

Name: Aluminium entrance door - AD UP 75
Brand: Schueco UK Ltd
SKU: oi7vPFajpmRKpPoYwxN1TQ

Verified by manufacturer 24 days ago

AD UP 75 Fixed Light

Schueco UK Ltd

Commercial, stylish entrance door for designed heavy use.

Jump to:

+44 (0)1908 282111 Website

Application

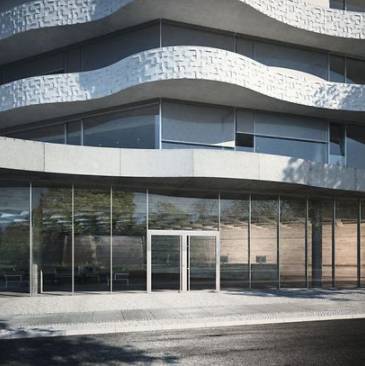

Luxury residential and commercial buildings.

Description

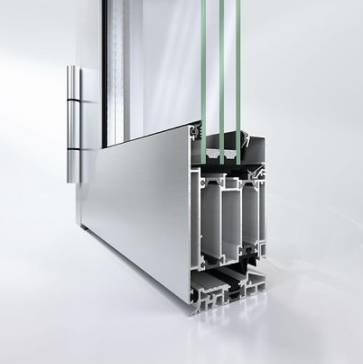

The Schüco AD UP 75 door system has a 75 mm basic depth offering high functional reliability. The principle and modular gasket system provide thermal insulation, weather tightness, load-bearing capacity and durability. A broad portfolio of fittings and design options allows the system to meet most requirements. The door system is ideal for integration with door communication and access control systems.

Features and benefits:

Good insulation properties combined with high stability.
Triple-shell profile composition ensures maximum stability and functional reliability.
Modular gasket system for optimal adaptation to required system properties.
Long service life and a high load-bearing capacity.
Range of vent types.
Concealed hinges in combination with door communication and access control for a high degree of planning freedom.
Barrel hinge for large leaf heights.
Proven system security and comfort.

Standards:

DIN EN ISO 10077-2.
DIN EN 1627.
DIN EN 12207.
DIN EN 12208.
DIN EN 12210.

General information

Color	Silver Other Manufacturer guidance Powder coated available in any colour and finish to order.
Finish	Anodized Powder-coated
Material	Aluminium
Shape	Rectangle Square Other
Length	Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	Other

Uniclass	Pr_30_59_24_02 Aluminium doorsetsPrimary
CAWS	L20/480 Doorsets

Specification data - Aluminium doorsets

Standard	Non-fire- and/ or smoke-rated doors to BS EN 14351-1.
Third party accreditation	Cradle to Cradle Certified® Silver.
Configuration	Fixed light.
Doorset size	- Manufacturer guidance Consult manufacturer for options and insert requirements, maximum 1400 x 3000 mm.
Performance	-
Acoustic performance	Guidance for specification option: Consult manufacturer literature for details and insert requirements; up to R_w 42 dB(A).
Strength and durability	Mechanical strength: Class 3; proof of durability: Class 7, Class 8.
Thermal	- Manufacturer guidance Consult manufacturer and insert requirements. Frame: ≥1.4 W/m²K.
Intruder resistance	-
Minimum requirement	- Manufacturer guidance Insert requirements, up to RC3.
Frame	-
Material	Aluminium.
Threshold	Aluminium. PVC-U. Automatic door gasket. Flat door threshold.
Finish	-
Coating	Anodized. Powder coated.
Texture	Manufacturer's standard.
Colour	Guidance for specification option: Consult manufacturer for options and insert requirements.
Installation fasteners	- Manufacturer guidance Consult manufacturer for options and insert requirements.
Door leaf	-
Thickness	75 mm.
Core	- Manufacturer guidance Consult manufacturer for options and insert requirements.
Panel details	- Manufacturer guidance Consult manufacturer for options and insert requirements.
Material	Aluminium.
Glazing	-
Type	- Manufacturer guidance Consult manufacturer for details and insert requirements, thickness: 13–53 mm.
Finish	-
Coating	As Frame. Anodized. Powder coated.
Texture	Manufacturer’s standard.
External colour	As Frame. Other. Guidance for specification option: Consult manufacturer for options and insert requirements.
Internal colour	As External. Other. Guidance for specification option: Consult manufacturer for options and insert requirements.
Film thickness (minimum)	Manufacturer’s standard.
Hardware	- Manufacturer guidance Consult manufacturer for options and insert requirements.
Accessories	- Manufacturer guidance Consult manufacturer for options and insert requirements.

Air permeability	To EN 12207, Class 4.
Watertightness	To EN 12208, Class 9A.
Resistance to wind load	To EN 12210, Class C3/ B3.

Sustainability data

Contains Red List materials	No
Country of material origin	Germany
Country of product manufacture	United Kingdom
Recyclability	cradle2cradle

BIM objects

Platform	Compatible	Version
Revit	-	1
