Aluminium Rainwater Pipe: Round Traditional - Downpipe
Verified by manufacturer 15 days ago
EN 13501-1 (Efectis)
Certificate type
Independent sustainability assessment
Certificate type
R EACTION TO FIRE - CLASSIFICATION REPORT EUI-22-000041
Certificate type

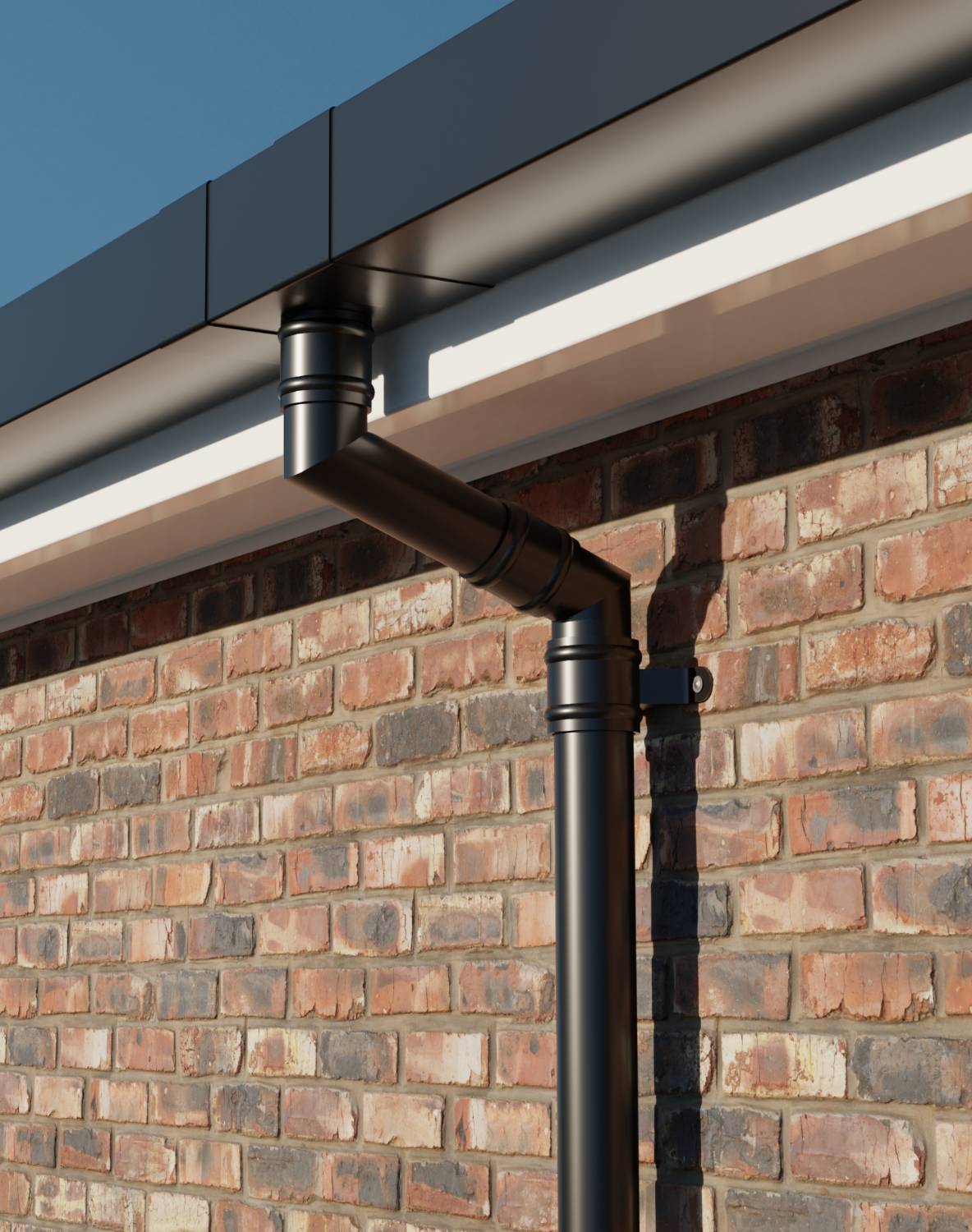

Dales round aluminium rainwater pipes.
Application
Aluminium Rainwater Pipe suitable for:
- Residential.
- Education.
- Healthcare.
- Commercial.
- Leisure.
- Mixed Use.
- Infrastructure.
- Retail.
Description
Dales round aluminium rainwater pipes are available in three sizes. Dales standard pipe brackets are designed to fix the pipe very close to the wall and firmly clamp the pipe into position.
Features and benefits:
- The brackets and fixing make it very difficult for vandals to climb.
- Various non-standard components, e.g. offsets, standoff brackets and special hoppers, are available to suit individual requirements.
- A wide range of standard components are available.
- Dales Fabrications Ltd are able to offer purpose made components to suit individual project requirements.
General information
Color | Beige Black Blue Bronze Brown Manufacturer guidanceA range of colours are available. |
Finish | Powder-coated Mill |
Material | Aluminium |
Shape | Circle |
Length | 1000 mm 1500 mm 2000 mm |
Width | 76.2 mm 101.6 mm 152.4 mm Manufacturer guidanceRound profile. |
Height | 76.2 mm 101.6 mm 152.4 mm Manufacturer guidanceRound profile. |
Warranty description | 25 year |
Uniclass | |
CAWS | R10/30 Aluminium pipework R10/370 Aluminium pipework |
Product range |
Specification data - Aluminium rainwater pipes and fittings
Section | Round. |
Size (nominal) | 152.4 mm.101.6 mm.76.2 mm.Manufacturer guidanceDiameter Ø. |
Minimum thickness or gauge | 3 mm. |
Finish and colour | |
Finish | Powder coated.Mill. |
Colour | Standard (PPC).Guidance for specification option: Contact manufacturer and insert requirements. RAL & BS (PPC).Guidance for specification option: Contact manufacturer and insert requirements. Metallic (PPC).Guidance for specification option: Contact manufacturer and insert requirements. Anodite (PPC).Guidance for specification option: Contact manufacturer and insert requirements. Special (PPC).Guidance for specification option: Contact manufacturer and insert requirements. |
Film thickness (minimum) | 60 microns. |
Texture | Gloss. Guidance for specification option: Available at standard rate for most colours. Matt. Guidance for specification option: Available at standard rate for many colours. Consult manufacturer for details. Satin. Guidance for specification option: Non-standard for most colours; a surcharge will usually apply. Consult manufacturer for details. |
Elbows | Not required. 92.5° elbow. 112.5° elbow. 135° elbow. As drawing ___. Manufacturer guidanceFittings. |
Access pipe | Not required. Rodding pipe. As drawing ___. Contractor's choice. Manufacturer guidanceFittings. |
Pipe connector | Not required. Connector. As drawing ___. Contractor's choice. Manufacturer guidanceFittings. |
Offsets (adjustable) | Not required. Maximum 400 mm offset. Maximum 600 mm offset. Maximum 800 mm offset. Maximum 1000 mm offset. Manufacturer guidanceFittings. |
Brackets | Bracket. Guidance for specification option: Standard round pipe bracket. Stand off bracket. Guidance for specification option: 30 mm offset round pipe bracket. As drawing ___. Contractor's choice. |
Hopper | Not required. As drawing ___. Contractor's choice. Manufacturer guidanceFittings. |
Length | 1 m. 1.5 m. 2 m. Manufacturer guidancePipe length. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | United Kingdom |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 78 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 2 |
Third party certifications
EN 13501-1 (Efectis)
INTERPON-D PPC: EN 13501-1:2018 REACTION TO FIRE CLASSIFICATION
Independent sustainability assessment
CLOSED LOOP RECYCLING SCHEME (CAB)
R EACTION TO FIRE - CLASSIFICATION REPORT EUI-22-000041
SYNTHA PULVIN PPC: EN 13501-1:2018 REACTION TO FIRE CLASSIFICATION
