Analogue Addressable Manual Call Points - Analogue Addressable Manual Call Points
Verified by manufacturer 6 days ago

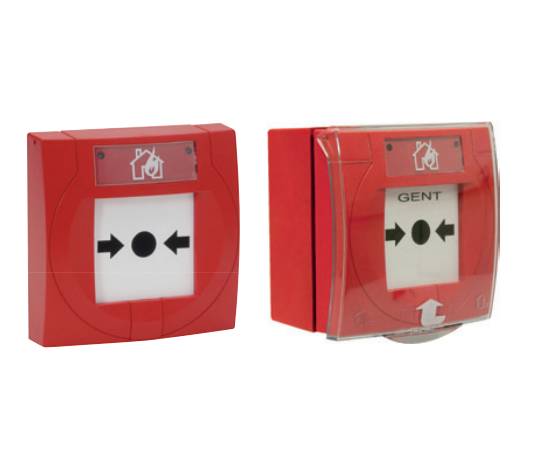

MCP - resettable element and protective cover - IP43
MCP - resettable element and protective cover - IP43
LPCB Certification
Certificate type
Manual call points for the Vigilon and Nano system are easy to install and can be mounted on standard installation back boxes or bespoke red back boxes for surface or semi-recessed mounting.
Application
Manual call points suitable for surface or semi-recessed mounting in internal environments, with an IP67-rated version available for external applications in all building types.
Description
Every manual call point is continuously monitored ensuring a trigger is responded to in less than one second system wide.
The range includes options for glass and resettable elements and lift-up protective covers.
An environmentally protected (EP) version with Ingress protection rating IP67 is also available, complete with resettable element, protective cover and backbox.
Features and benefits:
- Resettable elements.
- Lift up protective covers.
- Weatherproof version (IP67) suitable for external areas.
- Up to 200 per loop.
- Integral short-circuit isolator.
- Surface or semi-flush options.
- Certified to EN 54 part 11 and 17.
General information
Color | Red |
Finish | Smooth |
Material | Plastic |
Shape | Square |
Length | 30 mm Guidance for specification option: EP with protective cover. |
Width | 90 mm |
Height | 90 mm |
Uniclass | |
CAWS | W90/336 Manual call points |
SKU Code | S4-34845 |
Specification data - Manual call points
Classification data | |
Standard | To BS EN 54-11. Manufacturer guidanceTo BS EN 54-17. |
Third-party certification | LPCB-approved. |
Designation | Type B. |
Frangible element | Resettable. |
Integral red visual indicator | Required. |
Environmental category | Indoor. |
Mounting | Surface. Semi-recessed. |
Protective covers | Required. |
Power source | Loop powered. |
Ingress protection | IP43. |
Dimensions | 90 x 90 x 30 mm. |
Weight | 0.11 kg. Manufacturer guidanceApproximate. |
Operating temperature | -25ºC to 70ºC. |
Integral accessories | Not applicable. |
Sustainability data
Material | Plastic |
Product certifications
LPCB Certification

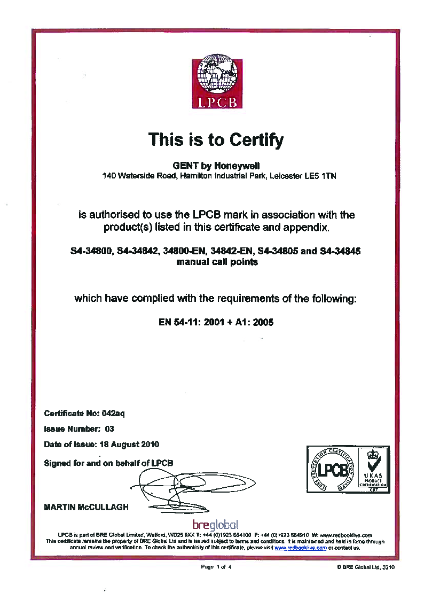

Honeywell Gent S4-34845, S4-34805-EP, S4-34895 EN54-11 Certificate of Approval
Literature
Literature type
Honeywell Gent Manual Call Points

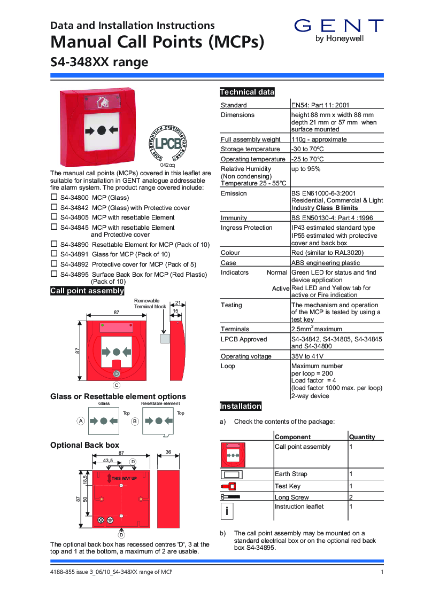

Honeywell Gent S4-348xx Honeywell Gent Manual Call Point Installation Manual
Honeywell Gent Key switch Manual Call Point Installation Instructions

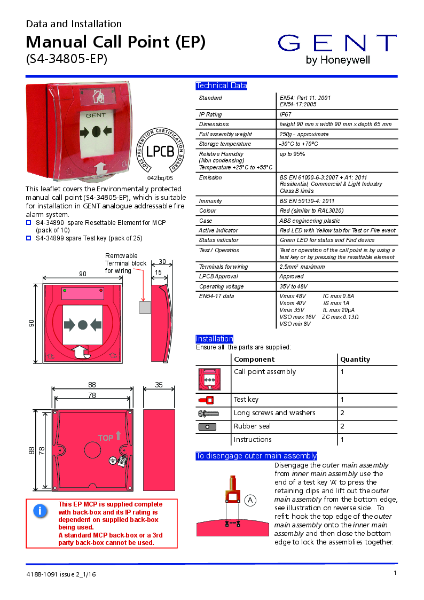

Honeywell Gent S4-34805-EP, Environmentally Protected Manual Call Point Installation Instructions
