Aperto 60 H (Sliding Wall Partition Gear Hardware)

Verified by manufacturer 3 months ago

Hawa Sliding Solutions AG Third party certifications:
  • EPD

    EPD

    Certificate type

Hardware system for stackable wooden partitions up to 60 kg.

Jump to:
+41 44 787 17 17 Website

Application

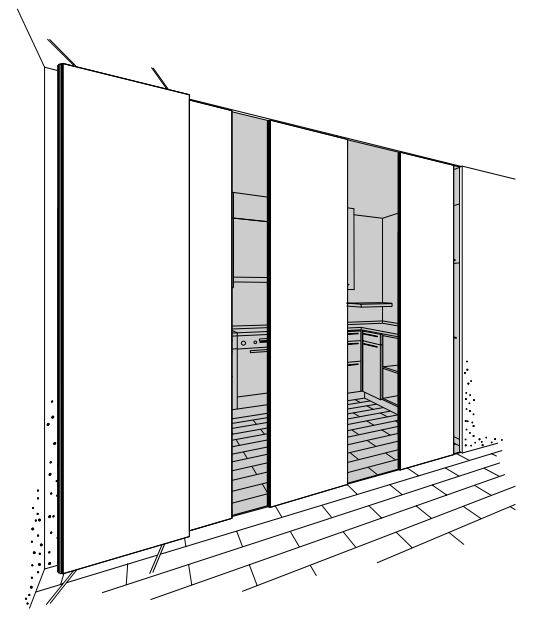

Suitable for room dividers and screens in a wide range of scenarios.

Description

Hardware system for stackable wooden partitions up to 60 kg. Ease of operation using a bottom guide channel, with the option of no channel at lower panel weights.


Features and benefits:

  • Flush closing with small open stacking area requirement.
  • Easy assembly.
  • Vertically adjustable +/-3 mm.
  • Centre stop with progressively adjustable retention spring catch.
  • Comprehensive planning and assembly instructions.
  • Stacking area accommodates up to 9 door panels.
  • Stacking at 90° and parallel to the sliding axis.
  • A single lock secures the entire installation.
  • Installations without a floor track are possible for lower panel weights.
  • Running tracks and bottom guide channels: Aluminium, plain anodized.


Suitable for use with door panels:

  • Panel thickness: 35–50 mm.
  • Minimum panel width: 550 mm.
  • Maximum panel width (stacking 90° to the slide axis): 950 mm.
  • Maximum panel width (stacking parallel to the slide axis): 1500 mm.
  • Maximum panel height: 2600 mm.
  • Maximum panel weight: 60 kg.


Components (Pivot door sets):

  • Suspension profile, 250 mm, aluminium plain anodized, 20 x 25 mm.
  • Cover cap for suspension profile, plastic, anthracite grey RAL 7016.
  • Top pivot bearing for installations with stacking 90° or parallel option.
  • Bottom pivot, fitting with 16 x16 mm bottom guide channel.
  • Bottom pivot with thrust bearing sleeve (D = 20 mm).
  • Matching segment 300 mm, outside or inside option for running track, concealed interior, stacking parallel.
  • Top fixing plate for two single running tracks, aluminium.
  • Fork spanner SW 13 mm.


Components (Sliding door sets):

  • Suspension plate, M8 hanger bolt with integrated assembly wedge.
  • Suspension profile, 250 mm, aluminium plain anodized, 20 x 25 mm.
  • Two-wheeled trolley M8, with plastic-tyred ball bearings.
  • Cover cap for suspension profile, plastic, anthracite grey, RAL 701.
  • Floor guide rattle proof, plastic, 10 mm with suspension plate.
  • Bar bolt lock, 9 mm with square/ hexagon socket and slip-fit rose or guide pin and profile cylinder (with or without guide pin) options.
  • Strike plate for 9 mm deadbolt, chromium-plated steel.
  • Key for bar bolt lock 18833 and 18837.


Components (Stacking area set):

  • Single running track curved segment, 75° inside or outside option, length of leg 580 mm.
  • Single running track curved segment, 90° inside, length of leg 70 mm.
  • Running track end stops.
  • Connecting bolts, set of 6 pieces.
  • Centre stop with progressively adjustable retention spring catch.
  • Top fixing plate for two single or one single running track option, aluminium.
  • End stopper for aluminium bottom guide channel, 16 x 16 mm.
  • End-piece for running track, 150 mm.
  • Bottom guide channel connecting bolts, set of 8 pieces.
  • Curved bottom guide channel 75°, length of leg 500 mm.
  • Hex key 4 mm, length 230 mm.
  • Adjustment tool for eccentric glass retainer.

General information

Color

Grey

Finish

Anodized

Zinc plated

Material

Aluminium

Steel

Warranty description

Two year

Guidance for specification option:

With the exception of parts subject to wear and tear.

Uniclass

Pr_30_36_36_23 Door track and running gearPrimary

CAWS

P21/350 Door track and running gear

P21/10 Door track and running gear

Specification data - Door track and running gear

Form

Aluminum, anodized, pre-drilled, single top running track.

Aluminium, anodized, pre-drilled, pivot door set.

Aluminium, anodized, pre-drilled, stacking area set.

Aluminum, top fixing plate for two single running tracks.

Running track

2500 mm.

3500 mm.

6000 mm.

Cut to size.

Guidance for specification option:

Insert requirements.

Guide track

3500 mm.

Guidance for specification option:

Undrilled, 16 x 16 mm and pre-drilled, 16 x 16 x 3 mm.

6000 mm.

Guidance for specification option:

Pre-drilled, 16 x 16 x 3 mm.

Cut to size.

Guidance for specification option:

Insert requirements.

Material/ Finish

Bottom guide channel: Aluminium, plain anodized, undrilled and pre-drilled, Seal profile: Aluminium, plain anodized, pre-drilled and rubber profile, black.

Guidance for specification option:

Hole positions vary.

Type

Type A: Pivot door set for system with parallel stacking area,
with or without bottom guide channel.

Type B: Pivot door set for system with stacking area at right angle, with bottom guide channel.

Type C: Pivot door set for system with stacking area at right angle, without bottom guide channel.

Type D: Sliding door set for system without lock, with bottom guide channel.

Type E: Sliding door set for system without lock, without bottom guide channel.

Show more

Stacking

With bottom guide channel, stacking parallel.

Without bottom guide channel, stacking parallel.

With bottom guide channel, stacking at right angle.

Without bottom guide channel, stacking at right angle.

Profile set

For concealed interior and installations with stacking parallel to the slide axis, complete.

For concealed interior and installations with stacking 90° to the slide axis, complete.

Manufacturer guidance

  • For fitting an interior concealment cover for open, visible stacking areas.
  • Single running track curved segment, 75° inside, length of leg 580 mm.
  • Single running track 550 mm, for concealed interior, stacking parallel.
  • Single running track 700 mm, for concealed interior, stacking parallel and 90°.
  • Top fixing plate for single running track, aluminium.

Vertical seal profile

Not required.

Guidance for specification option:

With customer-supplied wooden strips.

6000 mm: Aluminium, anodized, pre-drilled, seal profile.

Cut to size: Aluminium, anodized, pre-drilled, seal profile.

20 m roll: Rubber profile, black.

Cut to size: Rubber profile, black.

Manufacturer guidance

  • For deployment between the sliding doors.
  • Door panels must be centred to ensure flush fitting.

Edge trim

Hawa protective edge trim, black, similar RAL 7021.

Hawa protective edge trim, brown, similar RAL 8024.

Hawa protective edge trim, cream-white, similar RAL 9001.

Hawa protective edge trim, beige, similar RAL 1001.

Manufacturer guidance

Available in 5 m and 10 m rolls.

Accessories/ Other requirements

Not required.

Sleeve closure including fitting screw.

Thumbturn, chromium finish for panel thickness 35–40 mm.

Thumbturn, chromium finish for panel thickness 41–57 mm.

Key for bar bolt lock.

Manufacturer guidance

Other accessories and spares are also available, consult manufacturer for details.

Sustainability data

Contains Red List materials

No

Country of material origin

Switzerland

Country of product manufacture

Switzerland

Recyclability

Yes

Third party certifications

Third party certifications

EPD

EPD

Hawa EPD Sliding door gear EN
