Apollo Cycle Shelter - Cycle Parking Products
Verified by manufacturer 1 month ago
BXMW/AP Junior Apollo Cycle Shelter
BXMW/AP Junior Apollo Cycle Shelter
Health & Safety Accreditation
Certificate type
BBA Agrément Certificate
Certificate type
CHAS
Certificate type
Constructionline
Certificate type
FSC
Certificate type
ISO 14001 Environmental Management Systems
Certificate type
ISO 45001 Health and Safety Management
Certificate type
ISO 9001 Quality Management
Certificate type
Rospa Safety Charity
Certificate type
CQMS
Certificate type
smas WORKSAFE
Certificate type
The Apollo Cycle Shelter provides easy-to-access covered cycle parking facilities.
Application
The Apollo Cycle Parking Shelter can be used in a range of locations where a covered cycle parking area is required.
This shelter is suited to schools, colleges and universities; retail areas; commercial sites; healthcare settings; visitor attractions; hospitality venues and more.
Our range of contemporary and traditional cycle shelters are designed to suit any location and fit in with existing surroundings. They create a modern and stylish bike shelter solution to secure cycle storage, whilst still providing weather protection and promoting cycle usage.
The Apollo Cycle Parking Shelter is designed to inspire confidence in users through safe, easy access and inclusive cycle parking facilities. The provision of an Apollo Cycle Shelter contributes towards connected communities. We understand that different sizes and shape of bike, as well as manoeuvrability, needs to be considered in the design and installation of all cycle parking facilities.
We’ve also come up with a range of useful cycle parking accessories too, including a bike pump, repair stand and cycle helmet lockers, to enable as many people as possible to benefit from a healthy transport network.
Description

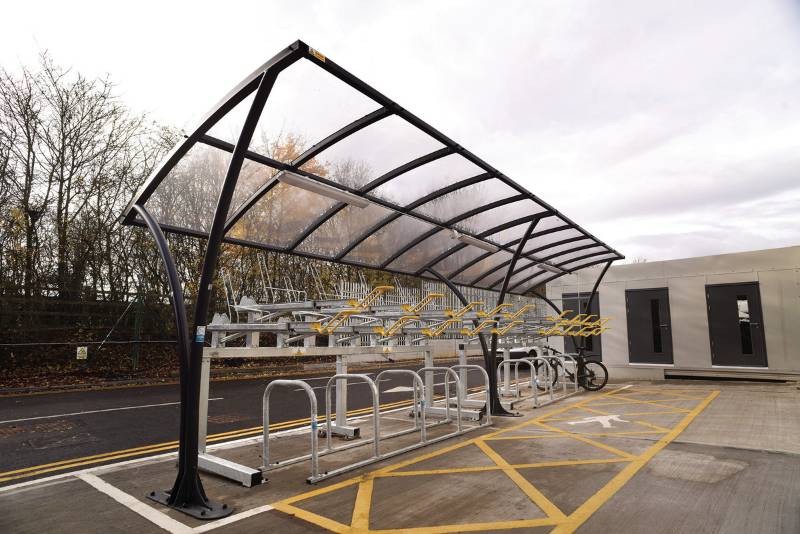

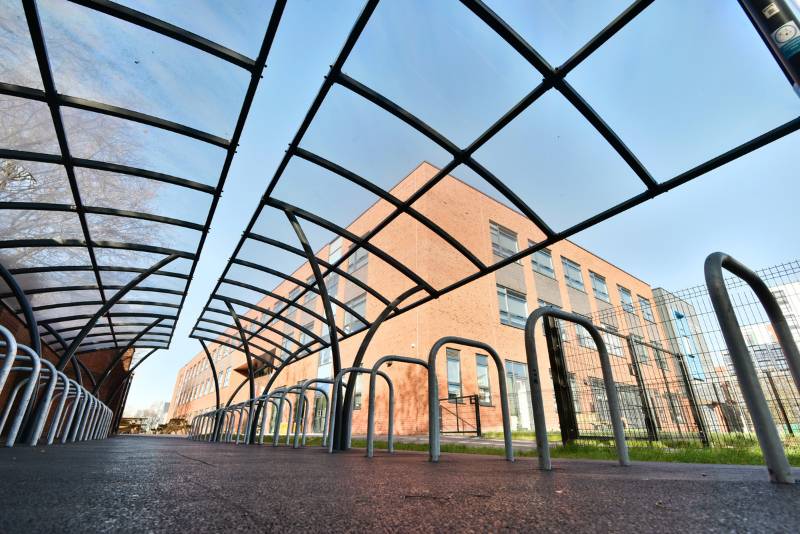

The Apollo Cycle Shelter is a contemporary cycle shelter designed to keep bikes safe and dry when parked up.
The Apollo can work as a single unit but also looks fantastic when one or more units are positioned side by side or back to back for high capacity cycle parking.
This cycle shelter design is also available in a high-rise format. The Apollo Two-Tier Cycle Shelter is manufactured to accommodate two-tier bike racks and stands such as the Easi Riser parking system.
Features and benefits:
- Robust modular construction featuring tubular end frames
- Heavy-duty circular uprights and box section purlins and trimmers, assembled with anti-tamper high strength bolts
- Anti-climb end frames
- Surface mounted baseplates
- Hot dipped galvanized to BS EN ISO 1461
- 5 m ClearView PETg UV roof cladding
- BREEAM compliant configurations.
The Apollo Cycle shelter offers attractive, good value cycle protection.
Capacities:
- 3600 mm - 8 cycles
- 4100 mm - 10 cycles
- 5000 mm - 12 cycles.
A junior version of the Apollo Cycle Shelter is also available, ideal for early years settings and primary schools. Scooter parking racks and stands are also available from Broxap.
Manufactured in the UK, the Apollo Cycle Shelter can be customised and made to order by our teams.
Options:
- HPS Colourcoat steel profile cladding
- Opal roof cladding
- Submerged baseplates
- Powder coating to a wide range of colours
- LED or solar lighting
- Full installation service
- Optional zinc rich primer.
General information
Color | Black Blue Green Grey Red |
Finish | Galvanized Powder-coated Primed |
Material | Polycarbonate Metal |
Shape | Other |
Length | 4120 mm |
Width | 2753 mm |
Height | 2860 mm |
Warranty description | One year |
Uniclass | |
CAWS | B91/340 Cycle shelter B91/330 Canopy B91/385 Shelter |
Specification data - Open-sided shelters
Shelter description | Junior Apollo Cycle Shelter.Junior Apollo Cycle Shelter with extension bays.Guidance for specification option: Insert number of extensions. |
Dimensions | |
Plan size | 3600 x 2753 mm.4100 x 22753 mm.5000 x 2753 mm.6000 x 2753 mm. |
Height | Height (Front): 2860 mm, (Rear): 2150 mm. |
Frame | |
Finish | Galvanized.Galvanized and polyester powder coated.Zinc rich primer.Guidance for specification option: Optional. |
Colour | Cobalt Blue RAL 5013.Goose Grey BS 4800 00-A-05.Holly Green BS 4800 14-C-39.Jet Black RAL 9005.Nimbus Grey BS 4800 10 A 07.Sky Blue RAL 5015.Traffic Red RAL 3020.Traffic White RAL 9016.Traffic Yellow RAL 1023.Anthracite Grey RAL 7016.Manufacturer guidancePowder coated to any standard RAL colour |
Roof covering | 5 mm PETg UV ClearView. |
Accessories | LED or solar lighting.Opal Cladding to Roof. |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Polycarbonate Metal |
Manufacturing plant location |
Third party certifications
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 1 |
Third party certifications
Health & Safety Accreditation
Alcumus Safe Contractor
BBA Agrément Certificate
CE Marking Certification
CHAS
CHAS Elite
Constructionline
Constructionline Gold Member
FSC
FSC® (FSC-C122338) Certification
Health & Safety Accreditation
Insurance
ISO 14001 Environmental Management Systems
ISO14001 Environmental
ISO 45001 Health and Safety Management
ISO45001 Health Safety
ISO 9001 Quality Management
ISO9001 Quality
Rospa Safety Charity
ROSPA
CQMS
CQMS Safety Scheme
smas WORKSAFE
SMAS Worksafe
Literature

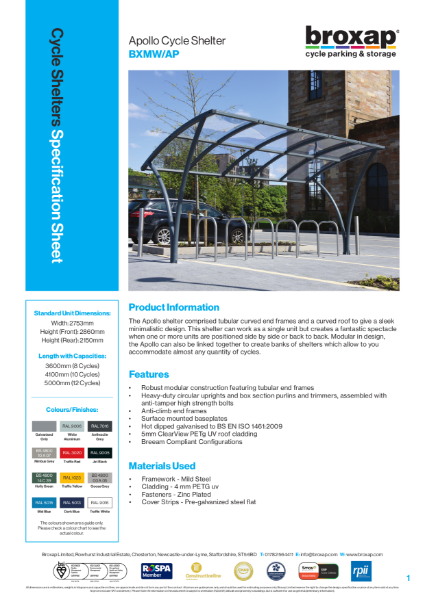

Apollo Cycle Shelter Specification Sheet
