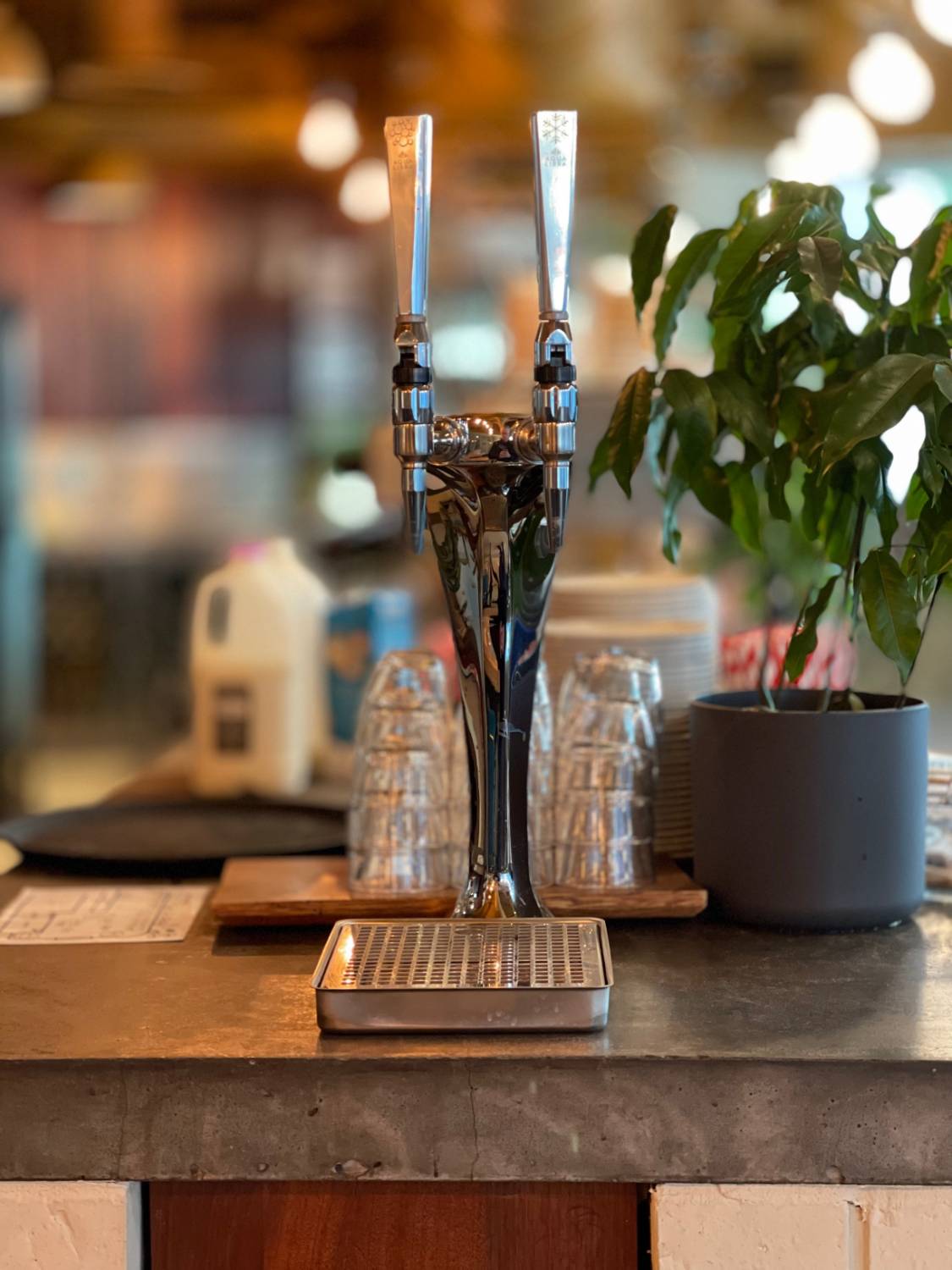

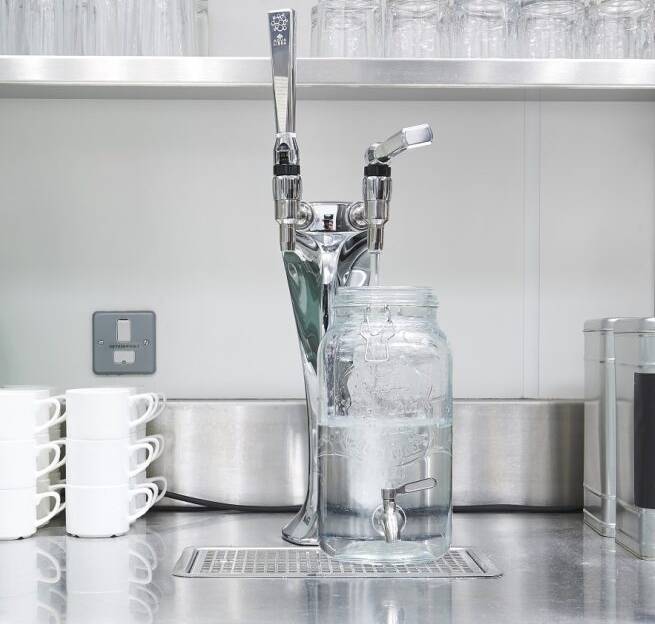

Aqua Bottle Filler - Chilled & Sparkling - Bar style (60 litres) - Mechanical Bottle Filler 60 L
Verified by manufacturer 3 months ago
Designed to dispense high volumes of pure, chilled and sparkling table water, the Aqua Bottling System provides a practical and sustainable alternative to packaged water.
Application
Aqua Bottling Solutions are ideal for hospitality environments including bars, restaurants, cafes, hotels, gyms, conference rooms, wellness & spas, workplace and commercial spaces.
Particularly suitable for settings where high-volume bottle filling is required.
Description
Aqua Libra brings you all the pros of premium packaged water. With none of the financial or environmental cons of premium packaged water.
Features and benefits:
- High-volume performance via ice-bank cooling system – ideal for bottle filling.
- Flexible installation, large rectangular drip tray.
- Service efficiency by filling two bottles or glasses simultaneously.
- Bar-style levers for immediate dispense.
- Fits neatly into a standard 600 mm cupboard.
- Eliminates the need for single-use plastic bottles and the ‘water miles’ associated with deliveries.
- All-inclusive platforms which cover absolutely everything – install, filters and services, full parts and labour guarantee. Purchase option also available.
PREMIUM BRAND. PREMIUM EXPERIENCE.
- Stunning branded glassware
- Expert staff training and serve advice
- Premium point-of-sale and digital menu assets
- Branded sustainability partnerships
General information
Color | Silver |
Finish | Chrome |
Material | Steel |
Shape | Other |
Length | 575 mm |
Width | 565 mm |
Height | 685 mm |
Uniclass | |
CAWS | N12/380 Sinks, taps, traps and wastes N12/380 Sinks, taps, traps and wastes |
Specification data - Water coolers
Third-party certification | ISO 14001. |
Flow rate | 300 L/h. |
Temperature of delivered water | Manufacturer's standard.Guidance for specification option: Consult manufacturer for details. |
Water inlet | 1 No. potable cold mains water supply terminating in a 15 mm Ballofix isolation valve. |
Power supply | 1 No. 50 Hz twin switched 13 A power socket, 220–240 V. |
Water pressure | 2.5 bar (minimum). |
Ventilation | Required. Guidance for specification option: Please visit www.aqualibra.com/resources for all ventilation options. |
Water | Chilled/ sparkling; up to 120 per hour at 500 mL. |
Tank capacity | Up to 60 litres. |
Dimensions | 685 x 565 x 575 mm. Guidance for specification option: H x W x D. |
Safety features | Base cabinet leak detector. |
Components | Watercooler-carbonator, tap. |
Sustainability data
Contains Red List materials | No |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
Aqua Libra Bottler - Alto Taps or Mechanical Tap
Aqua Libra - Product Brochure - 2023
Branded bottles for hospitality
Case studies
Aqua Libra x BRAT
Aqua Libra x Z Hotels
